Add s.svg() schema with themeable color variables

[freekh]

Adds a new schema that stores an svg as a json node tree, so custom icons can be content rather than an opaque binary. Until now an svg could only be an s.image() / s.file() reference to a blob: not recolorable, not validatable against the design system, not diffable.

The point of the feature is that colors are declared as variables rather than baked hexes, so one icon supports currentColor, dark mode, and per-usage overrides.

_{From examples/next: the bookmark on the schema's example colors, the bell inside red text (its line variable maps to currentColor, so the clapper follows), and the check mapped to css custom properties this app owns.}

---

Short form

<ValSvg src={icons.bell} size={32} />

Longer form

// content/icons.val.ts
export const iconSchema = s.svg({
  width: 24,
  height: 24,
  aspectRatio: "1:1",
  variables: {
    brand: { value: "#0055ff", match: ["#0055FF", "#0050f0"] },
    line: { value: "currentColor" },
    surface: { value: "#ffffff", match: ["#fff", "#fefefe"] },
  },
  // "forbid" (default) | "allow" | string[]
  literals: "forbid",
});

export const schema = s.record(iconSchema);

export default c.define("/content/icons.val.ts", schema, {
  bell: {
    viewBox: "0 0 24 24",
    width: 24,
    height: 24,
    children: [
      {
        tag: "path",
        attrs: { d: "M12 2.5A5.5 5.5 0 0 0 …", fill: { var: "brand" } },
        children: [],
      },
      {
        tag: "path",
        attrs: {
          d: "M9.6 18.5a2.4 2.4 0 0 0 4.8 0",
          stroke: { var: "line" },
          "stroke-width": 1.6,
          fill: "none",
        },
        children: [],
      },
    ],
  },
});

<ValSvg
  src={icons.bell}
  size={32}
  title="Notifications"
  vars={{
    brand: "var(--brand-500)",
    line: "currentColor",
    surface: null, // resolves from --val-svg-surface in css
  }}
/>

vars is exhaustive, like ValRichText's theme

vars maps each declared variable to the color that actually renders. It is optional, but if given it must cover every variable — so adding one to the schema is a compile error at every call site until someone revisits it. Same contract, and the same reason, as theme:

app/page.tsx(65,13): error TS2741: Property 'surface' is missing in type
  '{ brand: string; line: string; }' but required in type 'SvgVars<…>'.

null means "leave it to css" — that attribute becomes var(--val-svg-<name>, currentColor). Omitting vars does the same for every variable, and svgVarsCss(iconSchema) writes the schema's example colors into those properties, so a [data-theme="dark"] block retimes every icon with no React involved.

The value on a variable is an example: it drives the editor preview and the import match. Nothing is mirrored into the source — the palette lives only in the schema — so there is nothing that can drift and no new ValidationFix.

Raw colors are type-checked as well as validated. With the default literals: "forbid", fill: "#ff0000" is a TypeScript error, and the validator reports it with a source location:

 ✘  content/icons.val.ts:50:17
    Raw color '#ff0000' is not allowed. Use one of the declared variables: brand, line, surface

    50 |           fill: "#ff0000",
       |                 ^^^^^^^^^

Editor

Icons are read far more often than they are replaced, so the field is read-optimized: the tile is the control, and it is the only thing on screen. Drop an svg on it, paste markup into it, or click it to pick a file. No textarea, no button row; the markup sits behind an accordion.

Light	Dark

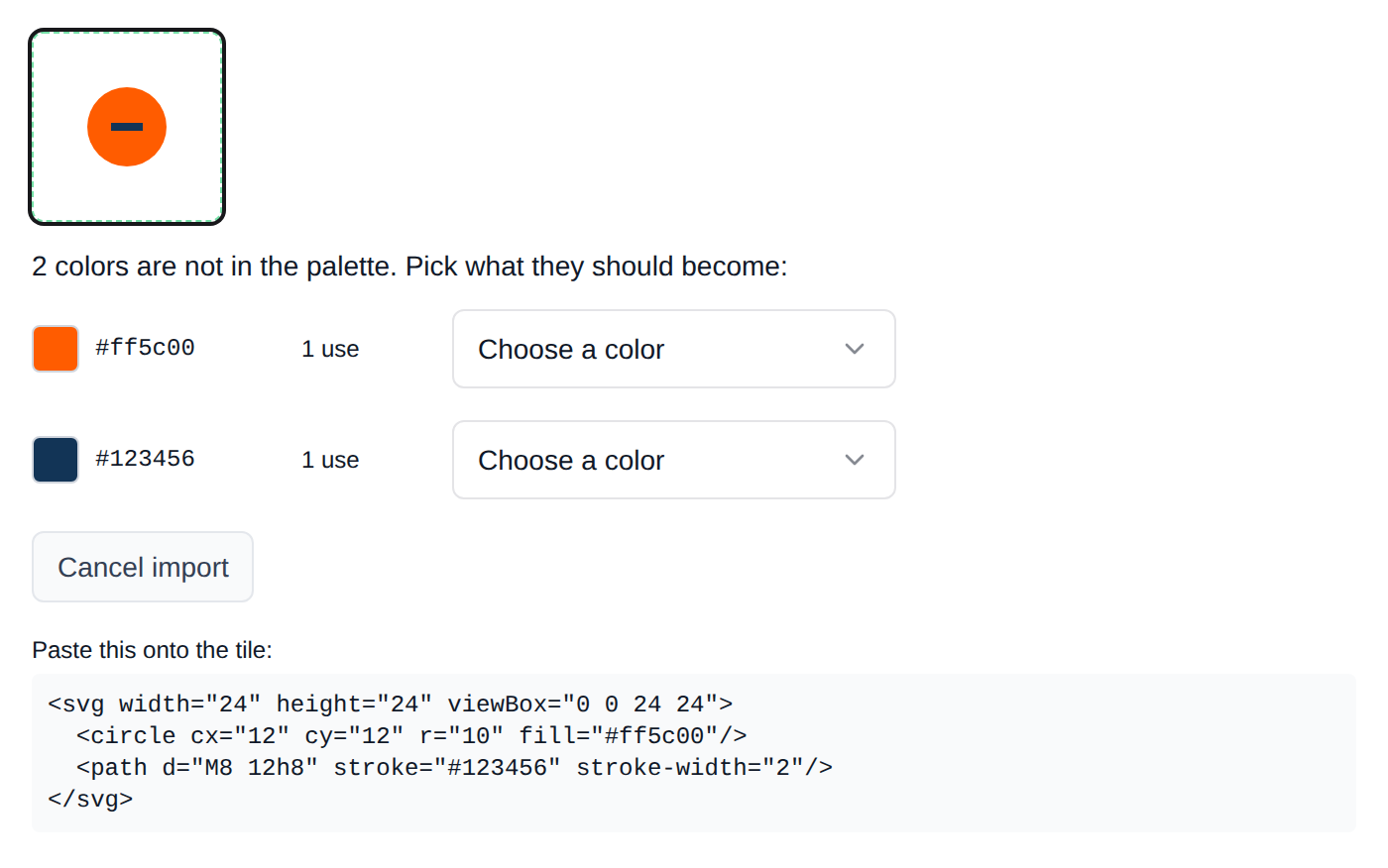

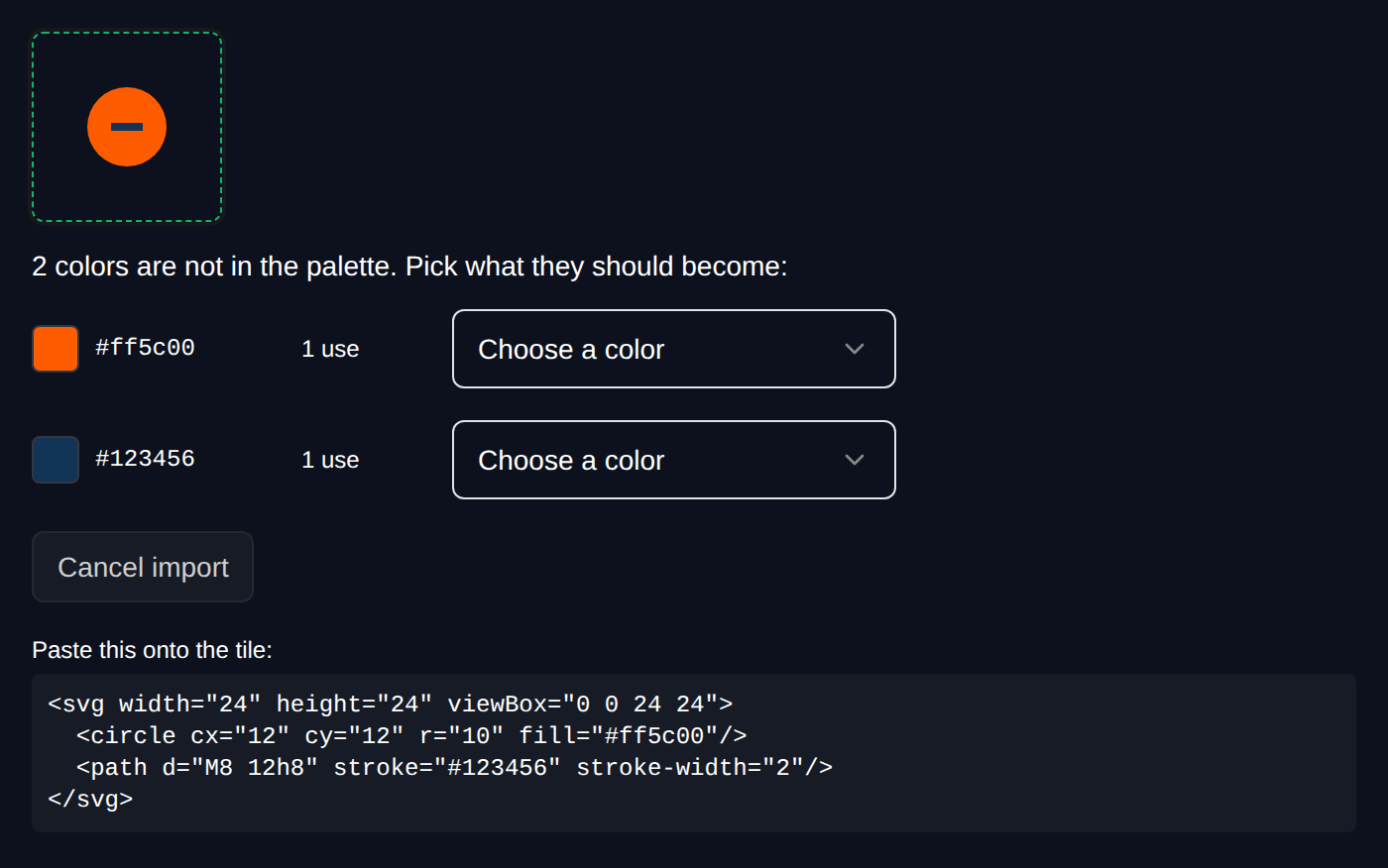

Controls appear only when an import needs a decision. Colors are matched onto the palette by exact value or by a variable's match aliases; tolerance opts a variable into fuzzy matching. Nothing is snapped to a nearby variable otherwise — a brand color that is quietly rewritten is worse than one you are asked about.

While mapping, the tile previews the icon in its original colors, so you can see what you dropped and watch it move onto the palette as you pick. It is not committed until every color has somewhere to go — a half-mapped icon would silently lose fills.

Light	Dark

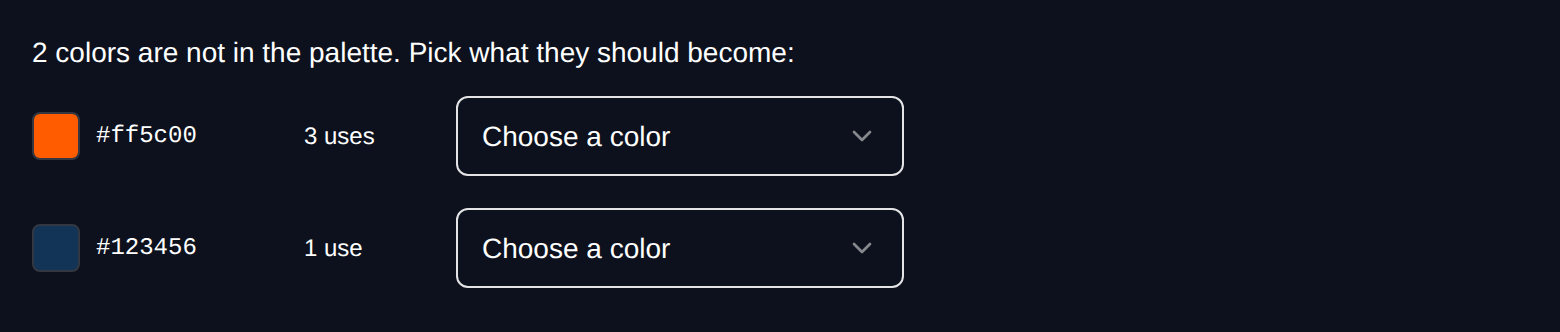

Empty state, and the mapper on its own:

Empty	Mapper

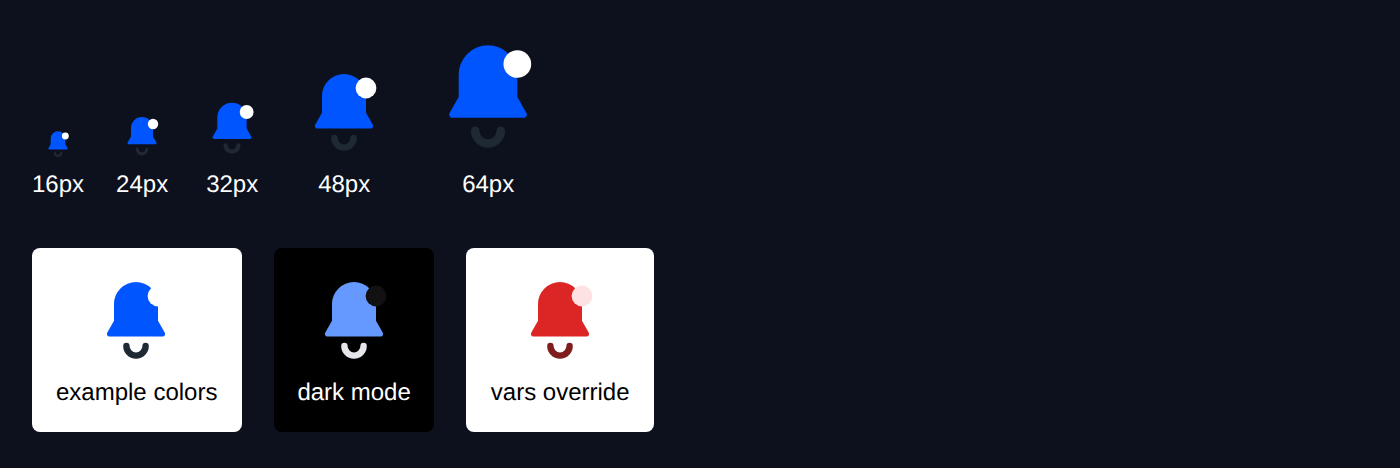

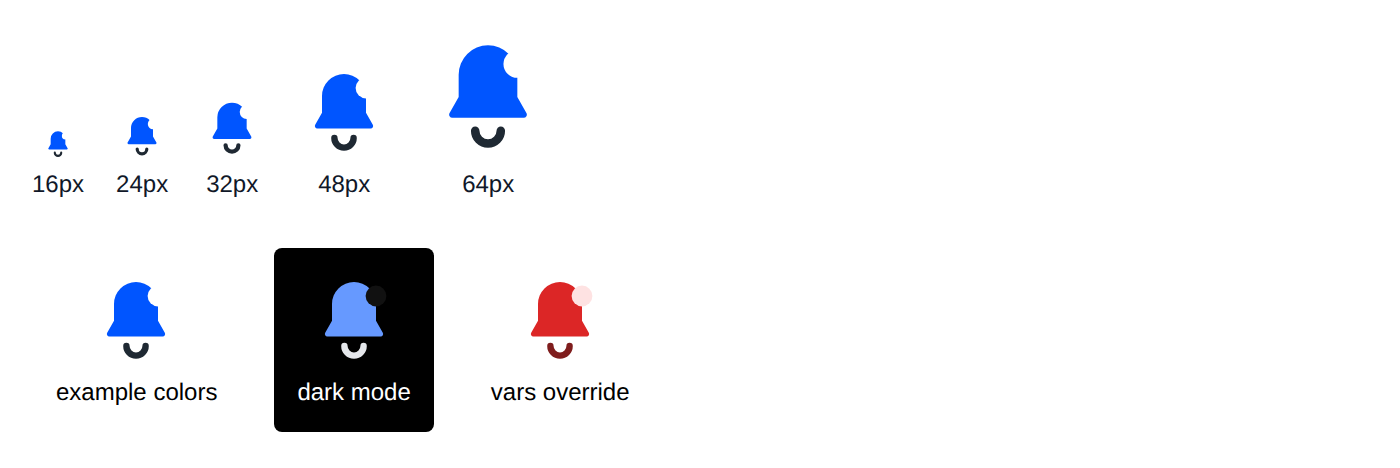

One source, three palettes, five sizes:

Light	Dark

Stories: packages/ui/spa/components/fields/SvgField.stories.tsx (Fields/SvgField).

Docs

• packages/next/README.md — a Svg section following the RichText section's shape: schema, initializing content, rendering, the vars note, editing, the type, and a full-custom renderer.
• .agent/rules.md (shared by CLAUDE.md, the cursor rules and the copilot instructions, which all symlink to it) — a "Working with Svg" section covering the invariants that are easy to break, plus s.svg() in the type-hierarchy tables.

---

Decisions worth reviewing

Svg is excluded from stega encoding entirely. Every string in an svg (d, viewBox, points, transform) is machine parsed, so injecting invisible characters would corrupt the icon. That leaves attrs() with nothing to find, so the source path is attached as an ordinary serializable field (SVG_VAL_PATH) which ValSvg turns into data-val-path. A symbol would be cleaner json but would not survive RSC serialization. Tests assert every string round-trips byte-identical.

ValSvg builds React elements tag by tag — no dangerouslySetInnerHTML anywhere. Safety is therefore entirely the allowlist, and it is a strict per-tag allowlist of exact attribute names, not an on* denylist: React renders unknown attributes on host elements verbatim, and onload does fire on svg elements. Rejected: script, style (svg <style> is not scoped — it leaks to the whole document), foreignObject, a, use, image, all animation and filter elements; and the style / id / class / href / xlink:* / data-* attributes. After the enum-typed attributes, d, points, transform and stroke-dasharray are the only free-form strings left, and each is regex constrained and length capped.

The parser is hand rolled and dependency free (packages/shared/src/internal/svg/). @valbuild/shared ships into every user's server bundle, and svg-as-xml is a small grammar. Entity declarations and doctypes with an internal subset are rejected outright (XXE / billion laughs). Parser output is filtered through the allowlist before anything else sees it; the parser is not treated as a security boundary. DOMParser is avoided so the same code runs in jest, the CLI and node:vm.

Gradients are out of scope for now. Adding them later needs a third attribute value kind for url(#…) and per-instance id namespacing via useId() — without that, two icons on one page that both contain id="a" silently corrupt each other. Additive, not breaking.

@types/react-dom added to packages/react for the render tests. It resolves to the 18.2.17 already used by next / ui / examples, so there is still exactly one copy of @types/react and the duplicate-copy JSX hazard is not reintroduced.

.github/pr-assets/ is a separate commit and can be dropped before merge; it exists only so GitHub can render the screenshots above.

Verification

• pnpm run lint ✅
• pnpm -w run format ✅
• pnpm run -r typecheck ✅ — this is what proves the ~18 never-checked dispatch sites are covered
• pnpm test ✅ — 1165 tests, 99 suites
• pnpm run build ✅
• cd examples/next && pnpm run build ✅
• pnpm exec tsx src/cli.ts validate --root ../../examples/next and node bin.js validate … → content/icons.val.ts valid. This is the only path that exercises createService → loadValModules, i.e. evaluating *.val.ts in the node:vm sandbox. The 2 remaining errors in the example app are the pre-existing missing-image / stale-metadata ones.

New tests: packages/core/src/schema/svg.test.ts; 20 rows in validation.test.ts (including onload rejected rather than silently dropped); cases in describe / hidden / readonly; 36 in packages/shared/src/internal/svg/parseSvg.test.ts (round-trip, color matching, and a rejection table for XXE, mismatched tags, <script>, onload=, xlink:href, oversized d); 13 in packages/react/src/internal/ValSvg.test.tsx (variable resolution, css fallback, size precedence, title/aria, data-val-path, plus a type-level check that vars stays exhaustive); and 5 in stegaEncode.test.ts.

One bug the round-trip test caught during development: parseSvg could not read back the var(--val-svg-*) form that svgToString emits, so "copy as svg" then re-paste in the editor would have dropped every variable. Fixed and covered.
