Hytale Auth Server

Authentication server for custom Hytale F2P setup.

This server handles authentication requests from both the game client (via the F2P launcher) and dedicated game servers. It implements the Hytale authentication protocol with Ed25519 JWT signing.

Warning: This is an experimental project for educational purposes. Use at your own risk.

Screenshots

Click to view screenshots

Admin Dashboard

Avatar Viewer

Character Customizer

Head Embed Test

Video Demo

Live Demo: Avatar Customizer

Public Test Server

You don't need to run your own auth server! A public test server is available at sanasol.ws and is used by default in all related projects.

Quick Test (No Setup Required)

1. Download the pre-built launcher: Hytale F2P Launcher v2.0.2b
2. Connect to the public game server: ht.vboro.de:5720

That's it! No auth server or game server setup needed for testing.

• All cosmetics unlocked - full access to character customization
• Cosmetics saved by username - your skin/cosmetic choices persist between sessions

Note: There is no password authentication - anyone can use any username. If you use a username someone else has used, you'll see their cosmetics. Use a unique username for testing.

Build from Source

Alternatively, use the Hytale F2P Launcher source and hytale-server-docker with default settings - they're pre-configured to use sanasol.ws with dual auth support (both official and F2P players can play together).

Note: The public server is for testing purposes. For production use or privacy, set up your own server using this repository.

Related Projects

This is part of a complete Hytale F2P setup:

Project	Description
hytale-auth-server	Authentication server + DualAuthPatcher (this repo)
Hytale F2P Launcher	Game launcher with dual auth support
hytale-server-docker	Dedicated server Docker image

DualAuthPatcher

This repository contains the authoritative source for DualAuthPatcher.java - the bytecode patcher that enables dual authentication on Hytale servers.

• Location: patcher/
• Documentation: patcher/README.md
• Other projects (hytale-server-docker, Hytale-F2P) download from here

Requirements (for running your own server)

Skip this section if you're using the public sanasol.ws test server.

• Docker and Docker Compose
• A domain with 4-16 characters
  • Default: auth.sanasol.ws (14 chars, public test server)
  • Examples: auth.example.com, my.server.io, game.host.net
• DNS records pointing to your server
• (Optional) Assets.zip from the game for cosmetics

Note: Both client and server patchers support variable-length domains from 4 to 16 characters. The unified endpoint approach routes all traffic to https://{domain} (no subdomains needed).

Quick Start (Own Server)

1. Clone the repository

git clone https://github.com/sanasol/hytale-auth-server.git
cd hytale-auth-server

2. Configure your domain

Edit compose.yaml and set your domain:

environment:
  DOMAIN: "auth.yourdomain.com"  # Your auth domain (4-16 characters)
labels:
  - "traefik.http.routers.auth.rule=Host(`auth.yourdomain.com`)"

3. Set up DNS records

Create a DNS A record pointing to your server IP:

• auth.yourdomain.com (or your chosen domain)

Note: The unified endpoint approach uses a single domain. No need for multiple subdomains (sessions., account-data., telemetry.) - the auth server handles all routes on one domain.

4. (Optional) Add Assets.zip for cosmetics

Copy Assets.zip from your Hytale game installation to enable all cosmetics:

cp /path/to/Hytale/Assets.zip ./assets/

The Assets.zip is typically found in:

• Windows: %LOCALAPPDATA%\Hytale\release\package\game\latest\Client\Assets.zip
• macOS: ~/Library/Application Support/Hytale/release/package/game/latest/Client/Assets.zip

5. Start the server

docker compose up -d

6. Verify it's working

curl https://sessions.yourdomain/health
# Should return: {"status":"ok","server":"hytale-auth","domain":"yourdomain"}

Configuration

Environment Variables

Variable	Default	Description
DOMAIN	sanasol.ws	Your domain (4-16 characters)
PORT	3000	Server port
DATA_DIR	/app/data	Directory for persistent data
ASSETS_PATH	/app/assets/Assets.zip	Path to Assets.zip for cosmetics
REDIS_URL	redis://localhost:6379	Redis/Kvrocks connection URL
ADMIN_PASSWORD	changeme	Password for admin dashboard

Persistent Data

The server stores the following data in the data/ directory:

• jwt_keys.json - Ed25519 key pair for JWT signing (auto-generated)
• user_data.json - User skin/cosmetic preferences
• head-cache/ - Cached head embed images

Important: Keep jwt_keys.json backed up! If you lose it, all existing tokens become invalid.

Features

Admin Dashboard

Access at https://sessions.yourdomain/admin (requires ADMIN_PASSWORD).

• View active sessions and connected players
• Monitor server statistics
• Set custom display names for game servers
• View player avatars with embedded head previews

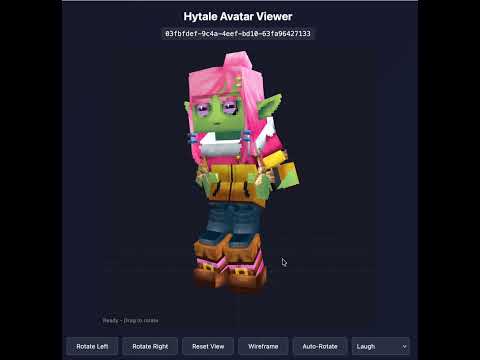

Avatar Viewer

View any user's avatar in 3D with animations:

https://sessions.yourdomain/avatar/{uuid}

Features:

• 3D character rendering from .blockymodel files
• Animation playback (Idle, Walk, Run, Jump, Emotes, etc.)
• Skin tone and body type support
• Cosmetic parts rendering (hair, clothes, accessories)

Avatar Customizer

Interactive character customization:

https://sessions.yourdomain/customizer/{uuid}

Features:

• Browse all cosmetic categories (Head, Torso, Arms, Legs, Capes)
• Live preview of cosmetic changes
• Color variations for supported items
• Animation preview

Head Embed

Embeddable player head images for use in admin panels, forums, etc:

https://sessions.yourdomain/avatar/{uuid}/head?bg=black

Query parameters:

• bg - Background color: transparent, white, black, or hex color (e.g., #ff0000)
• nocache - Set to 1 to bypass cache

Features:

• Server-side caching with disk persistence
• Proper HTTP caching headers (ETag, Last-Modified)
• Multiple background color options

Test page available at: https://sessions.yourdomain/test/head

Head Pre-render Worker

A background service that pre-renders avatar heads for all active players using headless Chrome with Puppeteer. This ensures head images are cached before users request them, improving load times on the admin dashboard.

Features:

• Runs in a separate Docker container
• Uses WebGL software rendering (SwiftShader) - no GPU required
• Processes players in batches to avoid overloading the server
• Shares cache directory with main auth server

Configuration (environment variables):

Variable	Default	Description
AUTH_SERVER_URL	http://hytale-auth:3000	Auth server URL for rendering
REDIS_URL	redis://kvrocks:6666	Redis/Kvrocks connection
HEAD_CACHE_DIR	/app/data/head-cache	Cache directory path
BG_COLOR	black	Background color for renders
BATCH_SIZE	5	Heads to render per batch
LOOP_INTERVAL	60000	Milliseconds between render loops

Endpoints

Click to view all endpoints

Authentication (Client → Auth Server)

Endpoint	Method	Description
/.well-known/jwks.json	GET	JWKS for JWT signature verification
/game-session/new	POST	Create new game session
/game-session/child	POST	Create child session (used by launcher)
/game-session/refresh	POST	Refresh session tokens
/game-session	DELETE	Delete/logout session

Server Join Flow (Client ↔ Server ↔ Auth Server)

Endpoint	Method	Description
/game-session/authorize	POST	Authorization grant for server connection
/server-join/auth-grant	POST	Alias for authorization grant
/server-join/auth-token	POST	Token exchange with certificate binding
/game-session/exchange	POST	Alias for token exchange

Account Data

Endpoint	Method	Description
/my-account/game-profile	GET/POST	Get/update user profile
/my-account/cosmetics	GET	Get unlocked cosmetics
/my-account/skin	POST	Save user skin preferences
/my-account/get-launcher-data	GET	Get launcher-specific data
/my-account/get-profiles	GET	Get user profiles

Profile Lookup (Game Server → Auth Server)

Used by game servers for commands like /ban, /kick, etc.

Endpoint	Method	Description
/profile/uuid/{uuid}	GET	Look up player profile by UUID
/profile/username/{username}	GET	Look up player profile by username

Headers for username lookup:

• X-Server-Audience - Server audience ID (returns players on that server first)

Avatar & Cosmetics

Endpoint	Method	Description
/avatar/{uuid}	GET	3D avatar viewer page
/avatar/{uuid}/head	GET	Embeddable head image (PNG)
/avatar/{uuid}/model	GET	Avatar model data API
/customizer/{uuid}	GET	Avatar customizer UI
/cosmetics/list	GET	List all available cosmetics
/cosmetics/item/{category}/{itemId}	GET	Get specific cosmetic item
/asset/{path}	GET	Serve assets from Assets.zip
/test/head	GET	Head embed test page

Admin Dashboard (Protected)

Requires ADMIN_PASSWORD environment variable. Token stored in browser localStorage.

Endpoint	Method	Description
/admin	GET	Admin dashboard HTML page
/admin/login	POST	Login with password, returns token
/admin/verify	GET	Verify if token is valid
/admin/stats	GET	Lightweight server statistics
/admin/servers	GET	Paginated server list with players
/admin/sessions	GET	All active sessions
/admin/server-name	POST	Set display name for a server

Protected endpoints require header: X-Admin-Token: {token}

Query params for /admin/servers:

• page - Page number (default: 1)
• limit - Items per page (default: 10, max: 50)

Utility

Endpoint	Method	Description
/health	GET	Health check
/bugs/create	POST	Bug report endpoint (no-op)
/feedback/create	POST	Feedback endpoint (no-op)

Local Development

For local testing without HTTPS:

docker compose -f compose.simple.yaml up -d

This exposes the server on http://localhost:3000.

Complete Setup Guide

Running Everything Together

1. Start the auth server (this repo):

   cd hytale-auth-server
   docker compose up -d

2. Start a dedicated game server (hytale-server-docker):

   cd hytale-server-docker
   # Edit compose.yaml to set HYTALE_AUTH_DOMAIN to your domain
   docker compose up -d

3. Launch the game (Hytale F2P Launcher):

   • Download from releases
   • Or build from source:

   git clone https://github.com/amiayweb/Hytale-F2P.git
   cd Hytale-F2P
   npm install
   npm start

The launcher will:

1. Patch the game client to use your domain instead of hytale.com
2. Fetch authentication tokens from your auth server
3. Launch the game with proper authentication

Troubleshooting

"Domain length mismatch"

Your domain must be 4-16 characters. The patchers support variable-length domains within this range.

"JWT signature verification failed"

Make sure the auth server's Ed25519 keys are persisted. If the keys change, existing tokens become invalid. Check that data/jwt_keys.json exists and is not being recreated on each restart.

Cosmetics not loading

1. Check that Assets.zip is in the assets/ directory
2. Check the server logs for cosmetics loading messages
3. Verify the zip file is valid: unzip -l assets/Assets.zip | grep Cosmetics

Technical Notes

Asset Format (Research)

The viewer parses Hytale's asset format:

• .blockymodel - 3D model definitions with bone hierarchy
• .blockyanim - Animation keyframe data
• Greyscale textures with gradient-based coloring
• Character cosmetic configuration from CharacterCreator/*.json

This is a reverse-engineering research project to understand Hytale's asset format.

License

MIT License - See LICENSE
