heatgraph

A terminal heat-map renderer for people who actually like their terminal.

Overview

heatgraph is a lightweight, zero-dependency Python utility that turns matrix-style data into ANSI heat-maps. It lives at the end of your unix pipe — because why fire up a Jupyter notebook when you can grep some numbers and pipe them into a beautiful grid of colored blocks?

• stdin → matrix data → colored ASCII heatmap
• zero runtime dependencies
• fast, composable, and script-friendly

Quick start

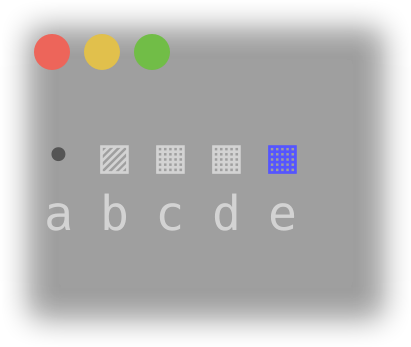

If you have a JSON object with a values array, you're already halfway there:

echo '{"values":[[1,2,3,4,5]],"cols":["a","b","c","d","e"]}' | uvx heatgraph

Examples

The helper commands live in the same package but under a different entry point. With uvx, that means using --from heatgraph:

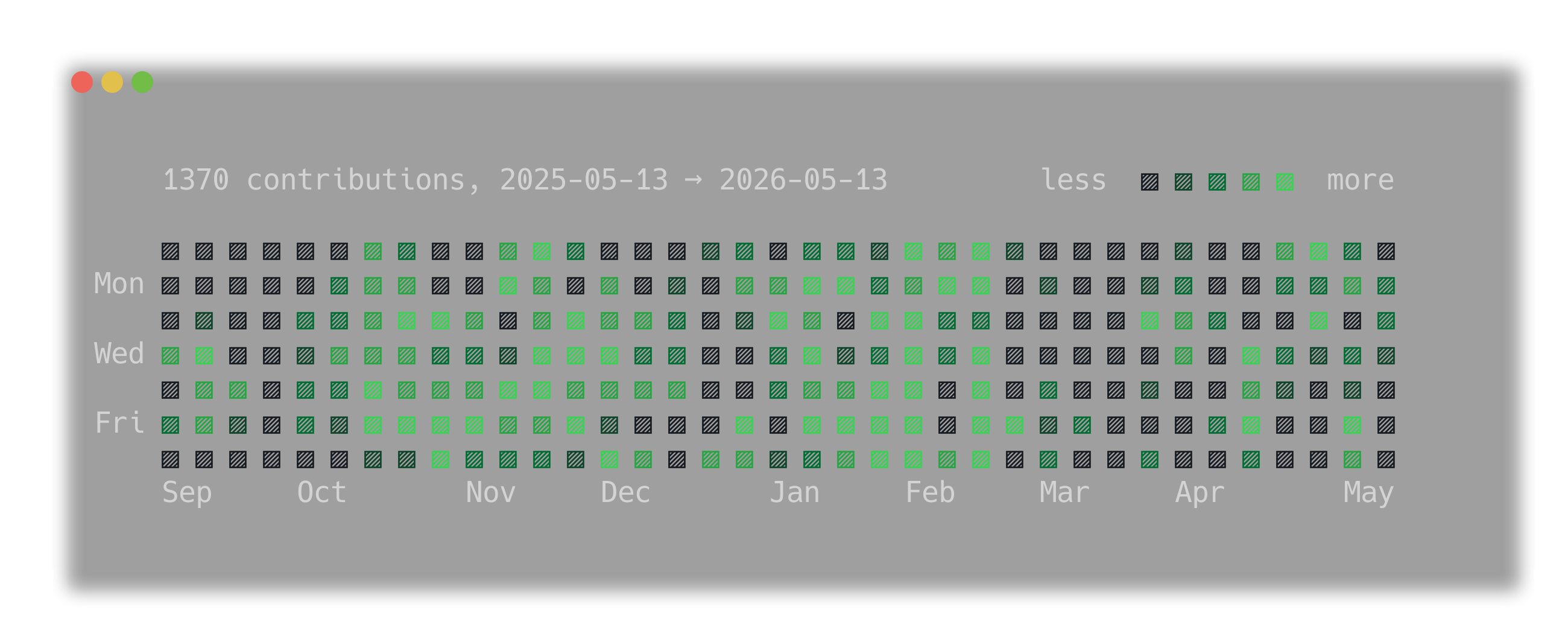

Visualize your GitHub contributions

uvx --from heatgraph heatgraph-helpers gh-contributions <username> --theme github-dark

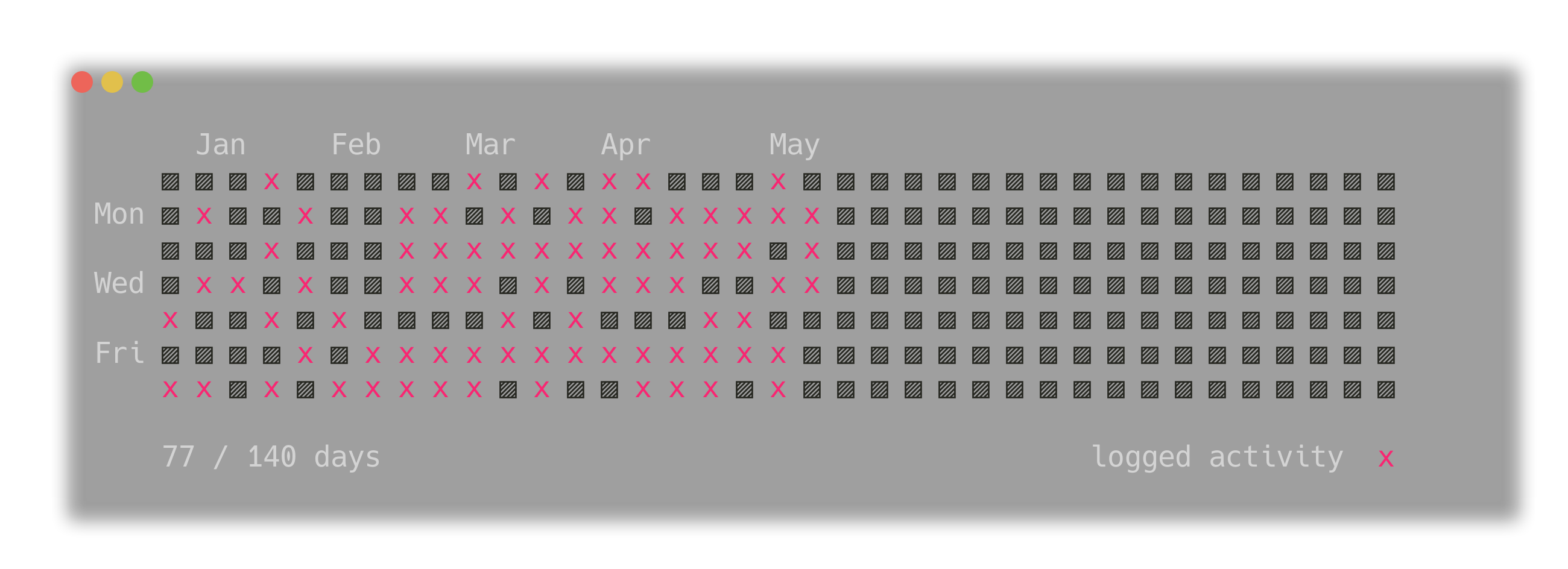

Track a workout routine

uvx --from heatgraph heatgraph-helpers habit-tracker examples/workout-log.md --simple

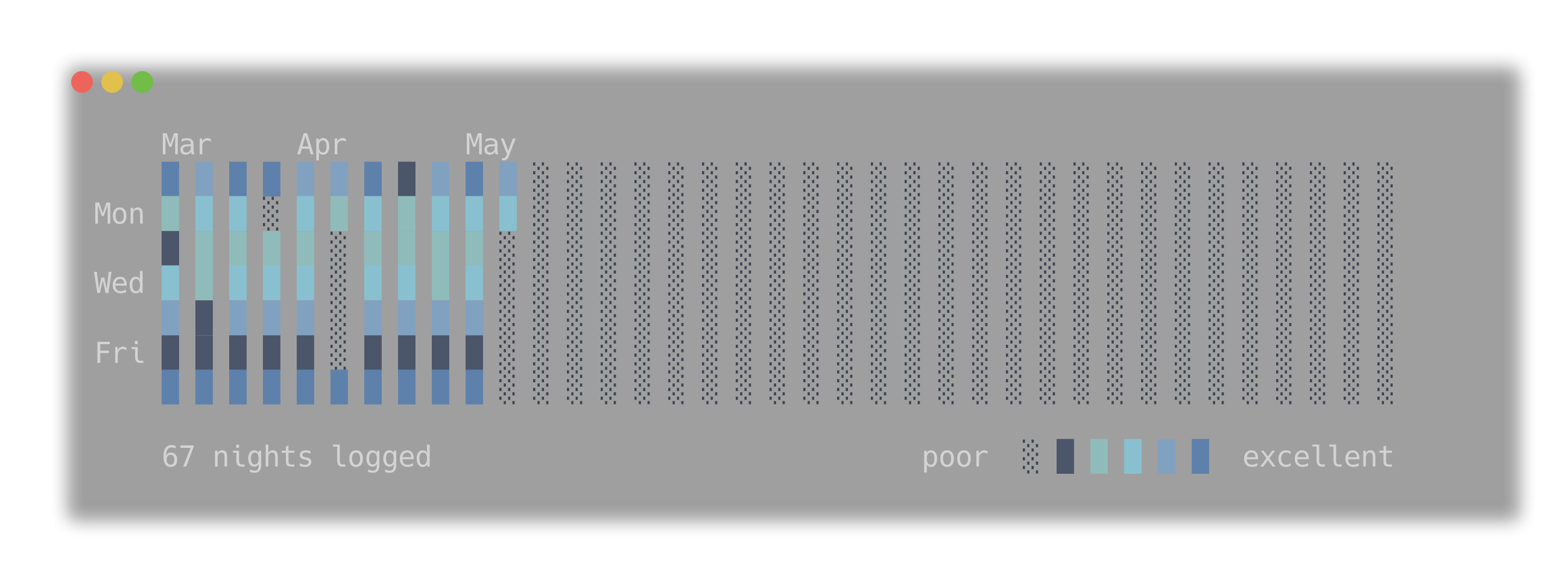

Track your sleep quality

uvx --from heatgraph heatgraph-helpers habit-tracker examples/sleep.log \
  --theme nord --glyphs terminal --normalize quantile \
  --message '[COUNT] nights logged' \
  --legend 'poor  [GRADIENT]  excellent'

Live data with --follow

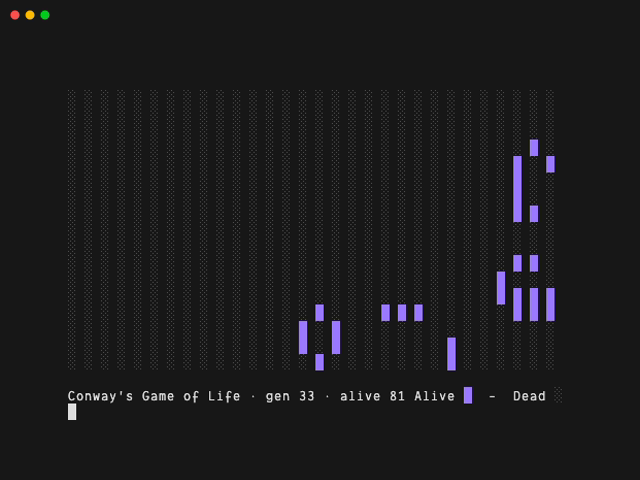

# Conway's Game of Life as the "live data"
uvx --from heatgraph heatgraph-helpers game-of-life | uvx heatgraph --follow --glyphs terminal

Features

• Zero dependencies. Pure Python 3.12+. No pip install nightmares.
• Streaming. --follow reads NDJSON and redraws frames in place — no scrollback flood.
• Quantile binning. --normalize quantile for the GitHub-contributions look: zero is its own bucket, the rest binned by quantile.
• Gamma correction. --gamma to fine-tune the pop of your colors.
• Themes. A curated collection so your heatgraphs don't look straight out of 1984. Unless that's the brief.

Docs

Doc	When to read it
docs/CONFIGURATION.md	All CLI flags, precedence rules, where settings come from.
docs/CUSTOMIZING.md	Themes, glyph presets, headers, building your own look.
docs/SCHEMA.md	The matrix-doc JSON contract and the streaming/NDJSON protocol.
docs/CONCEPTS.md	Shared vocabulary — bucket, palette, glyph, direction, and friends.

License

GPLv3. Keep it free, keep it open, and for the love of god, don't wrap this in a proprietary electron app.
