PSBT Tests

Jump to bottom
bitcoincoretech edited this page Nov 19, 2020 · 43 revisions

Table of Contents

The below test case is described in the BIP 174 Test Vectors.

The blockquoted text is the original BIP 174 text.

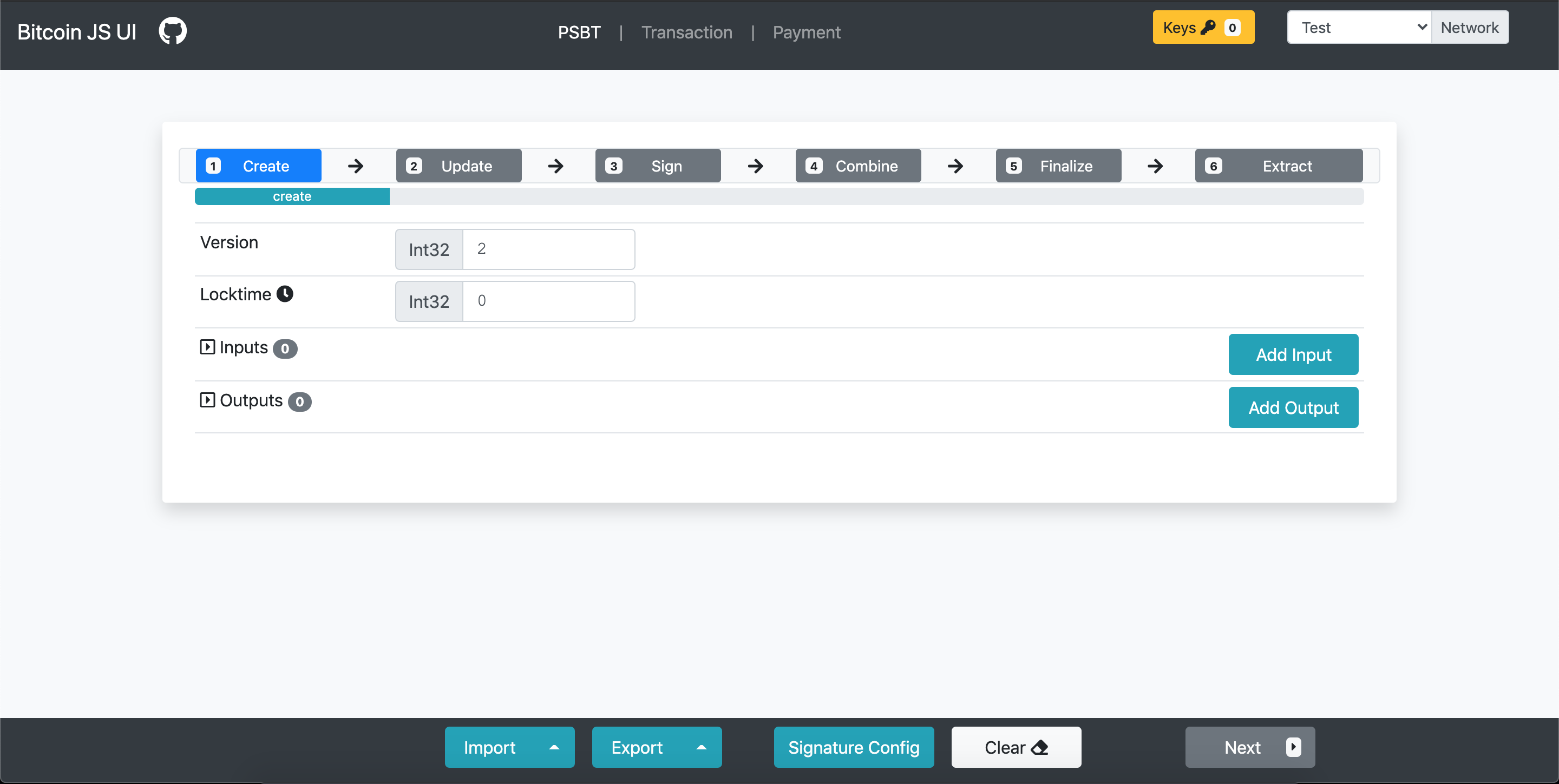

PSBT UI Start Page


Add master private key

PSBT 174 Test Vector:

The private keys in the tests below are derived from the following master private key:

  • Extended Private Key:
    tprv8ZgxMBicQKsPd9TeAdPADNnSyH9SSUUbTVeFszDE23Ki6TBB5nCefAdHkK8Fm3qMQR6sHwA56zqRmKmxnHk37JkiFzvncDqoKmPWubu7hDF

Steps

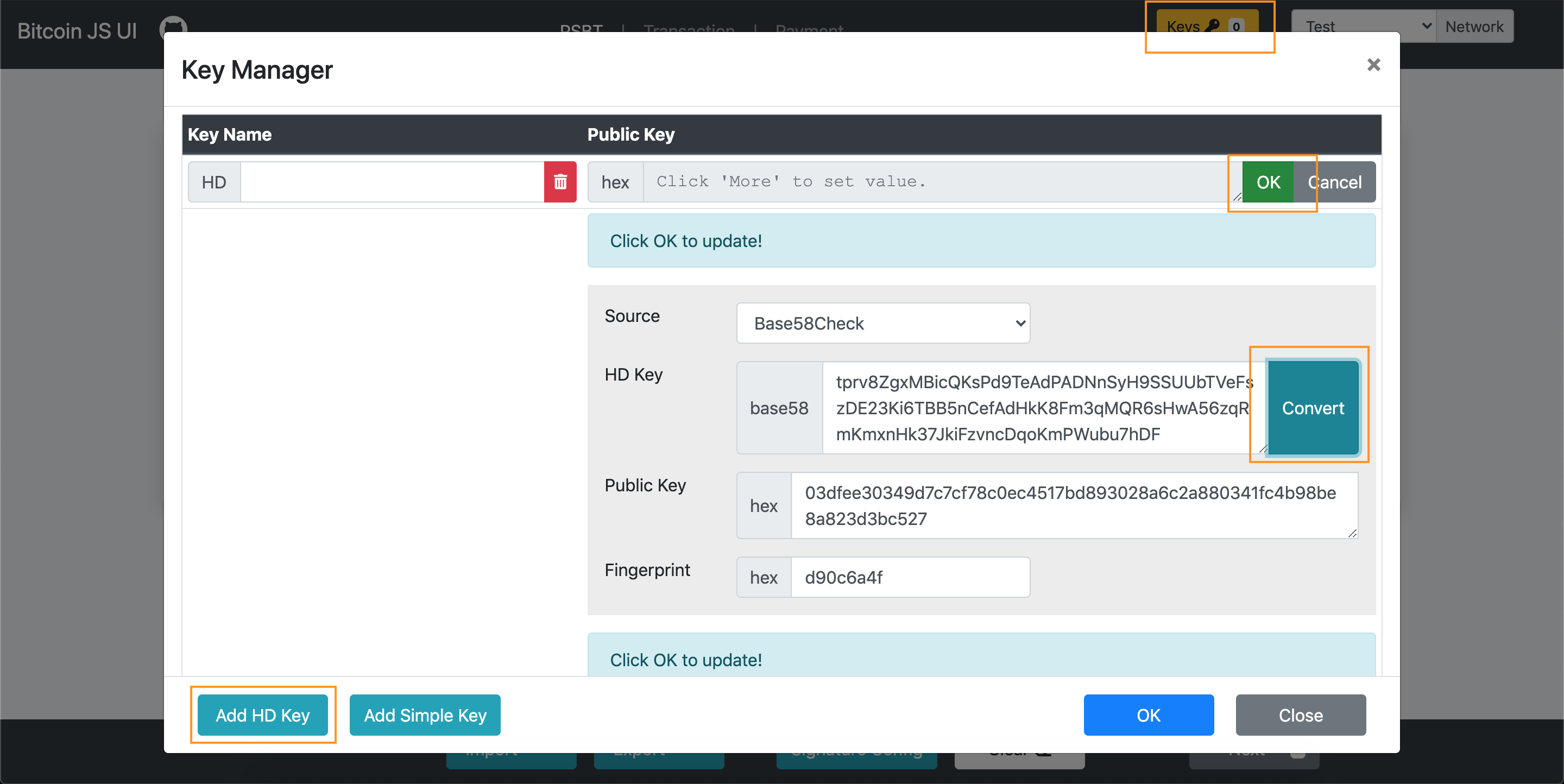

  • click on the Keys button on the top right side of the screen

  • on the pop-up click Add HD Key

  • click the More button and paste the above master private key tprv8ZgxMBicQK... in the HD Key field

  • click on Convert, the Public Key and the Fingerprint fields should now be populated

  • click the OK (green) button for this private key

  • click the OK button on the pop-up

    • image

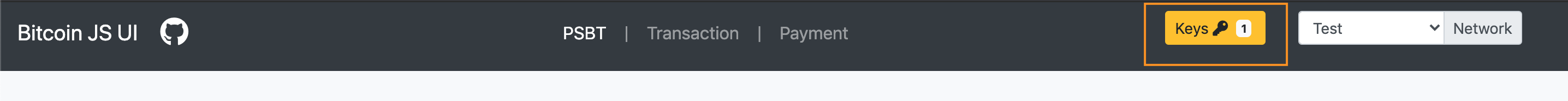

  • now the Keys button should indicate that there is one (1) key configured

    • image

Create PSBT

Add Outputs

PSBT 174 Test Vector:

A creator creating a PSBT for a transaction which creates the following outputs:

  • scriptPubKey: 0014d85c2b71d0060b09c9886aeb815e50991dda124d, Amount: 1.49990000
  • scriptPubKey: 001400aea9a2e5f0f876a588df5546e8742d1d87008f, Amount: 1.00000000

Steps

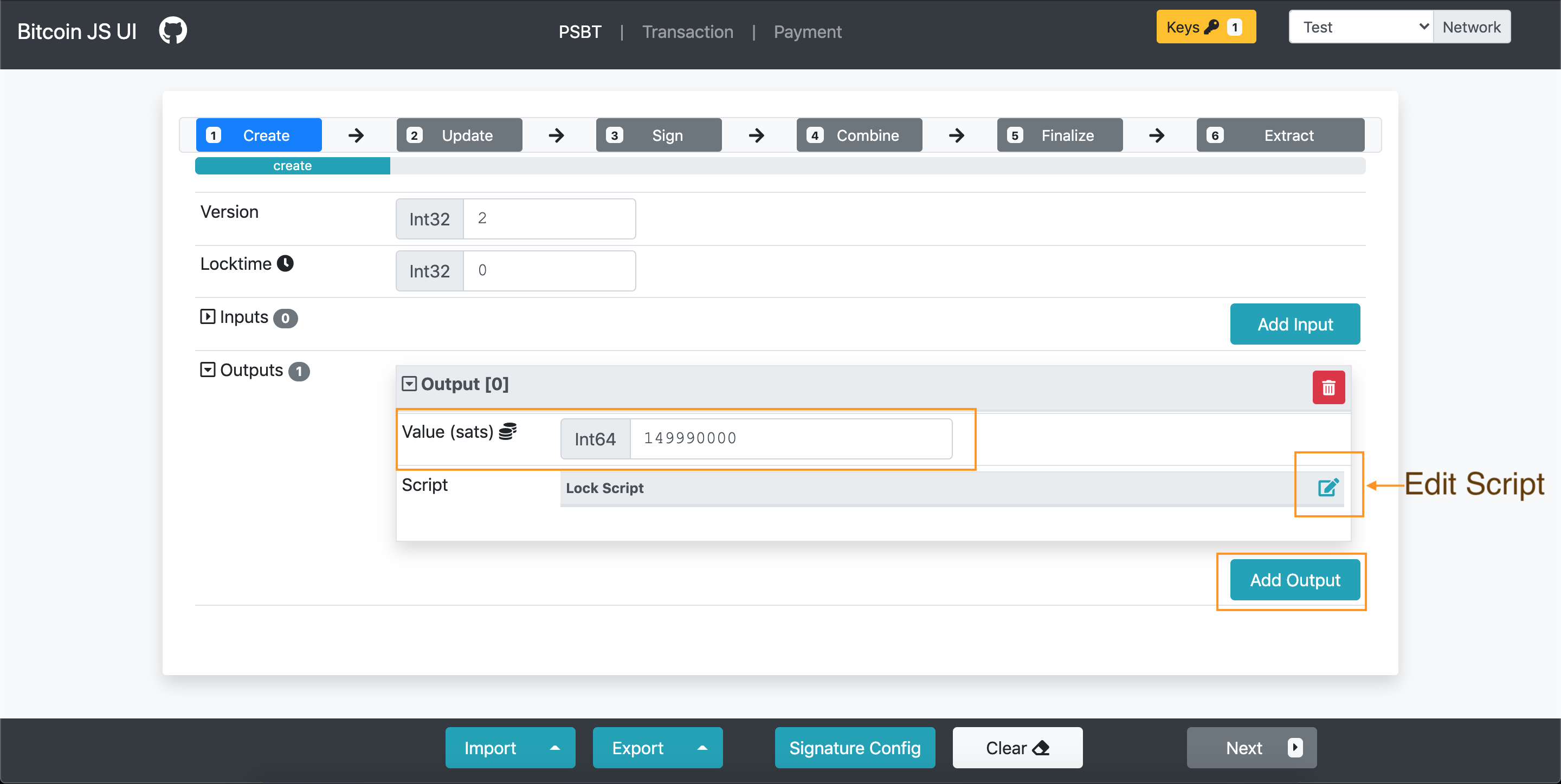

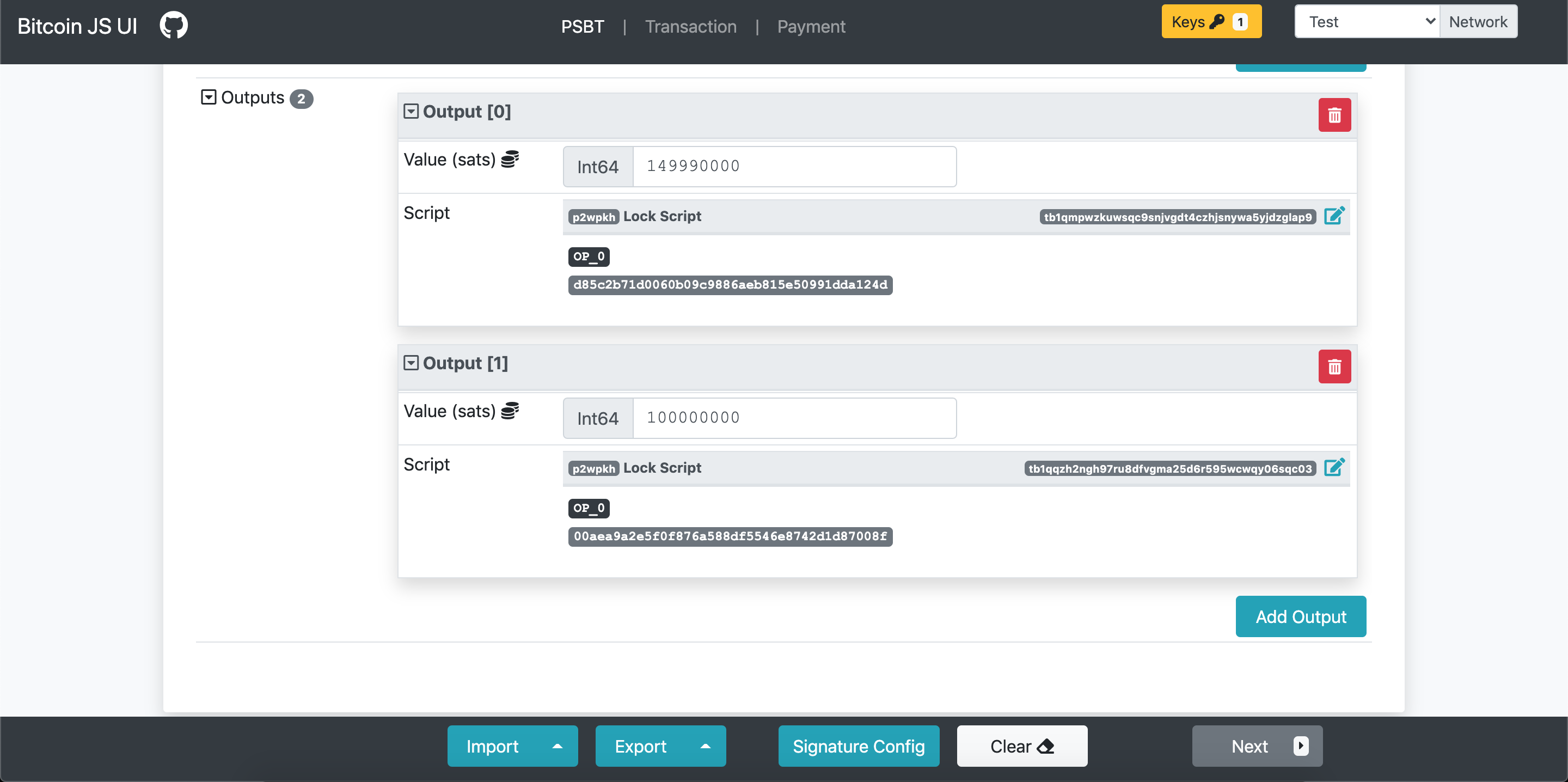

  • click on the Add Output button
  • fill in the Value(sats) on the recently create Output
    • image

Edit Lock Script

Click the Edit Script icon. On the opened pop-up perform the following steps

Steps

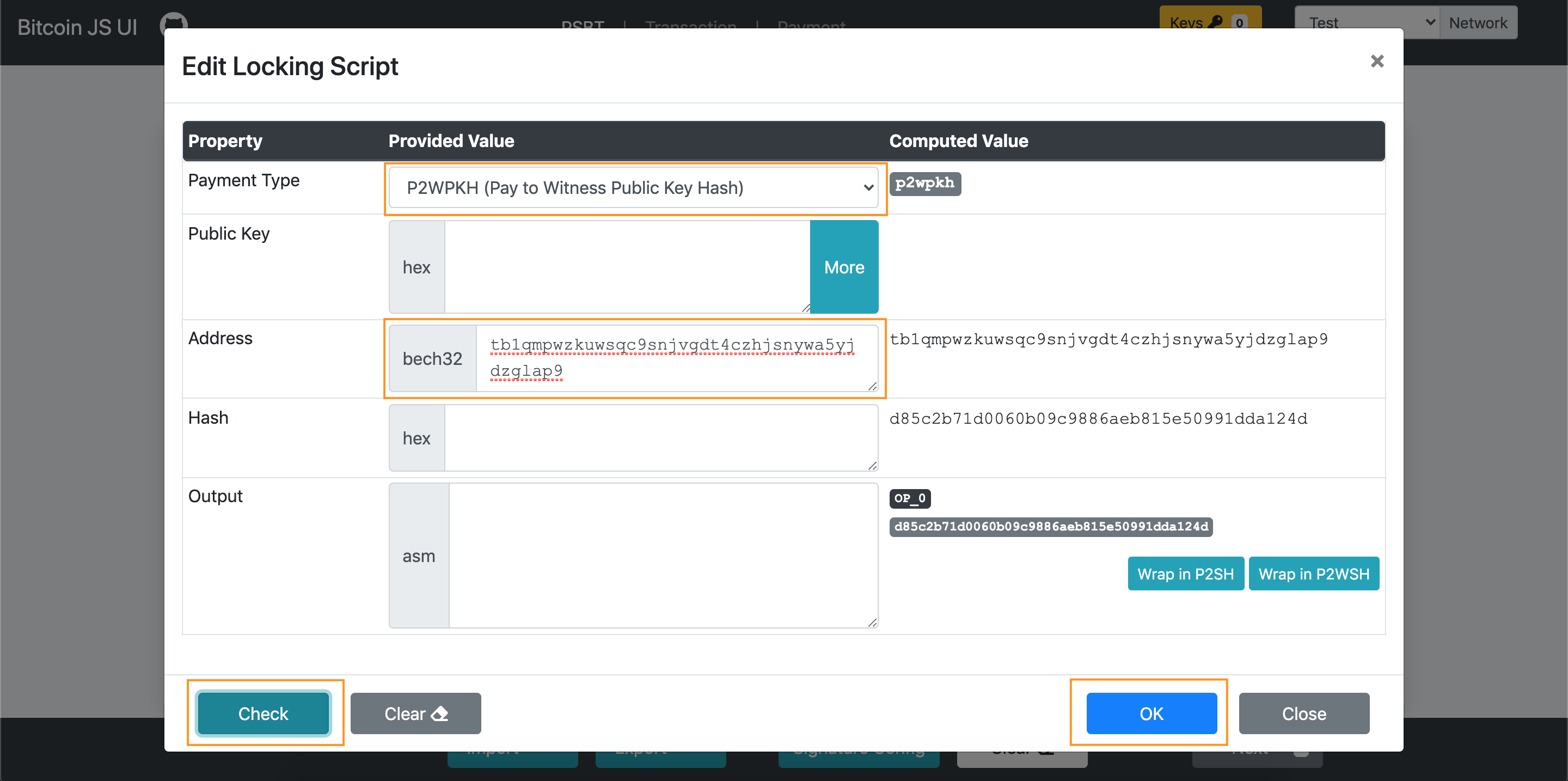

  • for Payment Type select P2WPKH (Pay to Witness Public Key Hash)

  • for Address enter tb1qmpwzkuwsqc9snjvgdt4czhjsnywa5yjdzglap9(this is for Bitcoin Test Network)

  • click the Check button. Values should be automatically filled on the right side Computed Value column

    • image

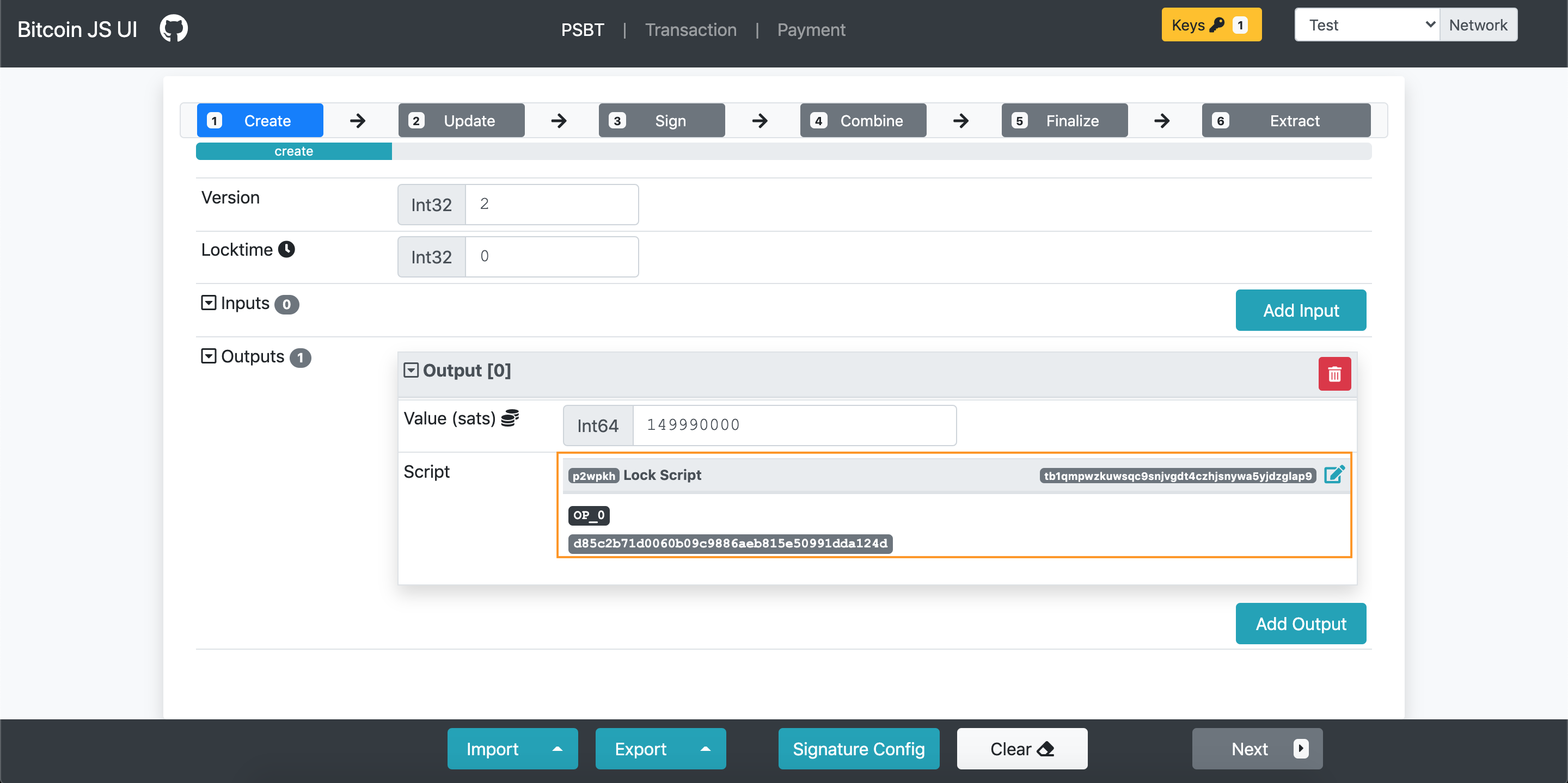

  • click OK on the pop-up. The Lock Script (scriptPubKey) value should be filled in

    • image

  • perform the same steps for the second input (Address: tb1qqzh2ngh97ru8dfvgma25d6r595wcwqy06sqc03)

    • image

Add Inputs

PSBT 174 Test Vector:

and spends the following inputs:

  • TXID: 75ddabb27b8845f5247975c8a5ba7c6f336c4570708ebe230caf6db5217ae858, Index: 0
  • TXID: 1dea7cd05979072a3578cab271c02244ea8a090bbb46aa680a65ecd027048d83, Index: 1

Steps:

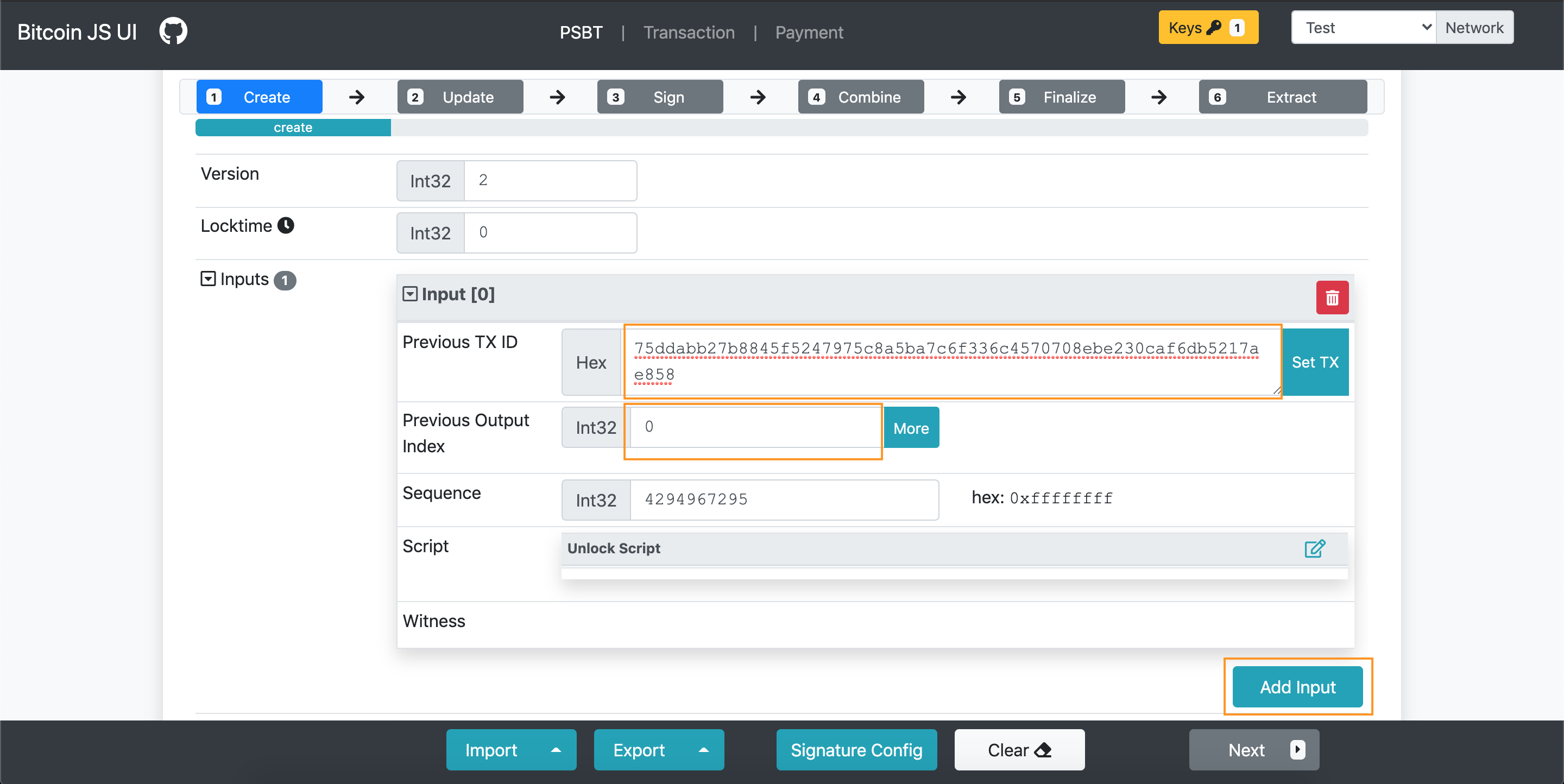

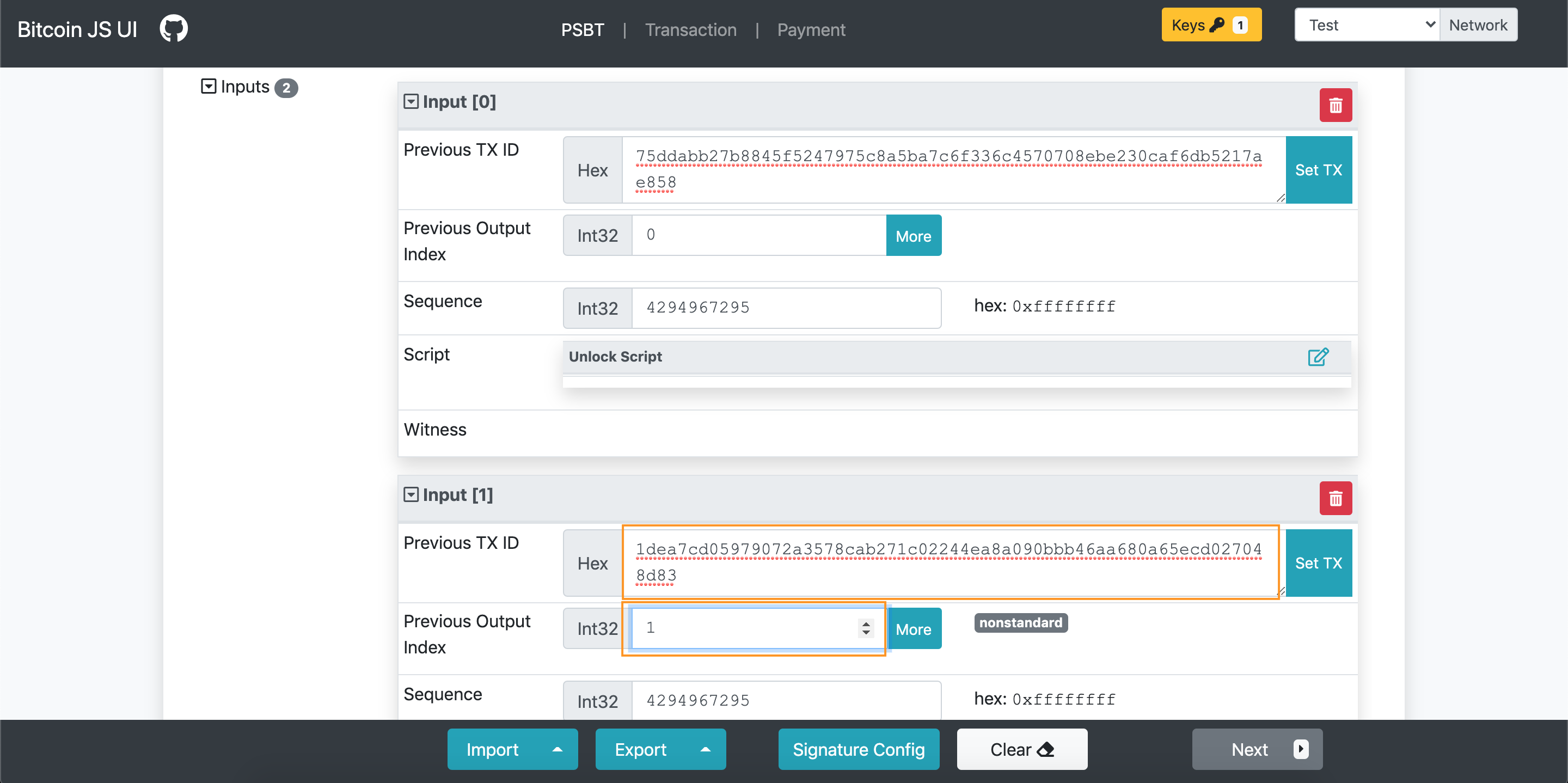

  • click the Add Input button and fill in the Previous TX ID and Previous Output Index

    • image

  • do the same for the second input

    • image

Export PSBT

PSBT 174 Test Vector:

must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f000000000000000000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAAAAAA=

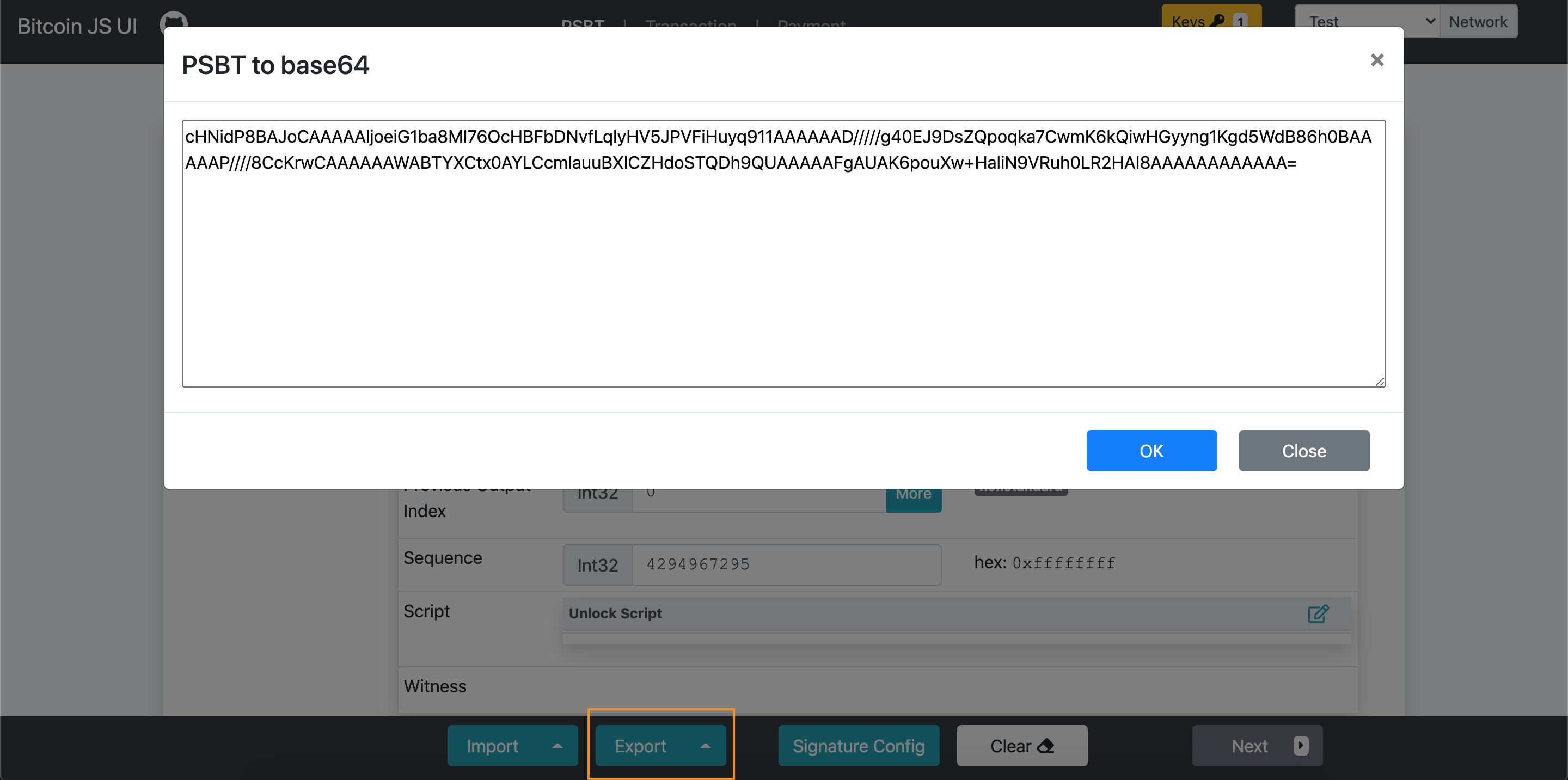

The PSBT can be exported as Base64 string or as Hex string

Steps:

  • click on the Export button
    • image

Update PSBT

PSBT 174 Test Vector:

Given the above PSBT, an updater with only the following:

  • Redeem Scripts: 5221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae ** 00208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903
  • Witness Scripts: ** 522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae
  • Previous Transactions: **
    0200000000010158e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd7501000000171600145f275f436b09a8cc9a2eb2a2f528485c68a56323feffffff02d8231f1b0100000017a914aed962d6654f9a2b36608eb9d64d2b260db4f1118700c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e88702483045022100a22edcc6e5bc511af4cc4ae0de0fcd75c7e04d8c1c3a8aa9d820ed4b967384ec02200642963597b9b1bc22c75e9f3e117284a962188bf5e8a74c895089046a20ad770121035509a48eb623e10aace8bfd0212fdb8a8e5af3c94b0b133b95e114cab89e4f7965000000
    **
    0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f618765000000
  • Public Keys

** Key: 029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f, Derivation Path: m/0'/0'/0' ** Key: 02dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d7, Derivation Path: m/0'/0'/1' ** Key: 03089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc, Derivation Path: m/0'/0'/2' ** Key: 023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e73, Derivation Path: m/0'/0'/3' ** Key: 03a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca58771, Derivation Path: m/0'/0'/4' ** Key: 027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b50051096, Derivation Path: m/0'/0'/5'

After the PSBT was created, we can move to the Update phase.

Steps:

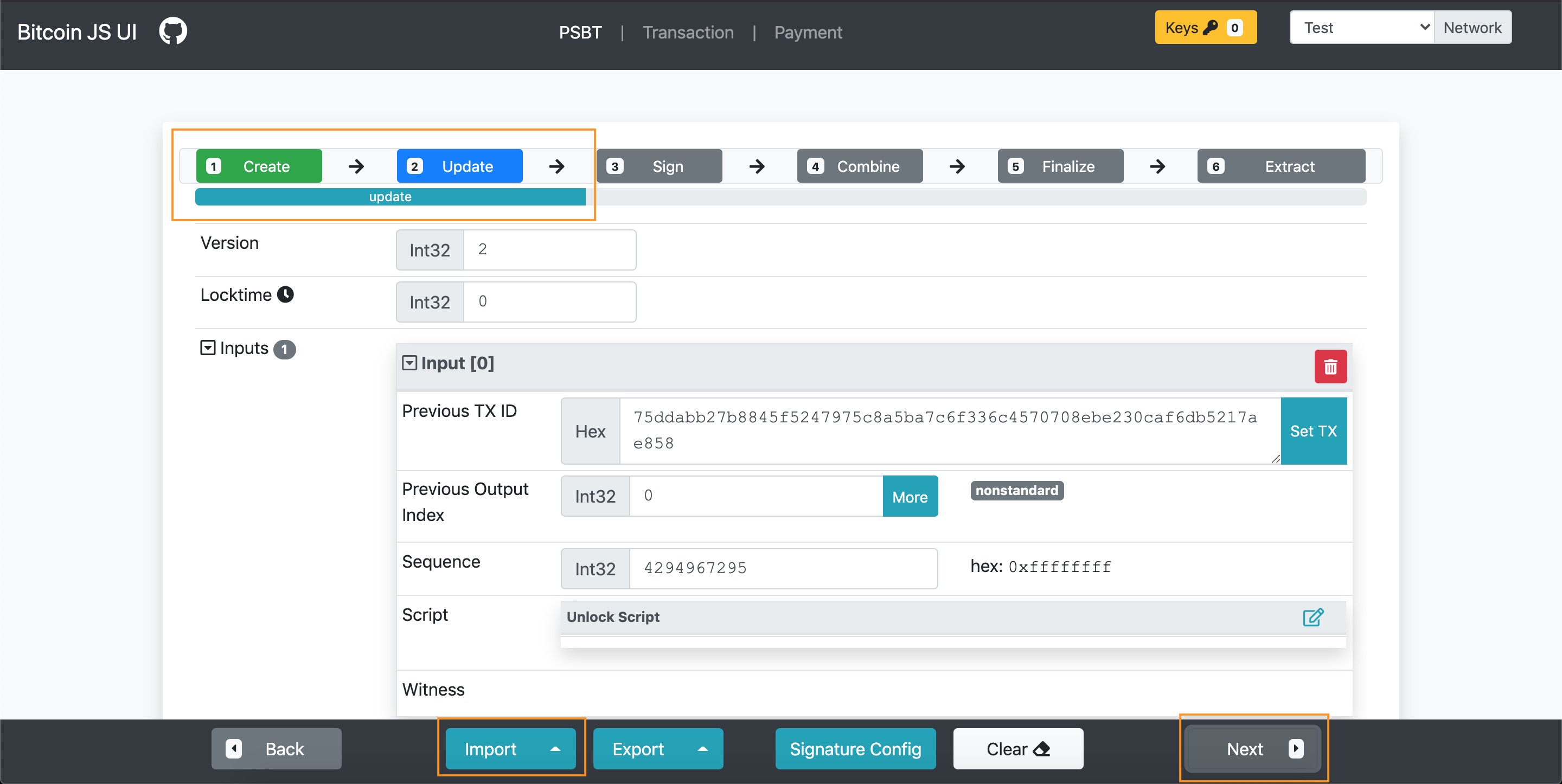

  • if the Updater is the same as the Creator then click the Next button
  • if the Updater and the Creator are different, then Creator must Export the PSBT and the Updater must Import back the PSBT (as Base64 or Hex)
    • image

Configure non-witness UTXO (Input [0])

Set the Transaction that it is being spent from.

Steps:

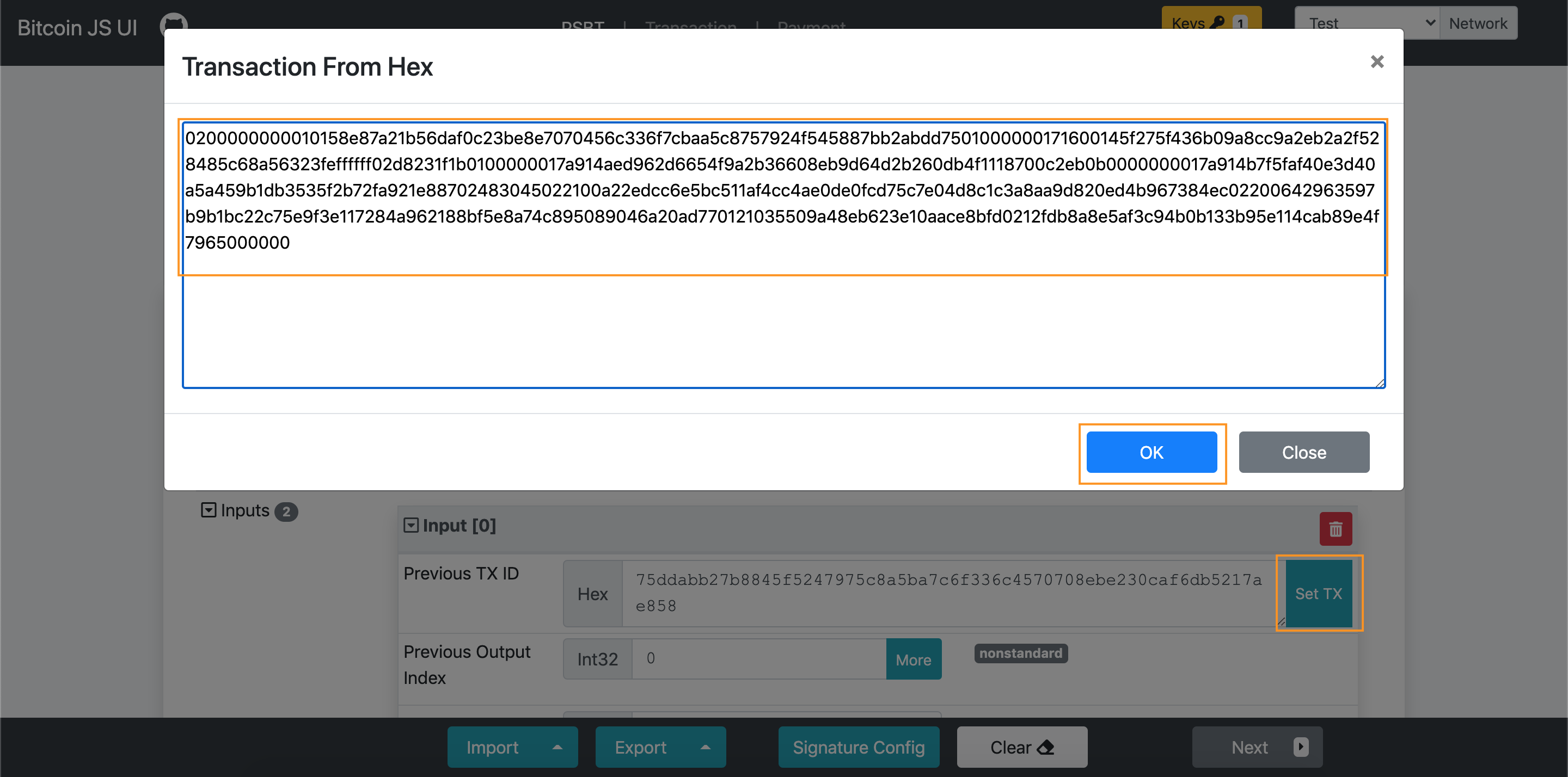

  • click the Set TX button

  • in the open pop-up provide the Transaction Hex value 0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f618765000000

  • click OK on the pop-up

    • image

  • make sure that the Previous TX ID stays the same (75ddabb27b8845f5247975c8a5ba7c6f336c4570708ebe230caf6db5217ae858)

Set the Redeem Script and the Derivation Paths

Steps:

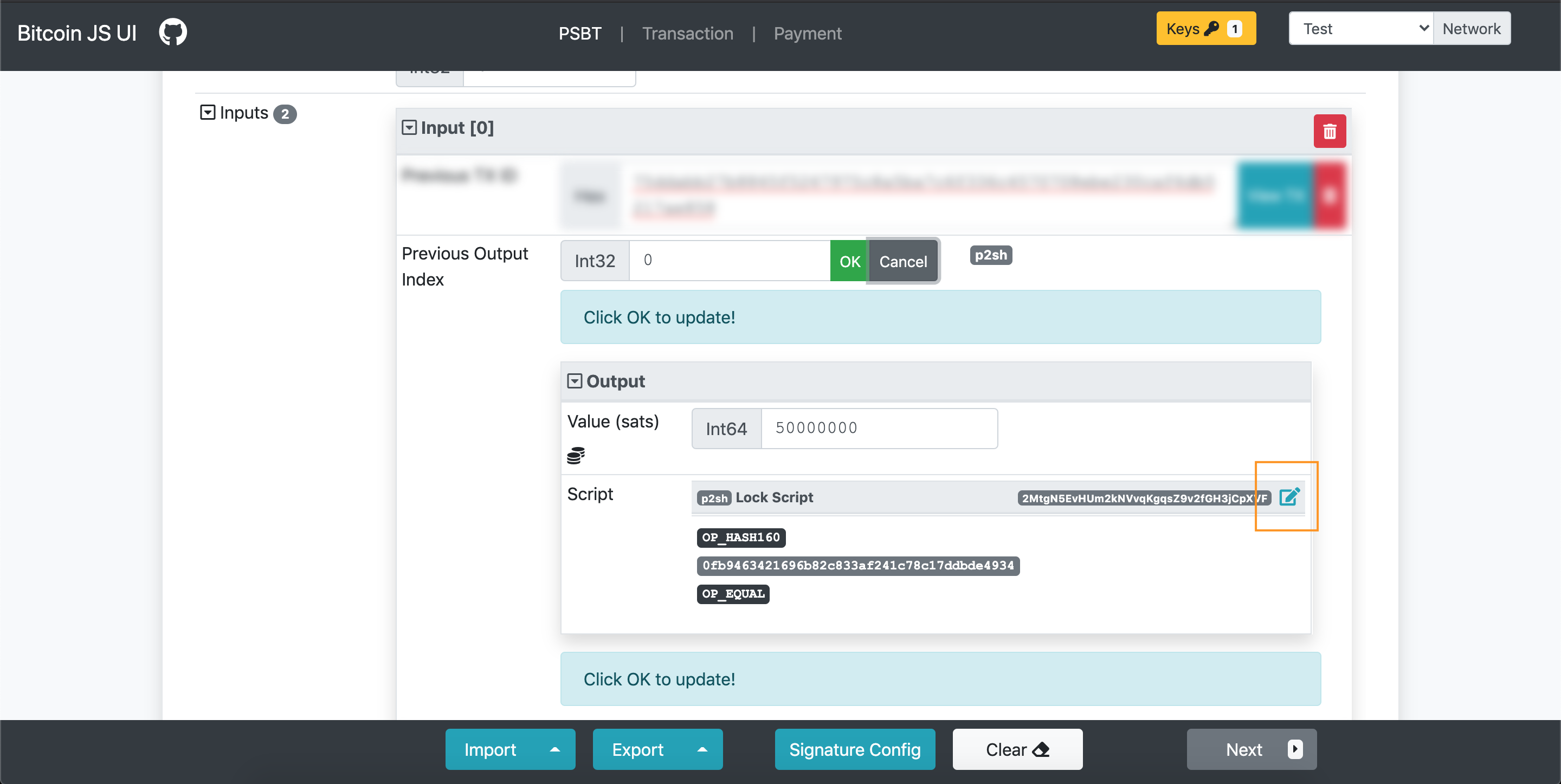

  • click the More button next to the Previous Output Index input

  • the Lock Script is already filled in from the Previous Transaction Hex

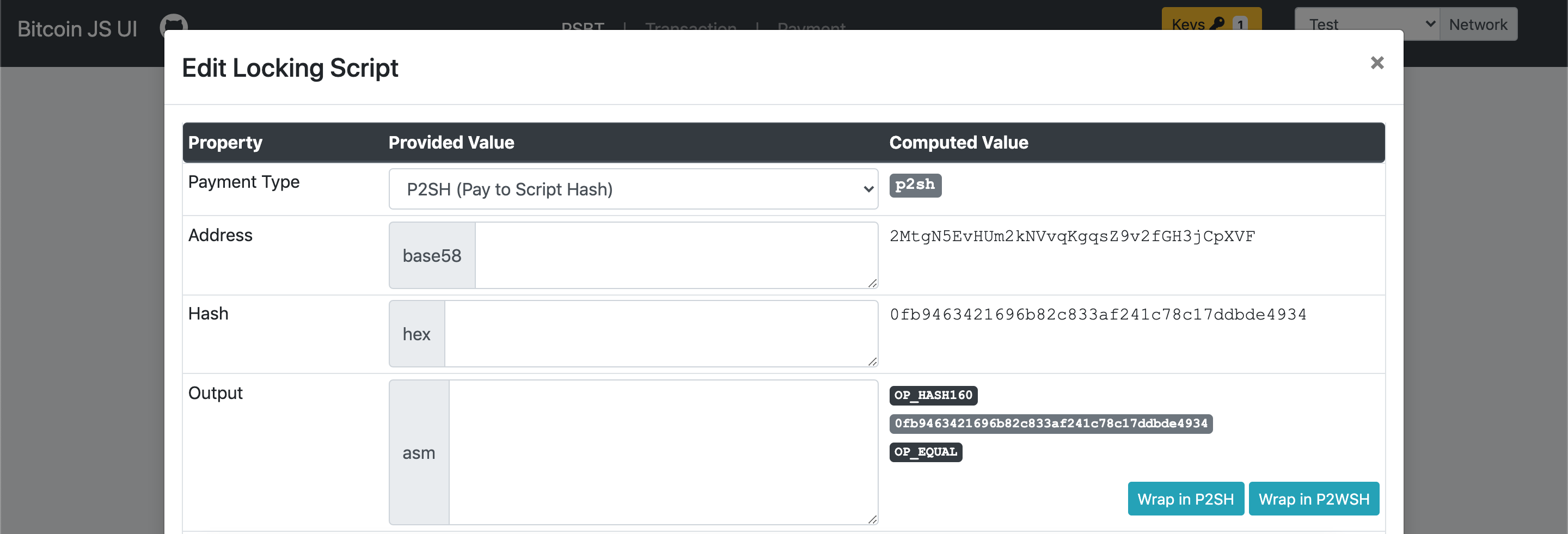

  • click the edit script icon

    • image

  • the P2SH payment data is already filled in

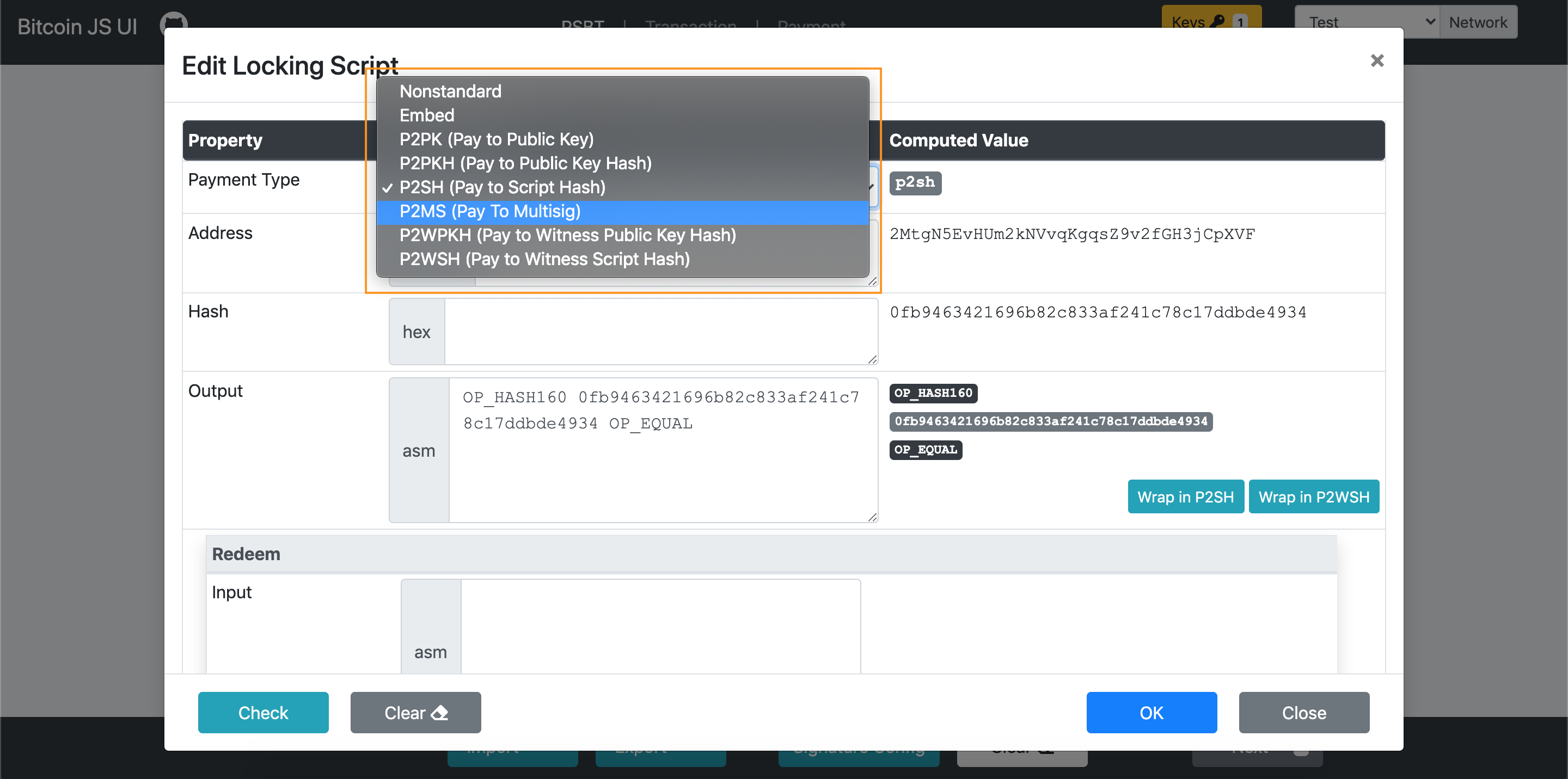

  • change the Payment Type to P2MS

    • image

  • clear the P2SH Output

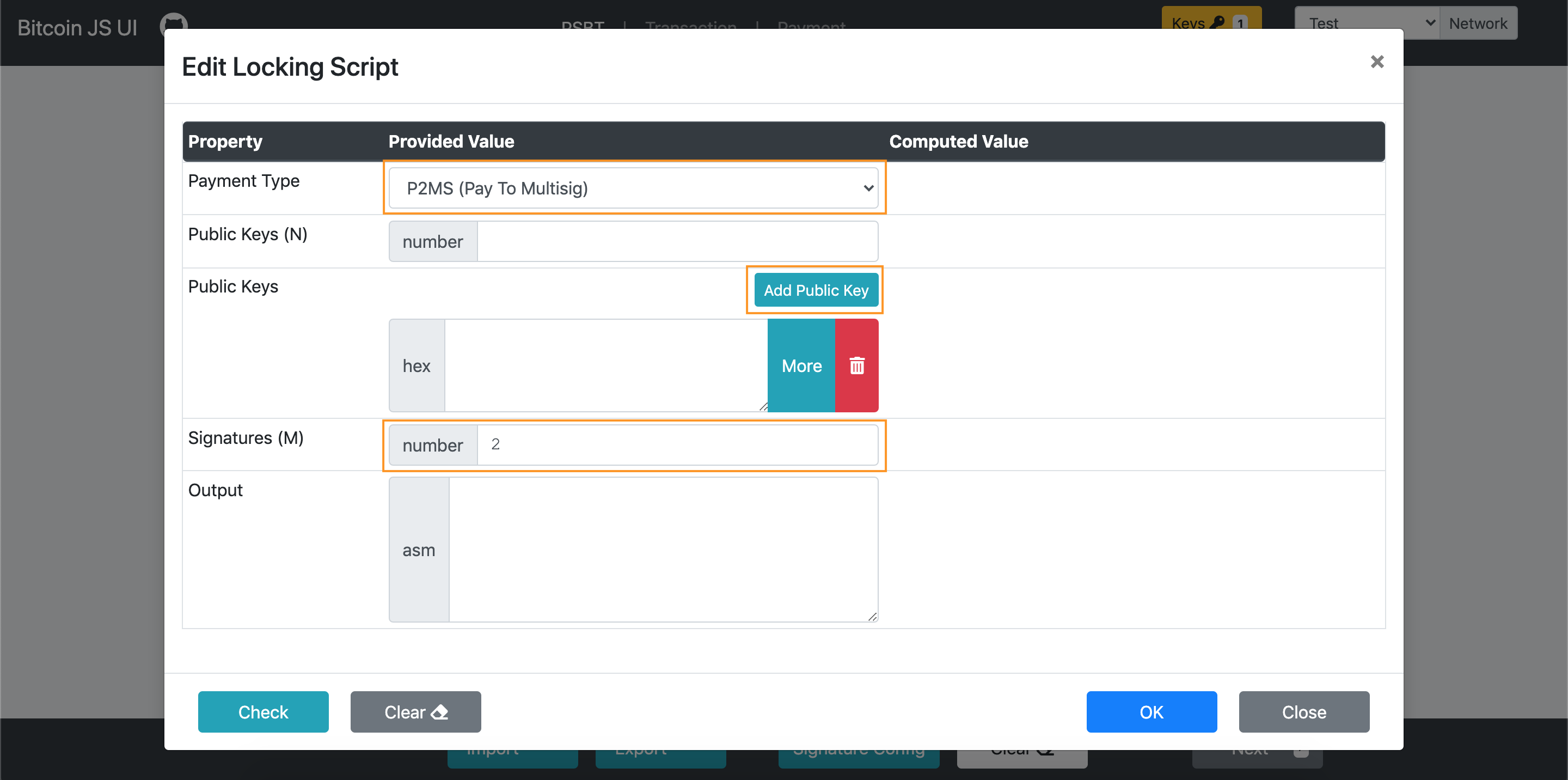

  • set the Signatures (M) value to 2

  • click on the Add Public Key button

    • image

  • a new Public Key entry should be added

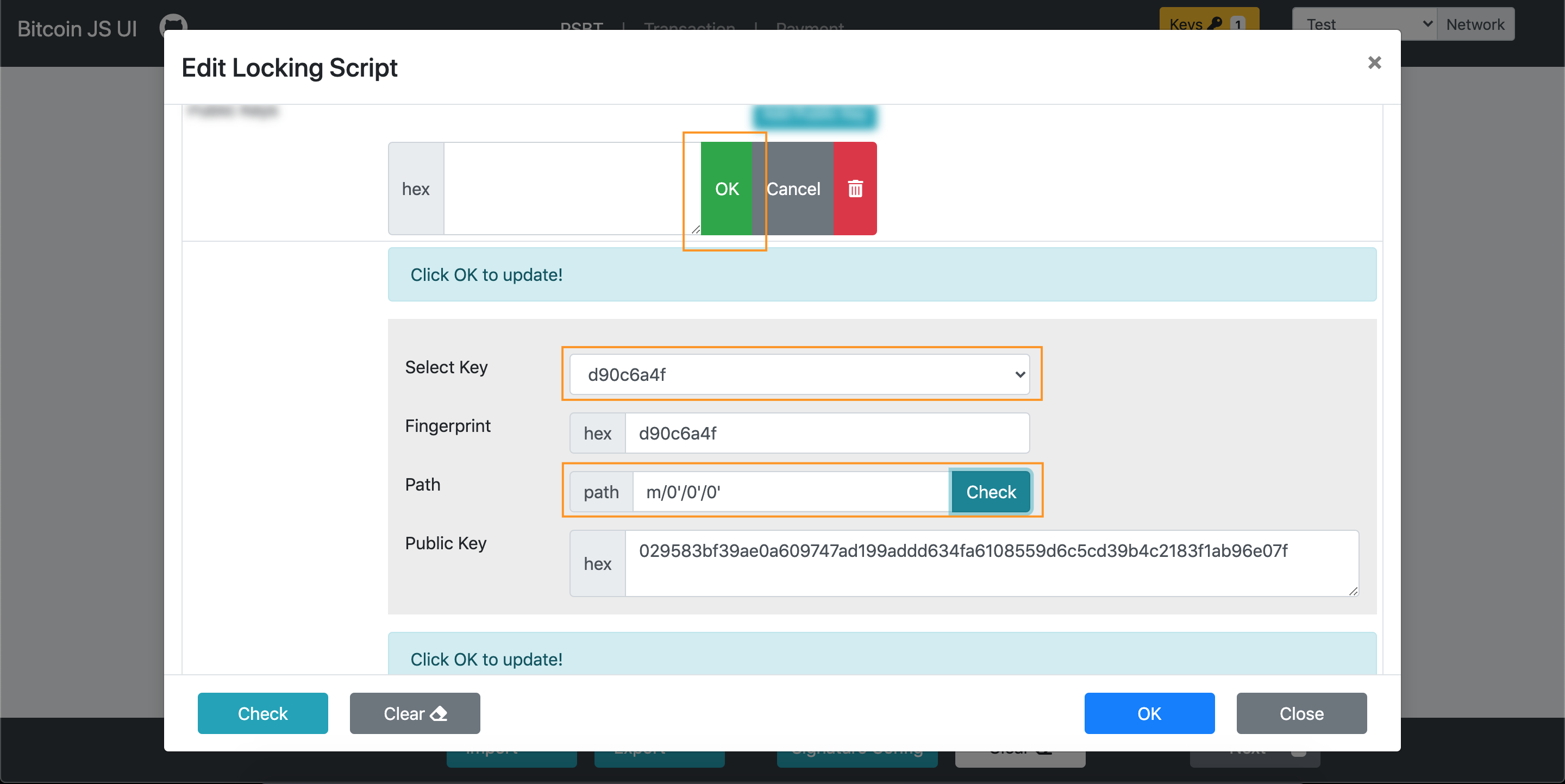

  • click on the More button next to the Public Key

  • on the expanded panel Select the Key with name d90c6a4f (same as the fingerprint)

  • the Fingerprint d90c6a4f value will be filled in

  • enter m/0'/0'/0' for the Path field and click Check

  • the derived Public Key value (029583bf39a...) should be filled in

    • image

  • remember to click the green OK button on top

  • add another Public Key by repeating the same steps, but use the Derivation Path m/0'/0'/1'

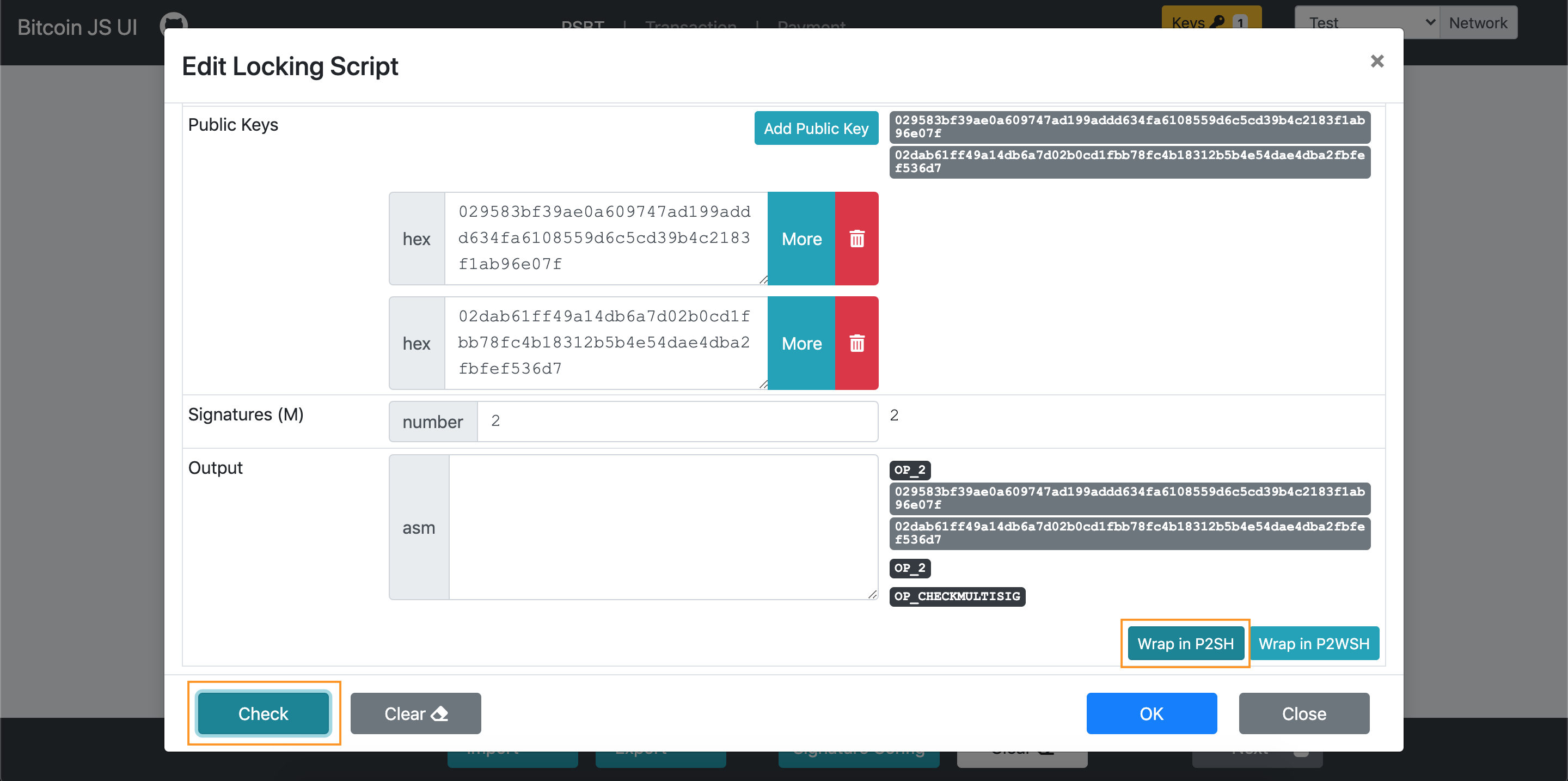

  • after the two Public Keys are configured, click the Check button

  • the Output Script will be computed

    • image

  • click the Wrap in P2SH button

    • image
    • image

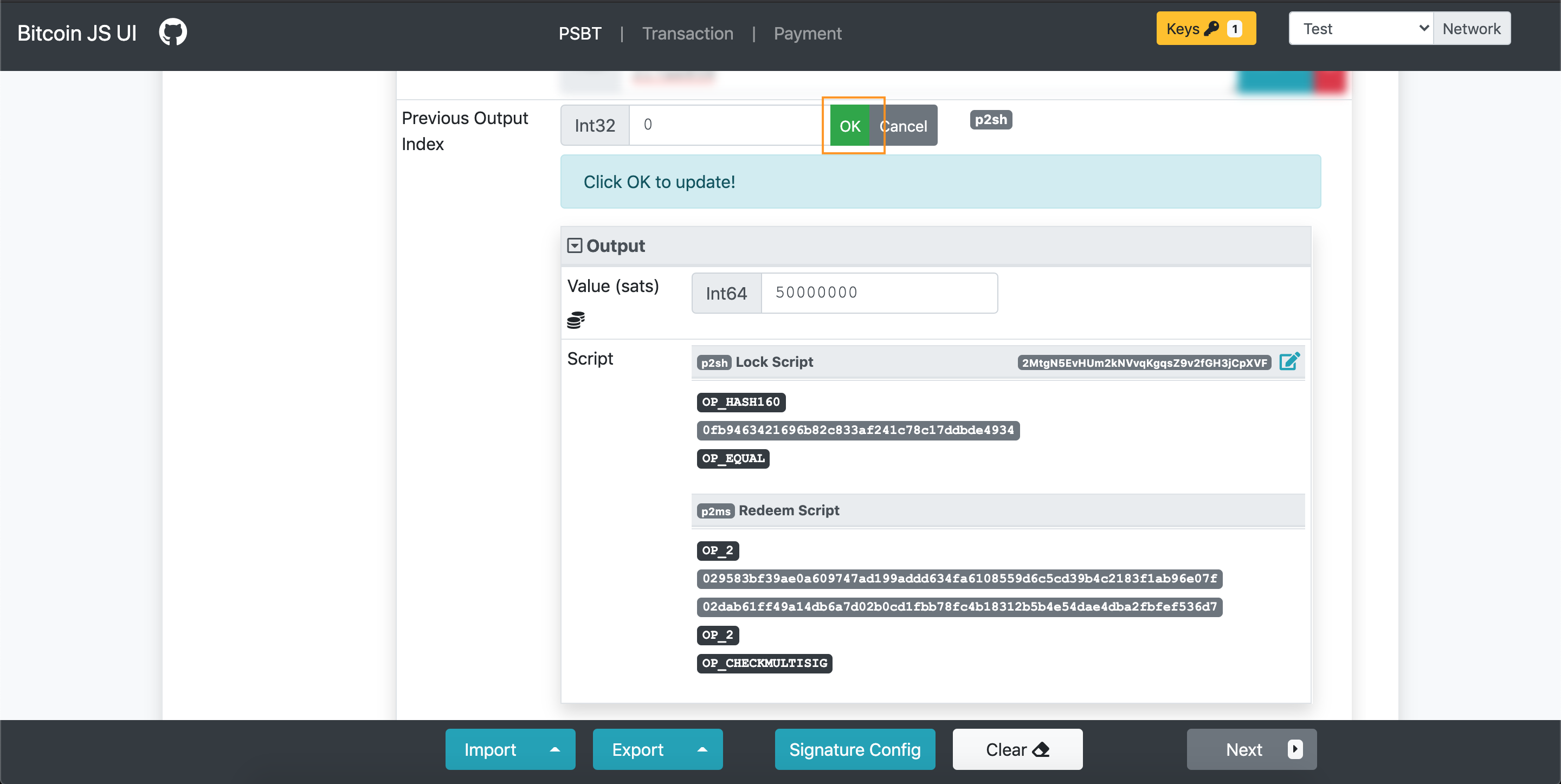

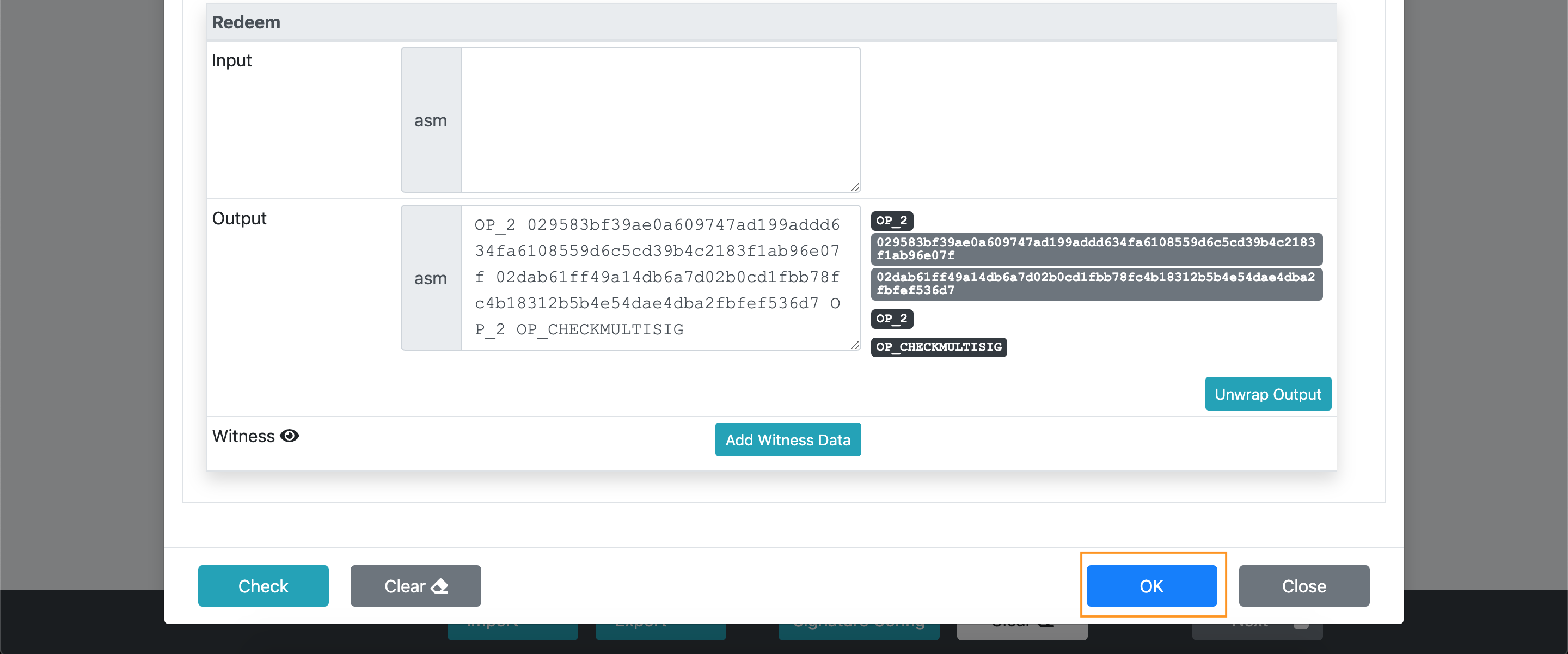

  • click the OK button on the pop-up

    • image

  • check that the Redeem Script is identical with the one provided by the Previous Transaction (hash: 0fb9463421696b82c833af241c78c17ddbde4934)

  • click the green OK button

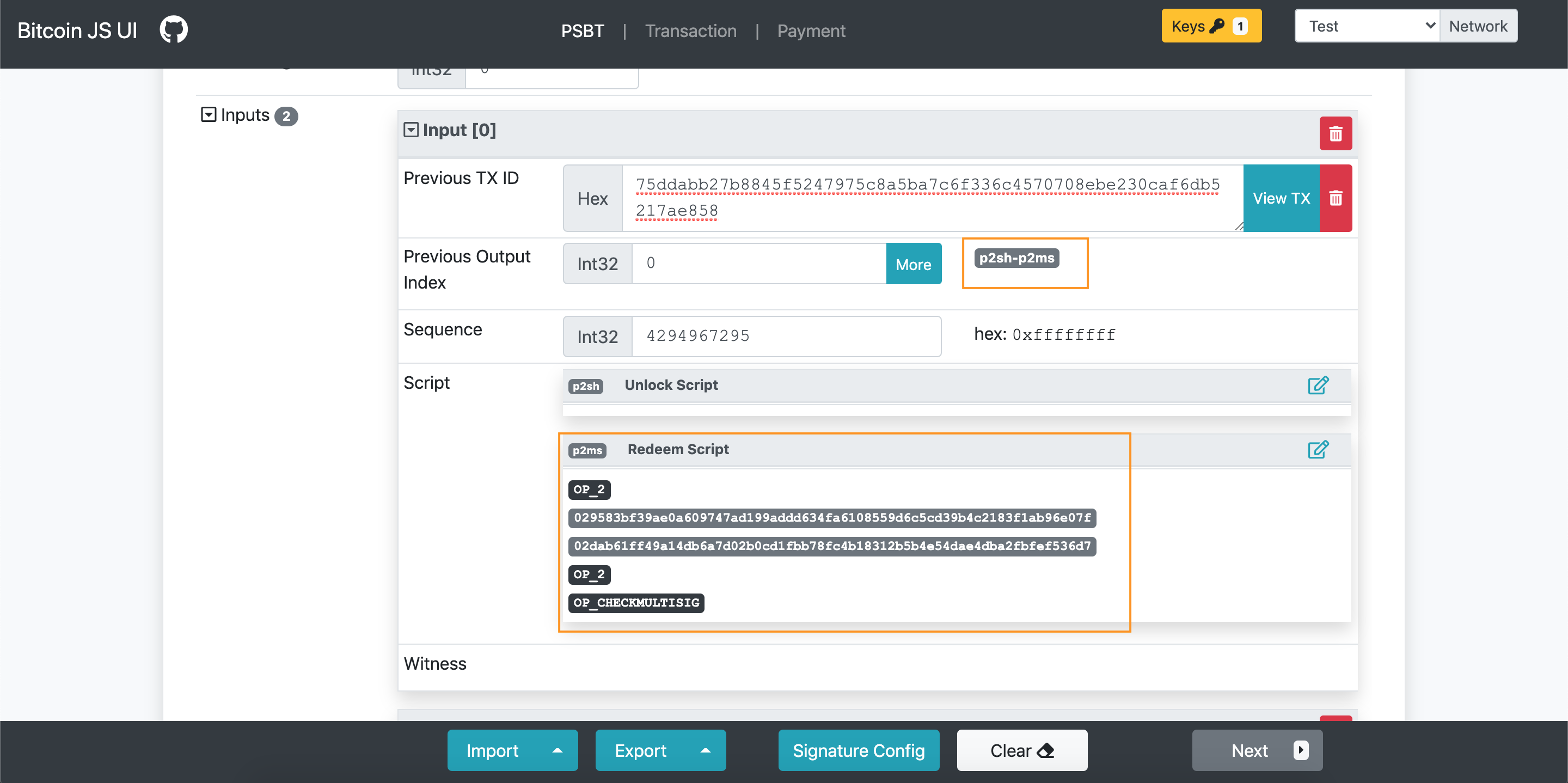

  • the Output type should change to p2sh-p2ms

  • the Redeem Scripts should be also be present in the Script section, next to the Unlock Script

    • image

Configure witness UTXO (Input [1])

The witness script in this case is also a P2MS (2 of 2) wrapped in a P2WSH which is again wrapped in a P2SH

Set the Witness Script and the Derivation Paths

Repeat the same steps for the second input, with the following differences:

  • use the Derivation Paths m/0'/0'/2' and m/0'/0'/3' for the Public Keys when creating the P2MS payment
  • first Wrap in P2WSH the P2MS
  • then Wrap in P2SH the resulted P2WSH

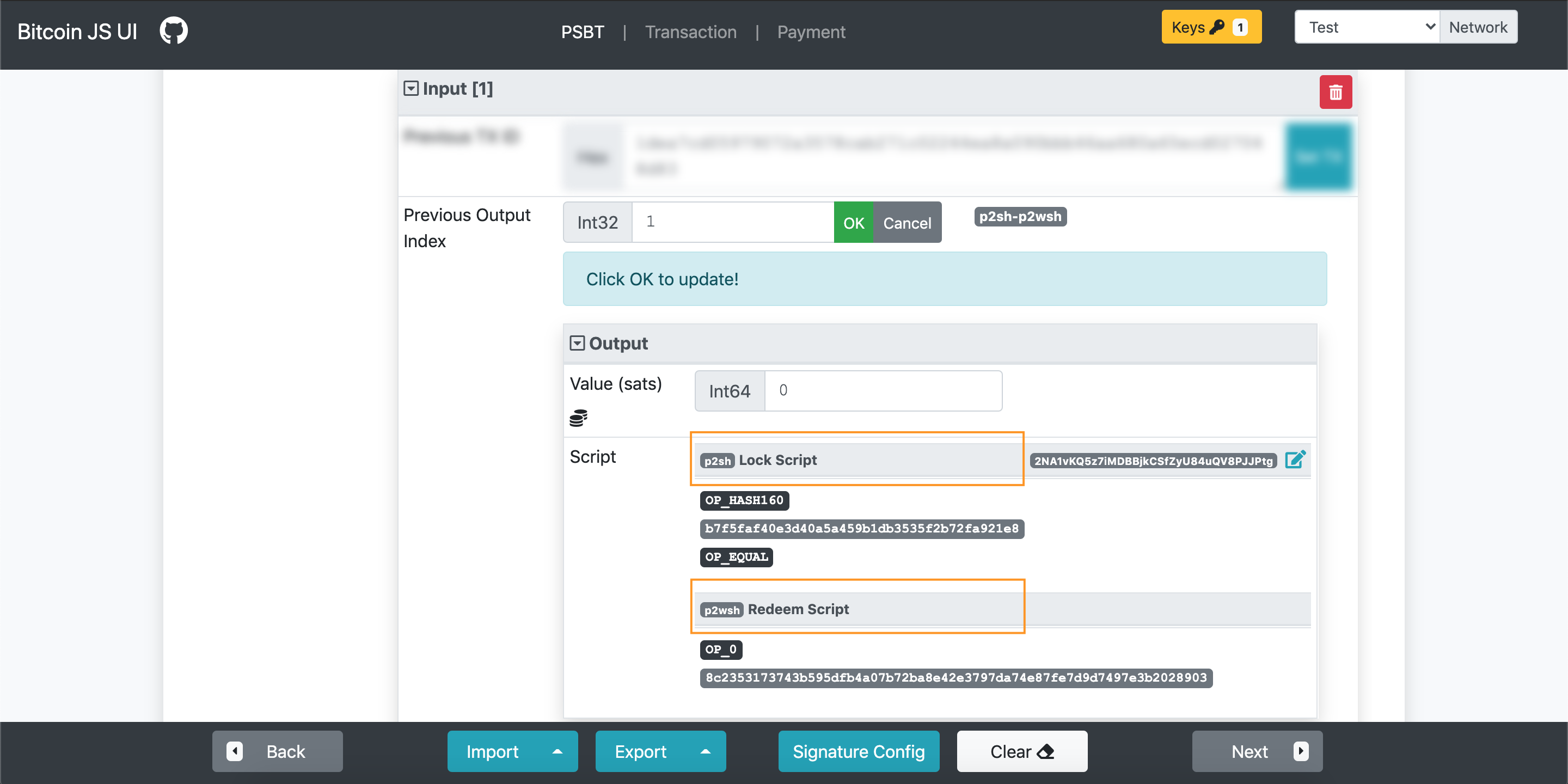

  • the resulted Redeem Script and Lock Script should be:
    • image

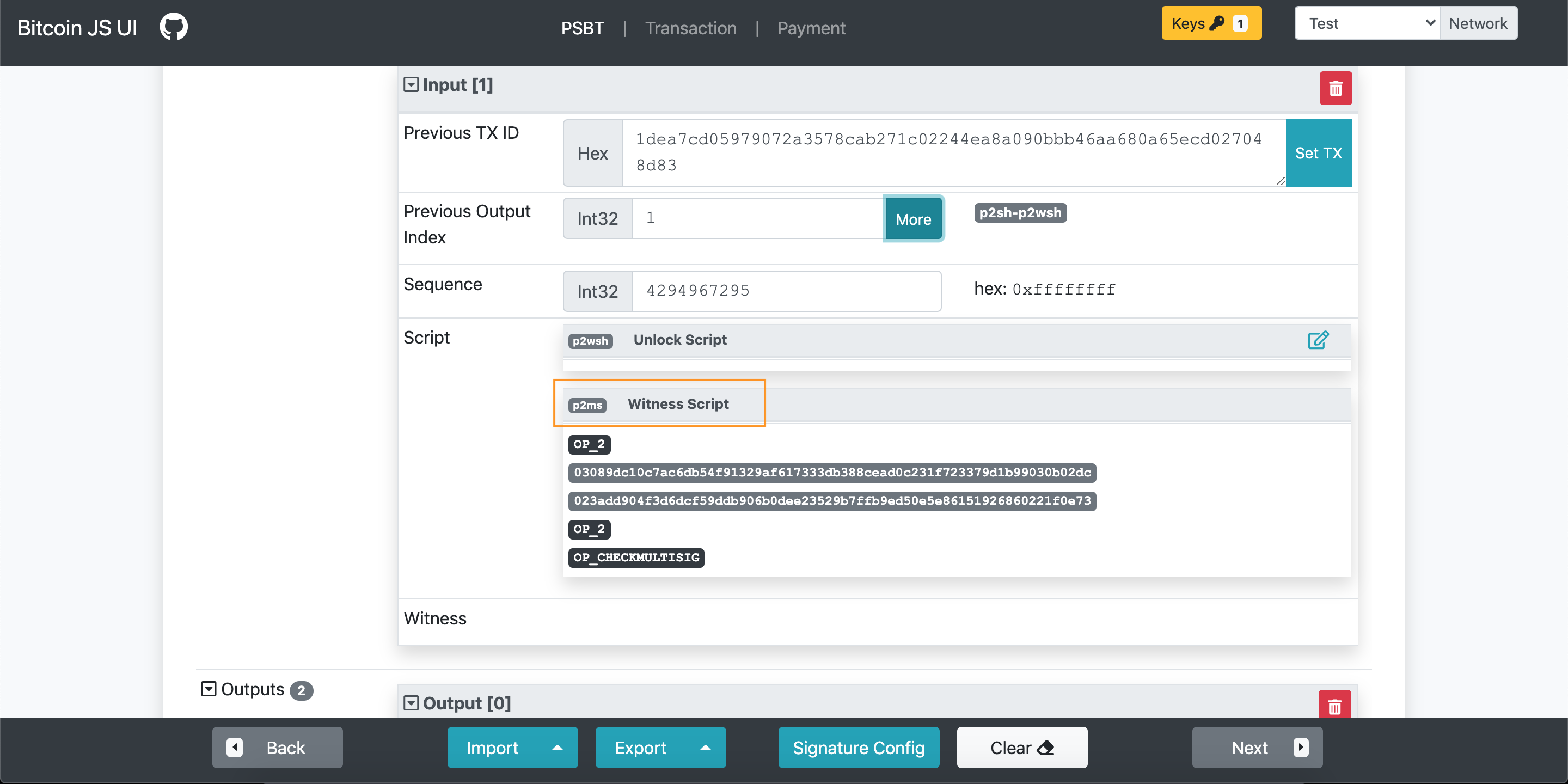

  • on the Script section, the Witness Script should be present now
    • image

Configure Derivation Paths for Outputs

Both Outputs pay to a P2WPKH. The addresses have been provided, but not the actual Public Keys. Follow the below steps in order to configure the Public Keys and Derivation Paths:

Steps:

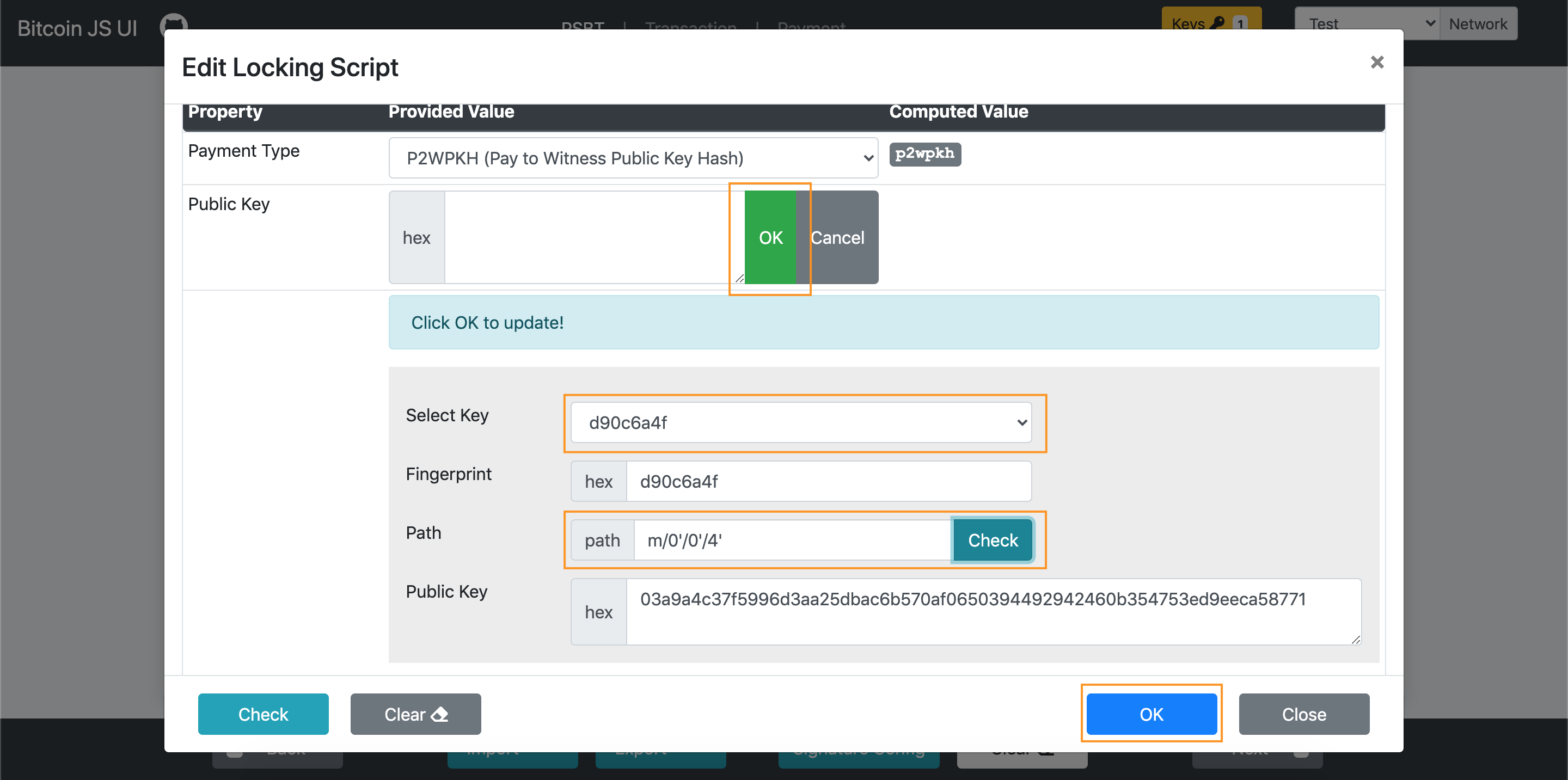

  • click on the Lock Script edit icon for the first Output
  • on the pop-up click the More button for Public Key field
  • select the Key and provide the Derivation Path m/0'/0'/4'
  • click the Check button, the Public Key should be filled in
  • remember to click the green OK button
    • image
  • click the OK button on the modal

Repeat the above steps for the second Output, but use the Derivation Path m/0'/0'/4'.

Export the PSBT and compare it with the following values.

PSBT 174 Test Vector:

Must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f00000000000100bb0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f6187650000000104475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae2206029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f10d90c6a4f000000800000008000000080220602dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d710d90c6a4f0000008000000080010000800001012000c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e88701042200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903010547522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae2206023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7310d90c6a4f000000800000008003000080220603089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc10d90c6a4f00000080000000800200008000220203a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca5877110d90c6a4f000000800000008004000080002202027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b5005109610d90c6a4f00000080000000800500008000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAEAuwIAAAABqtc5MQGL0l+ErkALaISL4J23BurCrBgpi6vucatlb4sAAAAASEcwRAIgWPb8fGoz4bMVSNSByCbAFb0wE1qtQs1neQ2rZtKtJDsCIEoc7SYExnNbY5PltBaR3XiwDwxZQvufdRhW+qk4FX26Af7///8CgPD6AgAAAAAXqRQPuUY0IWlrgsgzryQceMF9295JNIfQ8gonAQAAABepFCnKdPigj4GZlCgYXJe12FLkBj9hh2UAAAABBEdSIQKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgfyEC2rYf9JoU22p9ArDNH7t4/EsYMStbTlTa5Nui+/71NtdSriIGApWDvzmuCmCXR60Zmt3WNPphCFWdbFzTm0whg/GrluB/ENkMak8AAACAAAAAgAAAAIAiBgLath/0mhTban0CsM0fu3j8SxgxK1tOVNrk26L7/vU21xDZDGpPAAAAgAAAAIABAACAAAEBIADC6wsAAAAAF6kUt/X69A49QKWkWbHbNTXyty+pIeiHAQQiACCMI1MXN0O1ld+0oHtyuo5C43l9p06H/n2ddJfjsgKJAwEFR1IhAwidwQx6xttU+RMpr2FzM9s4jOrQwjH3IzedG5kDCwLcIQI63ZBPPW3PWd25BrDe4jUpt/+57VDl6GFRkmhgIh8Oc1KuIgYCOt2QTz1tz1nduQaw3uI1Kbf/ue1Q5ehhUZJoYCIfDnMQ2QxqTwAAAIAAAACAAwAAgCIGAwidwQx6xttU+RMpr2FzM9s4jOrQwjH3IzedG5kDCwLcENkMak8AAACAAAAAgAIAAIAAIgIDqaTDf1mW06ol26xrVwrwZQOUSSlCRgs1R1Ptnuylh3EQ2QxqTwAAAIAAAACABAAAgAAiAgJ/Y5l1fS7/VaE2rQLGhLGDi2VW5fG2s0KCqUtrUAUQlhDZDGpPAAAAgAAAAIAFAACAAA==

Configure SIGHASH

PSBT 174 Test Vector:

An updater which adds SIGHASH_ALL to the above PSBT must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f00000000000100bb0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f618765000000010304010000000104475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae2206029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f10d90c6a4f000000800000008000000080220602dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d710d90c6a4f0000008000000080010000800001012000c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e8870103040100000001042200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903010547522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae2206023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7310d90c6a4f000000800000008003000080220603089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc10d90c6a4f00000080000000800200008000220203a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca5877110d90c6a4f000000800000008004000080002202027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b5005109610d90c6a4f00000080000000800500008000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAEAuwIAAAABqtc5MQGL0l+ErkALaISL4J23BurCrBgpi6vucatlb4sAAAAASEcwRAIgWPb8fGoz4bMVSNSByCbAFb0wE1qtQs1neQ2rZtKtJDsCIEoc7SYExnNbY5PltBaR3XiwDwxZQvufdRhW+qk4FX26Af7///8CgPD6AgAAAAAXqRQPuUY0IWlrgsgzryQceMF9295JNIfQ8gonAQAAABepFCnKdPigj4GZlCgYXJe12FLkBj9hh2UAAAABAwQBAAAAAQRHUiEClYO/Oa4KYJdHrRma3dY0+mEIVZ1sXNObTCGD8auW4H8hAtq2H/SaFNtqfQKwzR+7ePxLGDErW05U2uTbovv+9TbXUq4iBgKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgfxDZDGpPAAAAgAAAAIAAAACAIgYC2rYf9JoU22p9ArDNH7t4/EsYMStbTlTa5Nui+/71NtcQ2QxqTwAAAIAAAACAAQAAgAABASAAwusLAAAAABepFLf1+vQOPUClpFmx2zU18rcvqSHohwEDBAEAAAABBCIAIIwjUxc3Q7WV37Sge3K6jkLjeX2nTof+fZ10l+OyAokDAQVHUiEDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtwhAjrdkE89bc9Z3bkGsN7iNSm3/7ntUOXoYVGSaGAiHw5zUq4iBgI63ZBPPW3PWd25BrDe4jUpt/+57VDl6GFRkmhgIh8OcxDZDGpPAAAAgAAAAIADAACAIgYDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtwQ2QxqTwAAAIAAAACAAgAAgAAiAgOppMN/WZbTqiXbrGtXCvBlA5RJKUJGCzVHU+2e7KWHcRDZDGpPAAAAgAAAAIAEAACAACICAn9jmXV9Lv9VoTatAsaEsYOLZVbl8bazQoKpS2tQBRCWENkMak8AAACAAAAAgAUAAIAA

Steps:

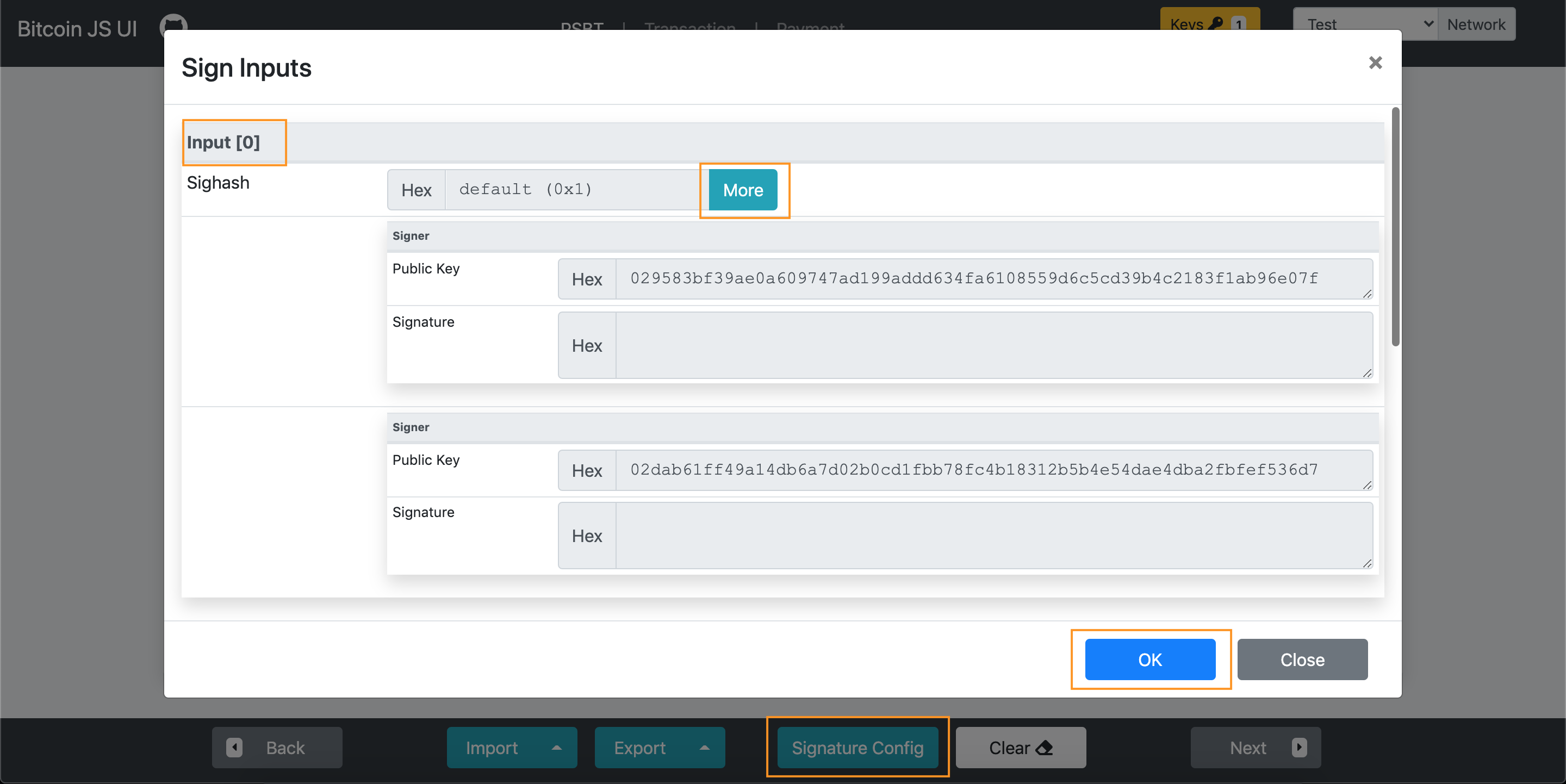

  • click on the Signature Config button on the bottom of the page
  • a pop-up is open where the Sighash can be configured for each Input.
    • image

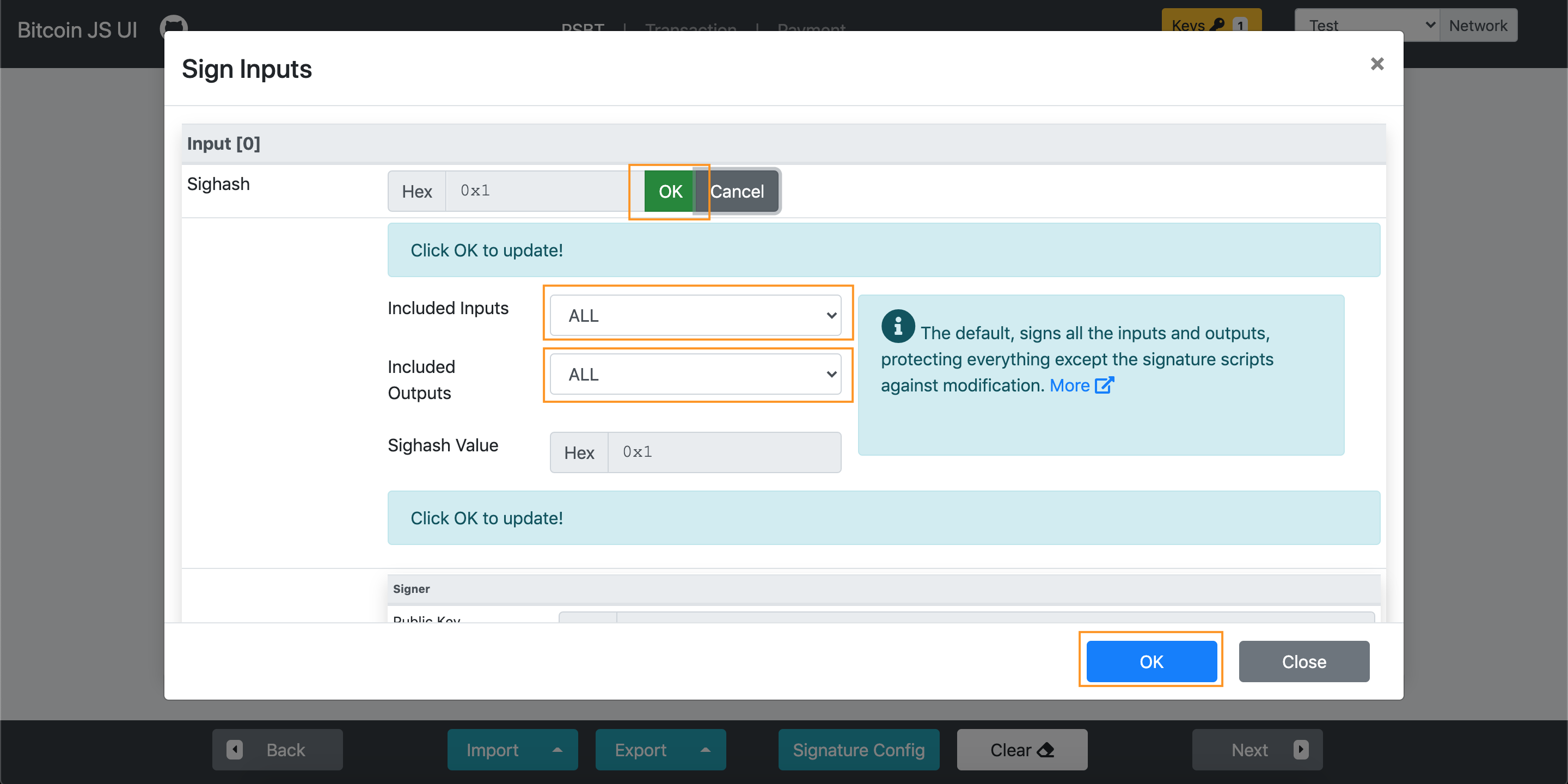

  • click the More button for the Sighash input
  • for SIGHASH_ALL, leave the values as they are and click the green OK button
  • repeat the process for the second Input. Scroll down to see the second Input
  • click the OK button for the pop-up
    • image

Sign PSBTs

PSBT 174 Test Vector:

Given the above updated PSBT, a signer that supports SIGHASH_ALL for P2PKH and P2WPKH spends and uses RFC6979 for nonce generation and has the following keys:

  • cP53pDbR5WtAD8dYAW9hhTjuvvTVaEiQBdrz9XPrgLBeRFiyCbQr (m/0'/0'/0')
  • cR6SXDoyfQrcp4piaiHE97Rsgta9mNhGTen9XeonVgwsh4iSgw6d (m/0'/0'/2')

Sign the PSBT - Signer One

After the PSBT was updated, we can move to the Sign phase.

Steps:

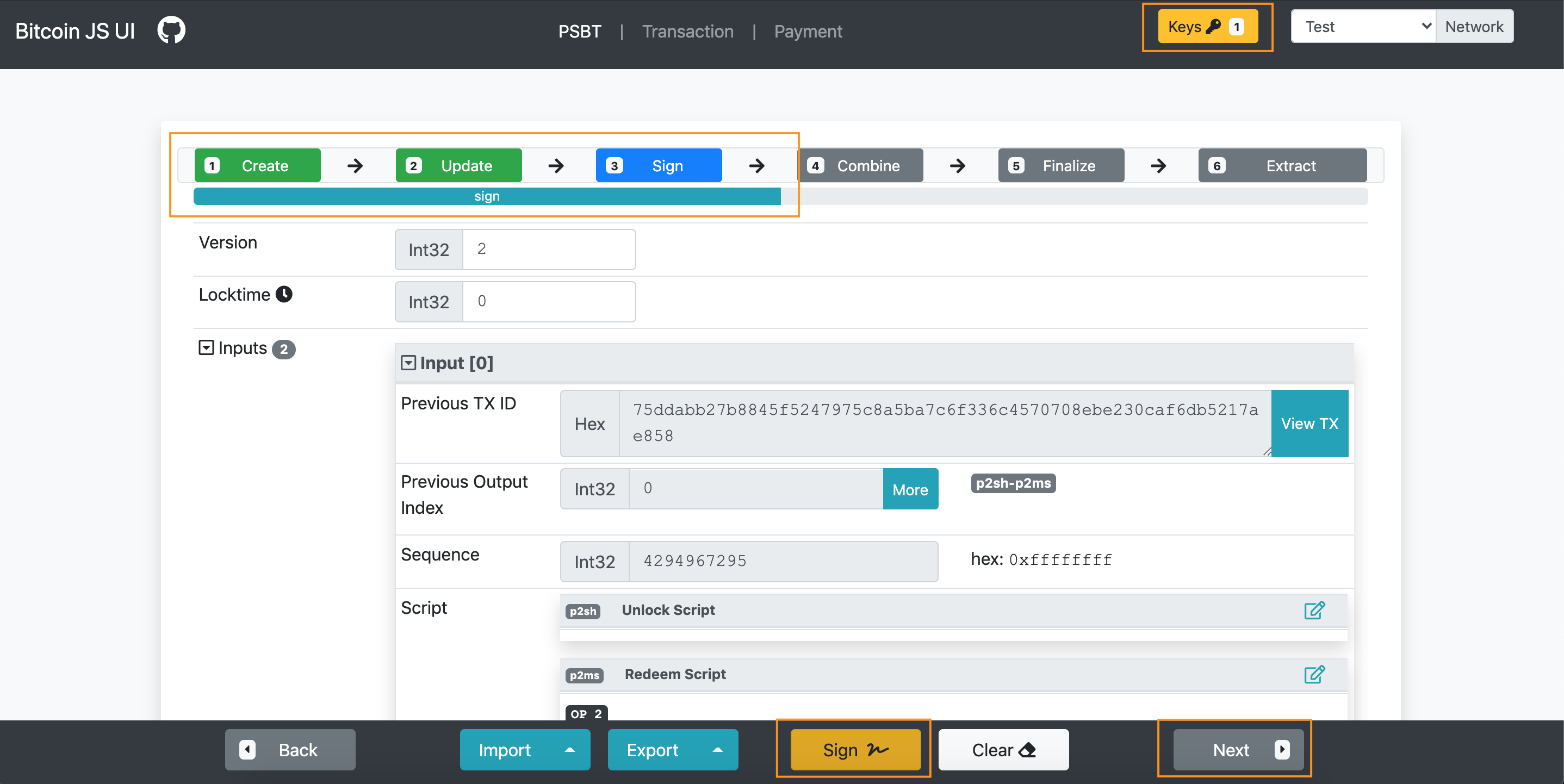

  • if the Signer is the same as the Updater then click the Next button
  • if the Signer and the Updater are different, then Updater must Export the PSBT and the Signer must Import back
    • image

Add Keys for signing

Steps:

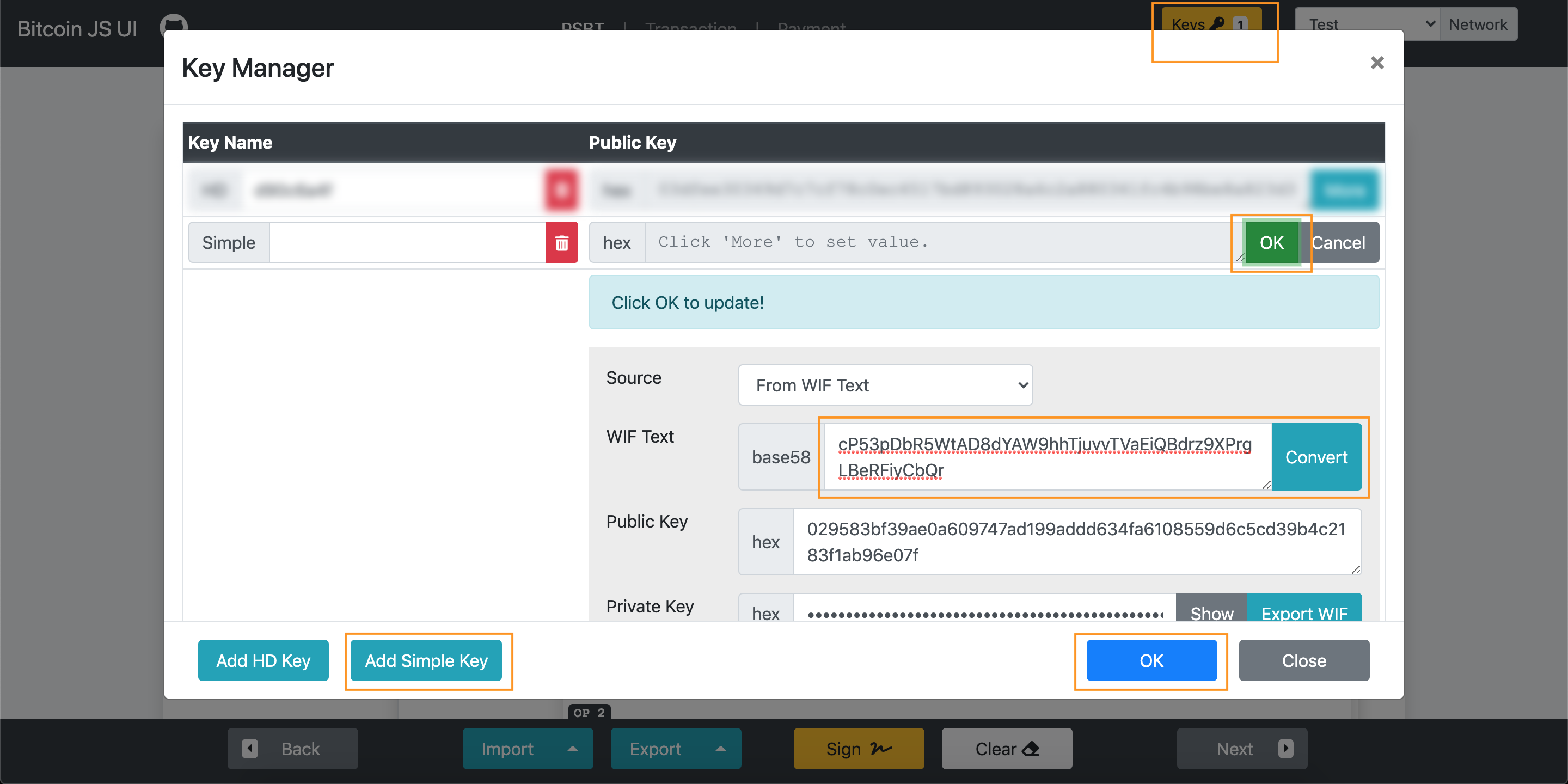

  • click on the Keys button on the top right of the page
  • click the Add Simple Key button, then click the More button for the newly added key
  • paste the above key (cP53pDbR5WtAD8dYAW9hhTjuvvTVaEiQBdrz9XPrgLBeRFiyCbQr) in the WIF Text field and click the Convert button
  • remember to click the green OK button
    • image
  • repeat the above steps for the second key (cR6SXDoyfQrcp4piaiHE97Rsgta9mNhGTen9XeonVgwsh4iSgw6d)
  • click the OK button on the pop-up. Now the Keys button should show the number 3 next to it.

Partially Sign Inputs

Steps:

  • click the Sign button
  • on the open pop-up select the Key for Signing (the first one configured above)
  • click the Sign All button
  • the Signature field for Input [0] should be filled in
  • do the same for the second key. It should sign Input [1]
  • click the OK button on the pop-up
    • image

PSBT 174 Test Vector:

must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f00000000000100bb0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f6187650000002202029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f473044022074018ad4180097b873323c0015720b3684cc8123891048e7dbcd9b55ad679c99022073d369b740e3eb53dcefa33823c8070514ca55a7dd9544f157c167913261118c01010304010000000104475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae2206029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f10d90c6a4f000000800000008000000080220602dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d710d90c6a4f0000008000000080010000800001012000c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e887220203089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc473044022062eb7a556107a7c73f45ac4ab5a1dddf6f7075fb1275969a7f383efff784bcb202200c05dbb7470dbf2f08557dd356c7325c1ed30913e996cd3840945db12228da5f010103040100000001042200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903010547522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae2206023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7310d90c6a4f000000800000008003000080220603089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc10d90c6a4f00000080000000800200008000220203a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca5877110d90c6a4f000000800000008004000080002202027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b5005109610d90c6a4f00000080000000800500008000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAEAuwIAAAABqtc5MQGL0l+ErkALaISL4J23BurCrBgpi6vucatlb4sAAAAASEcwRAIgWPb8fGoz4bMVSNSByCbAFb0wE1qtQs1neQ2rZtKtJDsCIEoc7SYExnNbY5PltBaR3XiwDwxZQvufdRhW+qk4FX26Af7///8CgPD6AgAAAAAXqRQPuUY0IWlrgsgzryQceMF9295JNIfQ8gonAQAAABepFCnKdPigj4GZlCgYXJe12FLkBj9hh2UAAAAiAgKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgf0cwRAIgdAGK1BgAl7hzMjwAFXILNoTMgSOJEEjn282bVa1nnJkCIHPTabdA4+tT3O+jOCPIBwUUylWn3ZVE8VfBZ5EyYRGMAQEDBAEAAAABBEdSIQKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgfyEC2rYf9JoU22p9ArDNH7t4/EsYMStbTlTa5Nui+/71NtdSriIGApWDvzmuCmCXR60Zmt3WNPphCFWdbFzTm0whg/GrluB/ENkMak8AAACAAAAAgAAAAIAiBgLath/0mhTban0CsM0fu3j8SxgxK1tOVNrk26L7/vU21xDZDGpPAAAAgAAAAIABAACAAAEBIADC6wsAAAAAF6kUt/X69A49QKWkWbHbNTXyty+pIeiHIgIDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtxHMEQCIGLrelVhB6fHP0WsSrWh3d9vcHX7EnWWmn84Pv/3hLyyAiAMBdu3Rw2/LwhVfdNWxzJcHtMJE+mWzThAlF2xIijaXwEBAwQBAAAAAQQiACCMI1MXN0O1ld+0oHtyuo5C43l9p06H/n2ddJfjsgKJAwEFR1IhAwidwQx6xttU+RMpr2FzM9s4jOrQwjH3IzedG5kDCwLcIQI63ZBPPW3PWd25BrDe4jUpt/+57VDl6GFRkmhgIh8Oc1KuIgYCOt2QTz1tz1nduQaw3uI1Kbf/ue1Q5ehhUZJoYCIfDnMQ2QxqTwAAAIAAAACAAwAAgCIGAwidwQx6xttU+RMpr2FzM9s4jOrQwjH3IzedG5kDCwLcENkMak8AAACAAAAAgAIAAIAAIgIDqaTDf1mW06ol26xrVwrwZQOUSSlCRgs1R1Ptnuylh3EQ2QxqTwAAAIAAAACABAAAgAAiAgJ/Y5l1fS7/VaE2rQLGhLGDi2VW5fG2s0KCqUtrUAUQlhDZDGpPAAAAgAAAAIAFAACAAA==

Sign the PSBT - Signer Two

PSBT 174 Test Vector:

Given the above updated PSBT, a signer with the following keys:

  • cT7J9YpCwY3AVRFSjN6ukeEeWY6mhpbJPxRaDaP5QTdygQRxP9Au (m/0'/0'/1')
  • cNBc3SWUip9PPm1GjRoLEJT6T41iNzCYtD7qro84FMnM5zEqeJsE (m/0'/0'/3')

Note

  • Signer Two uses the PSBT created at the Update phase, not the PSBT signed by Signer One
  • Repeat the steps Sign the PSBT - Signer One but use the keys for Signer Two (cT7J9YpCwY3AVRFSjN6ukeEeWY6mhpbJPxRaDaP5QTdygQRxP9Au, cT7J9YpCwY3AVRFSjN6ukeEeWY6mhpbJPxRaDaP5QTdygQRxP9Au)

PSBT 174 Test Vector:

must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f00000000000100bb0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f618765000000220202dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d7483045022100f61038b308dc1da865a34852746f015772934208c6d24454393cd99bdf2217770220056e675a675a6d0a02b85b14e5e29074d8a25a9b5760bea2816f661910a006ea01010304010000000104475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae2206029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f10d90c6a4f000000800000008000000080220602dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d710d90c6a4f0000008000000080010000800001012000c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e8872202023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e73473044022065f45ba5998b59a27ffe1a7bed016af1f1f90d54b3aa8f7450aa5f56a25103bd02207f724703ad1edb96680b284b56d4ffcb88f7fb759eabbe08aa30f29b851383d2010103040100000001042200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903010547522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae2206023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7310d90c6a4f000000800000008003000080220603089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc10d90c6a4f00000080000000800200008000220203a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca5877110d90c6a4f000000800000008004000080002202027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b5005109610d90c6a4f00000080000000800500008000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAEAuwIAAAABqtc5MQGL0l+ErkALaISL4J23BurCrBgpi6vucatlb4sAAAAASEcwRAIgWPb8fGoz4bMVSNSByCbAFb0wE1qtQs1neQ2rZtKtJDsCIEoc7SYExnNbY5PltBaR3XiwDwxZQvufdRhW+qk4FX26Af7///8CgPD6AgAAAAAXqRQPuUY0IWlrgsgzryQceMF9295JNIfQ8gonAQAAABepFCnKdPigj4GZlCgYXJe12FLkBj9hh2UAAAAiAgLath/0mhTban0CsM0fu3j8SxgxK1tOVNrk26L7/vU210gwRQIhAPYQOLMI3B2oZaNIUnRvAVdyk0IIxtJEVDk82ZvfIhd3AiAFbmdaZ1ptCgK4WxTl4pB02KJam1dgvqKBb2YZEKAG6gEBAwQBAAAAAQRHUiEClYO/Oa4KYJdHrRma3dY0+mEIVZ1sXNObTCGD8auW4H8hAtq2H/SaFNtqfQKwzR+7ePxLGDErW05U2uTbovv+9TbXUq4iBgKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgfxDZDGpPAAAAgAAAAIAAAACAIgYC2rYf9JoU22p9ArDNH7t4/EsYMStbTlTa5Nui+/71NtcQ2QxqTwAAAIAAAACAAQAAgAABASAAwusLAAAAABepFLf1+vQOPUClpFmx2zU18rcvqSHohyICAjrdkE89bc9Z3bkGsN7iNSm3/7ntUOXoYVGSaGAiHw5zRzBEAiBl9FulmYtZon/+GnvtAWrx8fkNVLOqj3RQql9WolEDvQIgf3JHA60e25ZoCyhLVtT/y4j3+3Weq74IqjDym4UTg9IBAQMEAQAAAAEEIgAgjCNTFzdDtZXftKB7crqOQuN5fadOh/59nXSX47ICiQMBBUdSIQMIncEMesbbVPkTKa9hczPbOIzq0MIx9yM3nRuZAwsC3CECOt2QTz1tz1nduQaw3uI1Kbf/ue1Q5ehhUZJoYCIfDnNSriIGAjrdkE89bc9Z3bkGsN7iNSm3/7ntUOXoYVGSaGAiHw5zENkMak8AAACAAAAAgAMAAIAiBgMIncEMesbbVPkTKa9hczPbOIzq0MIx9yM3nRuZAwsC3BDZDGpPAAAAgAAAAIACAACAACICA6mkw39ZltOqJdusa1cK8GUDlEkpQkYLNUdT7Z7spYdxENkMak8AAACAAAAAgAQAAIAAIgICf2OZdX0u/1WhNq0CxoSxg4tlVuXxtrNCgqlLa1AFEJYQ2QxqTwAAAIAAAACABQAAgAA=

Combine PSBTs

PSBT 174 Test Vector:

Given both of the above PSBTs, a combiner must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f00000000000100bb0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f6187650000002202029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f473044022074018ad4180097b873323c0015720b3684cc8123891048e7dbcd9b55ad679c99022073d369b740e3eb53dcefa33823c8070514ca55a7dd9544f157c167913261118c01220202dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d7483045022100f61038b308dc1da865a34852746f015772934208c6d24454393cd99bdf2217770220056e675a675a6d0a02b85b14e5e29074d8a25a9b5760bea2816f661910a006ea01010304010000000104475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae2206029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f10d90c6a4f000000800000008000000080220602dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d710d90c6a4f0000008000000080010000800001012000c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e887220203089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc473044022062eb7a556107a7c73f45ac4ab5a1dddf6f7075fb1275969a7f383efff784bcb202200c05dbb7470dbf2f08557dd356c7325c1ed30913e996cd3840945db12228da5f012202023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e73473044022065f45ba5998b59a27ffe1a7bed016af1f1f90d54b3aa8f7450aa5f56a25103bd02207f724703ad1edb96680b284b56d4ffcb88f7fb759eabbe08aa30f29b851383d2010103040100000001042200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903010547522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae2206023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7310d90c6a4f000000800000008003000080220603089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc10d90c6a4f00000080000000800200008000220203a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca5877110d90c6a4f000000800000008004000080002202027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b5005109610d90c6a4f00000080000000800500008000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAEAuwIAAAABqtc5MQGL0l+ErkALaISL4J23BurCrBgpi6vucatlb4sAAAAASEcwRAIgWPb8fGoz4bMVSNSByCbAFb0wE1qtQs1neQ2rZtKtJDsCIEoc7SYExnNbY5PltBaR3XiwDwxZQvufdRhW+qk4FX26Af7///8CgPD6AgAAAAAXqRQPuUY0IWlrgsgzryQceMF9295JNIfQ8gonAQAAABepFCnKdPigj4GZlCgYXJe12FLkBj9hh2UAAAAiAgKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgf0cwRAIgdAGK1BgAl7hzMjwAFXILNoTMgSOJEEjn282bVa1nnJkCIHPTabdA4+tT3O+jOCPIBwUUylWn3ZVE8VfBZ5EyYRGMASICAtq2H/SaFNtqfQKwzR+7ePxLGDErW05U2uTbovv+9TbXSDBFAiEA9hA4swjcHahlo0hSdG8BV3KTQgjG0kRUOTzZm98iF3cCIAVuZ1pnWm0KArhbFOXikHTYolqbV2C+ooFvZhkQoAbqAQEDBAEAAAABBEdSIQKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgfyEC2rYf9JoU22p9ArDNH7t4/EsYMStbTlTa5Nui+/71NtdSriIGApWDvzmuCmCXR60Zmt3WNPphCFWdbFzTm0whg/GrluB/ENkMak8AAACAAAAAgAAAAIAiBgLath/0mhTban0CsM0fu3j8SxgxK1tOVNrk26L7/vU21xDZDGpPAAAAgAAAAIABAACAAAEBIADC6wsAAAAAF6kUt/X69A49QKWkWbHbNTXyty+pIeiHIgIDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtxHMEQCIGLrelVhB6fHP0WsSrWh3d9vcHX7EnWWmn84Pv/3hLyyAiAMBdu3Rw2/LwhVfdNWxzJcHtMJE+mWzThAlF2xIijaXwEiAgI63ZBPPW3PWd25BrDe4jUpt/+57VDl6GFRkmhgIh8Oc0cwRAIgZfRbpZmLWaJ//hp77QFq8fH5DVSzqo90UKpfVqJRA70CIH9yRwOtHtuWaAsoS1bU/8uI9/t1nqu+CKow8puFE4PSAQEDBAEAAAABBCIAIIwjUxc3Q7WV37Sge3K6jkLjeX2nTof+fZ10l+OyAokDAQVHUiEDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtwhAjrdkE89bc9Z3bkGsN7iNSm3/7ntUOXoYVGSaGAiHw5zUq4iBgI63ZBPPW3PWd25BrDe4jUpt/+57VDl6GFRkmhgIh8OcxDZDGpPAAAAgAAAAIADAACAIgYDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtwQ2QxqTwAAAIAAAACAAgAAgAAiAgOppMN/WZbTqiXbrGtXCvBlA5RJKUJGCzVHU+2e7KWHcRDZDGpPAAAAgAAAAIAEAACAACICAn9jmXV9Lv9VoTatAsaEsYOLZVbl8bazQoKpS2tQBRCWENkMak8AAACAAAAAgAUAAIAA

After the PSBTs have been Signed, we can move to the Combine phase.

Steps:

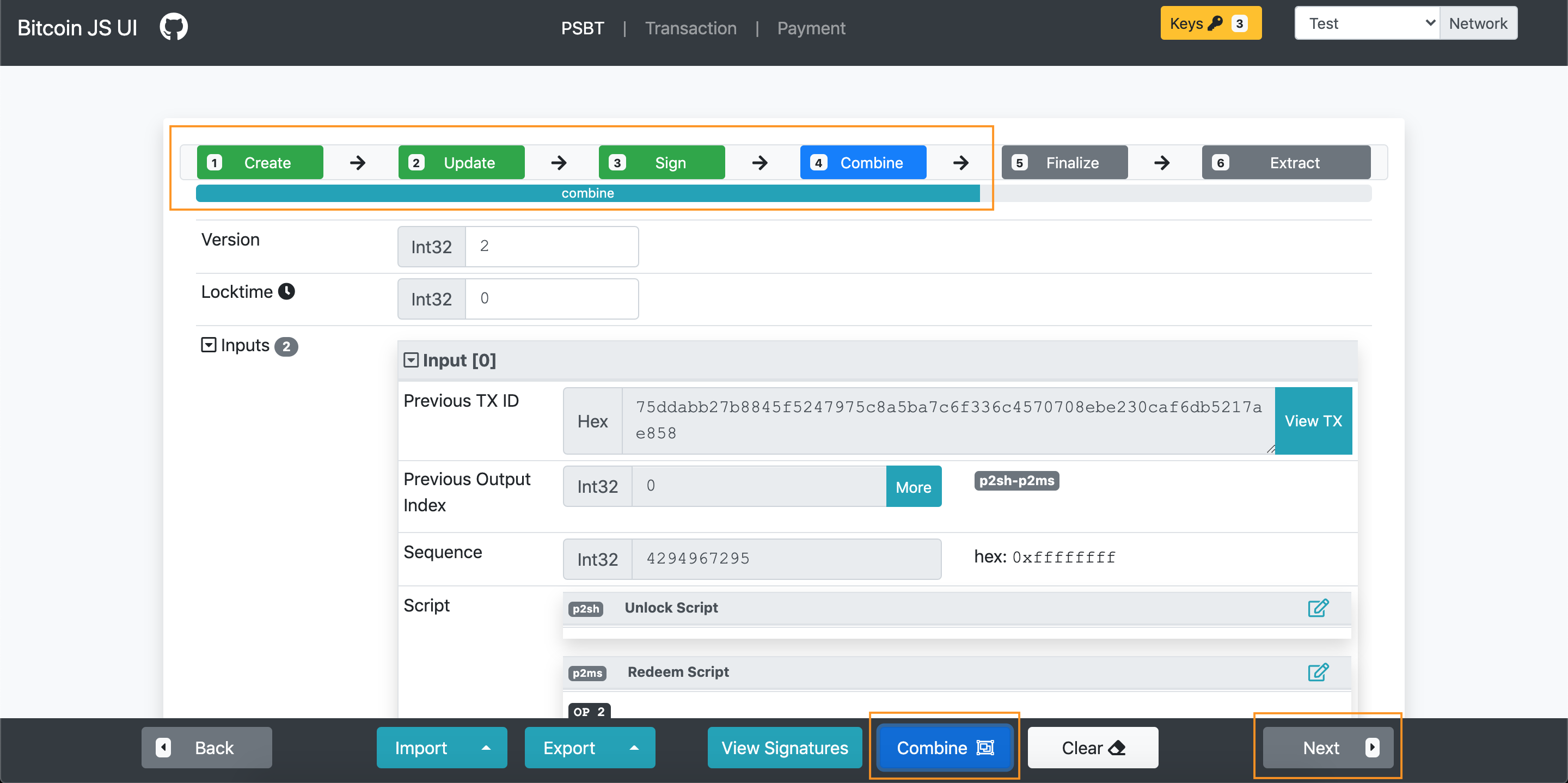

  • if the Combiner is the same as one of the Signers then click the Next button
  • if the Combiner and the Signers are different, then
    • the Combiner must navigate to the Combine phase (click on the Combine button at the top)
    • the Combiner must first Import one of the signed PSBTs
  • click on the Combine button at the bottom of the page
    • image

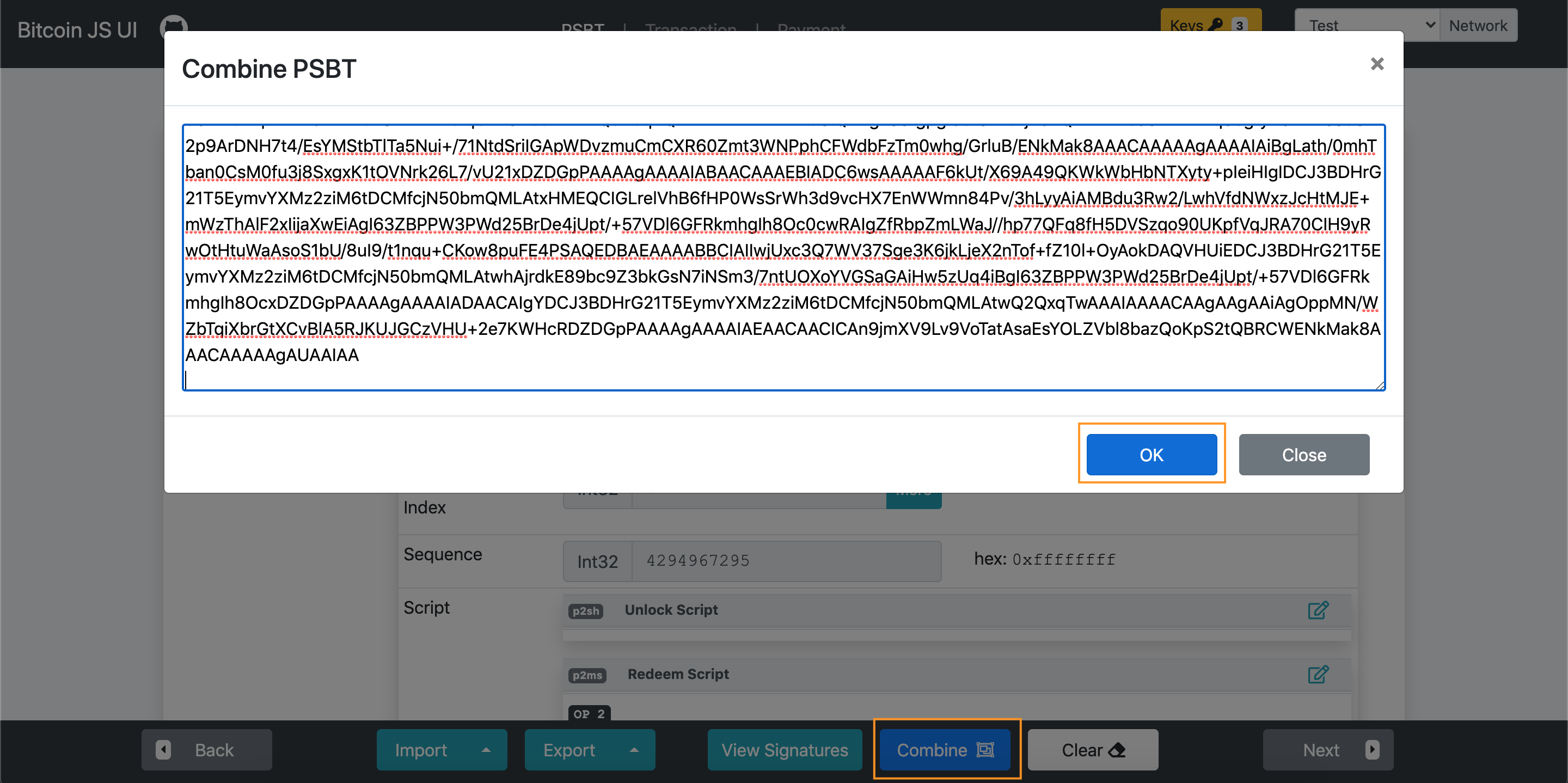

  • on the open pop-up paste the Base64 text of the other PSBT and click the OK button
    • image
  • the PSBTs from the two Signers have now been Combined

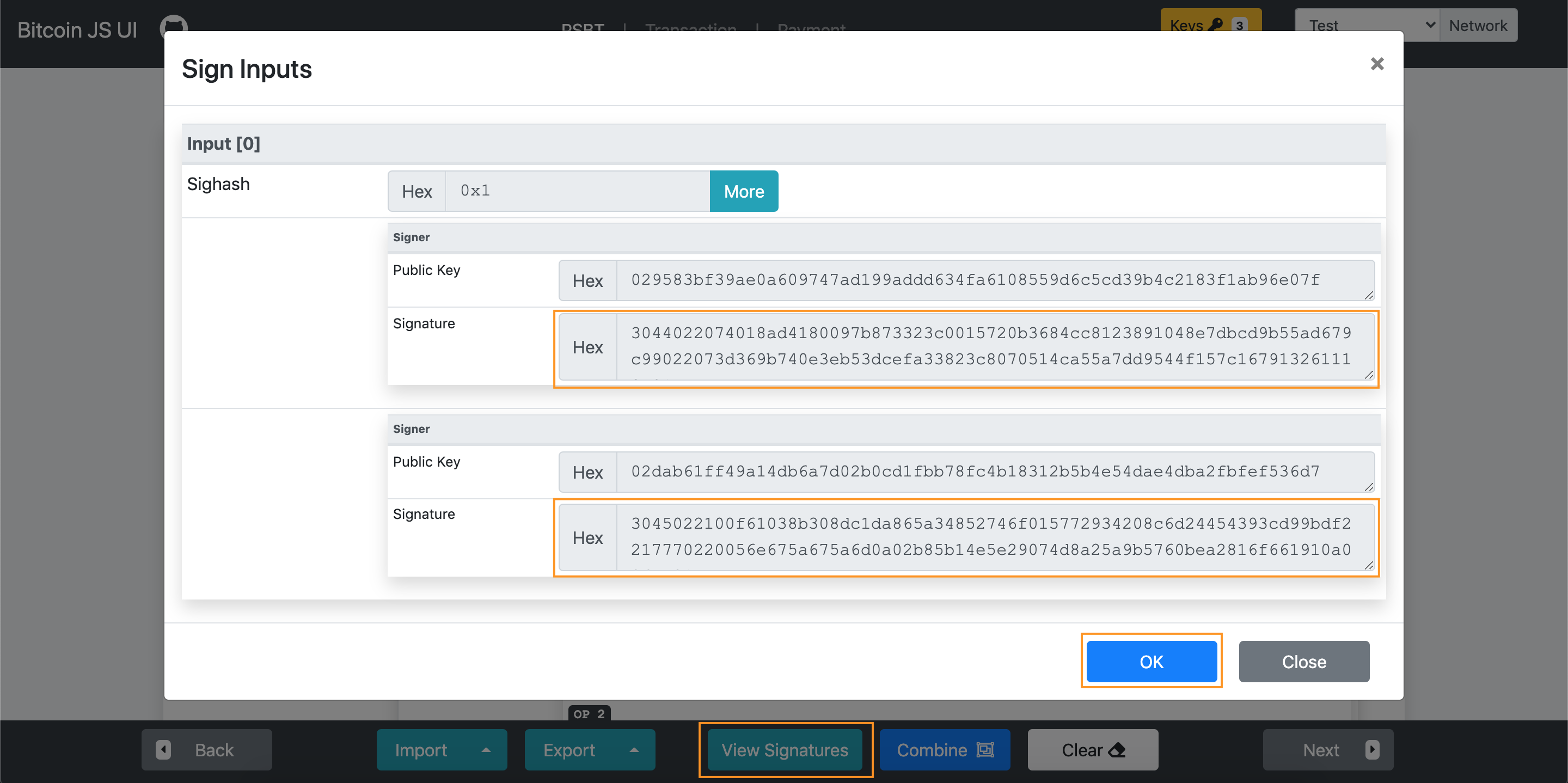

  • click on the View Signatures button at the bottom of the page in order to check that all signatures are present (scroll down to check the second input)
    • image

Finalize the PSBT

PSBT 174 Test Vector:

Given the above PSBT, an input finalizer must create this PSBT:

  • Bytes in Hex:
    70736274ff01009a020000000258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd750000000000ffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d0100000000ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f00000000000100bb0200000001aad73931018bd25f84ae400b68848be09db706eac2ac18298babee71ab656f8b0000000048473044022058f6fc7c6a33e1b31548d481c826c015bd30135aad42cd67790dab66d2ad243b02204a1ced2604c6735b6393e5b41691dd78b00f0c5942fb9f751856faa938157dba01feffffff0280f0fa020000000017a9140fb9463421696b82c833af241c78c17ddbde493487d0f20a270100000017a91429ca74f8a08f81999428185c97b5d852e4063f6187650000000107da00473044022074018ad4180097b873323c0015720b3684cc8123891048e7dbcd9b55ad679c99022073d369b740e3eb53dcefa33823c8070514ca55a7dd9544f157c167913261118c01483045022100f61038b308dc1da865a34852746f015772934208c6d24454393cd99bdf2217770220056e675a675a6d0a02b85b14e5e29074d8a25a9b5760bea2816f661910a006ea01475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752ae0001012000c2eb0b0000000017a914b7f5faf40e3d40a5a459b1db3535f2b72fa921e8870107232200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b20289030108da0400473044022062eb7a556107a7c73f45ac4ab5a1dddf6f7075fb1275969a7f383efff784bcb202200c05dbb7470dbf2f08557dd356c7325c1ed30913e996cd3840945db12228da5f01473044022065f45ba5998b59a27ffe1a7bed016af1f1f90d54b3aa8f7450aa5f56a25103bd02207f724703ad1edb96680b284b56d4ffcb88f7fb759eabbe08aa30f29b851383d20147522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae00220203a9a4c37f5996d3aa25dbac6b570af0650394492942460b354753ed9eeca5877110d90c6a4f000000800000008004000080002202027f6399757d2eff55a136ad02c684b1838b6556e5f1b6b34282a94b6b5005109610d90c6a4f00000080000000800500008000
  • Base64 String:
    cHNidP8BAJoCAAAAAljoeiG1ba8MI76OcHBFbDNvfLqlyHV5JPVFiHuyq911AAAAAAD/////g40EJ9DsZQpoqka7CwmK6kQiwHGyyng1Kgd5WdB86h0BAAAAAP////8CcKrwCAAAAAAWABTYXCtx0AYLCcmIauuBXlCZHdoSTQDh9QUAAAAAFgAUAK6pouXw+HaliN9VRuh0LR2HAI8AAAAAAAEAuwIAAAABqtc5MQGL0l+ErkALaISL4J23BurCrBgpi6vucatlb4sAAAAASEcwRAIgWPb8fGoz4bMVSNSByCbAFb0wE1qtQs1neQ2rZtKtJDsCIEoc7SYExnNbY5PltBaR3XiwDwxZQvufdRhW+qk4FX26Af7///8CgPD6AgAAAAAXqRQPuUY0IWlrgsgzryQceMF9295JNIfQ8gonAQAAABepFCnKdPigj4GZlCgYXJe12FLkBj9hh2UAAAABB9oARzBEAiB0AYrUGACXuHMyPAAVcgs2hMyBI4kQSOfbzZtVrWecmQIgc9Npt0Dj61Pc76M4I8gHBRTKVafdlUTxV8FnkTJhEYwBSDBFAiEA9hA4swjcHahlo0hSdG8BV3KTQgjG0kRUOTzZm98iF3cCIAVuZ1pnWm0KArhbFOXikHTYolqbV2C+ooFvZhkQoAbqAUdSIQKVg785rgpgl0etGZrd1jT6YQhVnWxc05tMIYPxq5bgfyEC2rYf9JoU22p9ArDNH7t4/EsYMStbTlTa5Nui+/71NtdSrgABASAAwusLAAAAABepFLf1+vQOPUClpFmx2zU18rcvqSHohwEHIyIAIIwjUxc3Q7WV37Sge3K6jkLjeX2nTof+fZ10l+OyAokDAQjaBABHMEQCIGLrelVhB6fHP0WsSrWh3d9vcHX7EnWWmn84Pv/3hLyyAiAMBdu3Rw2/LwhVfdNWxzJcHtMJE+mWzThAlF2xIijaXwFHMEQCIGX0W6WZi1mif/4ae+0BavHx+Q1Us6qPdFCqX1aiUQO9AiB/ckcDrR7blmgLKEtW1P/LiPf7dZ6rvgiqMPKbhROD0gFHUiEDCJ3BDHrG21T5EymvYXMz2ziM6tDCMfcjN50bmQMLAtwhAjrdkE89bc9Z3bkGsN7iNSm3/7ntUOXoYVGSaGAiHw5zUq4AIgIDqaTDf1mW06ol26xrVwrwZQOUSSlCRgs1R1Ptnuylh3EQ2QxqTwAAAIAAAACABAAAgAAiAgJ/Y5l1fS7/VaE2rQLGhLGDi2VW5fG2s0KCqUtrUAUQlhDZDGpPAAAAgAAAAIAFAACAAA==

After the PSBTs have been combined, we can move to the Finalize phase.

Steps:

  • click the Next button

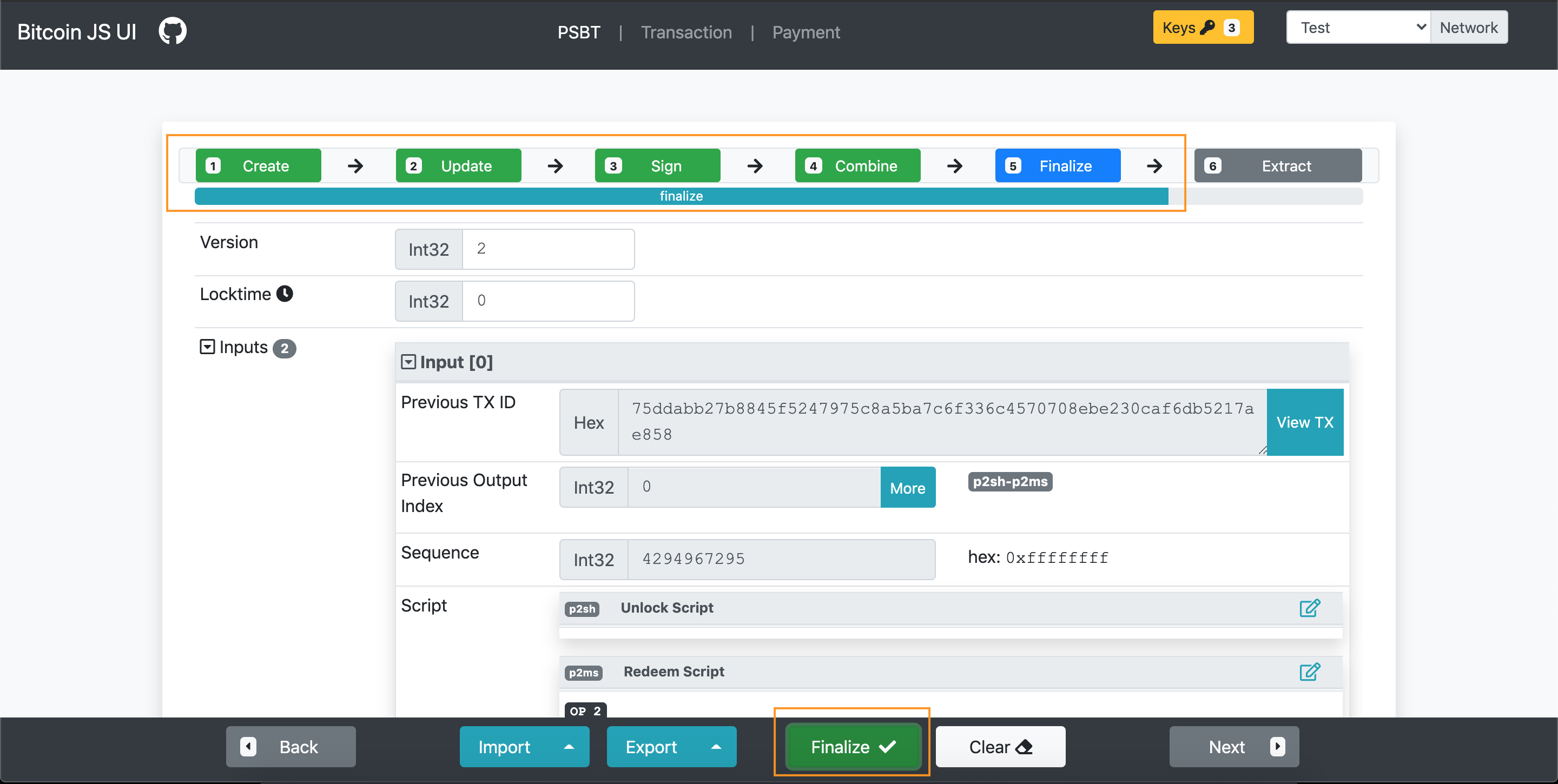

  • click the Finalize button
    • image

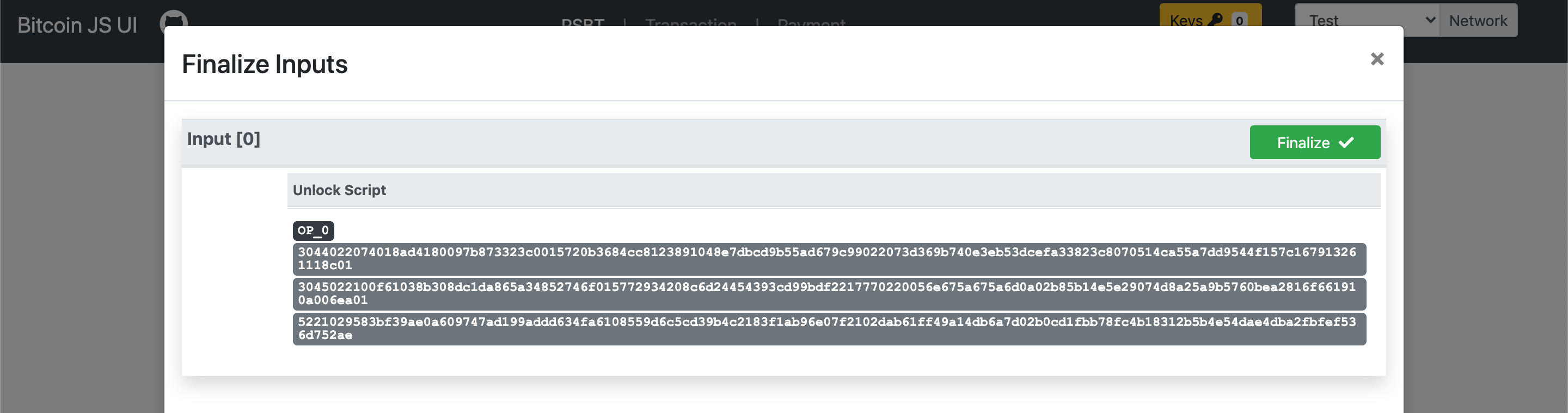

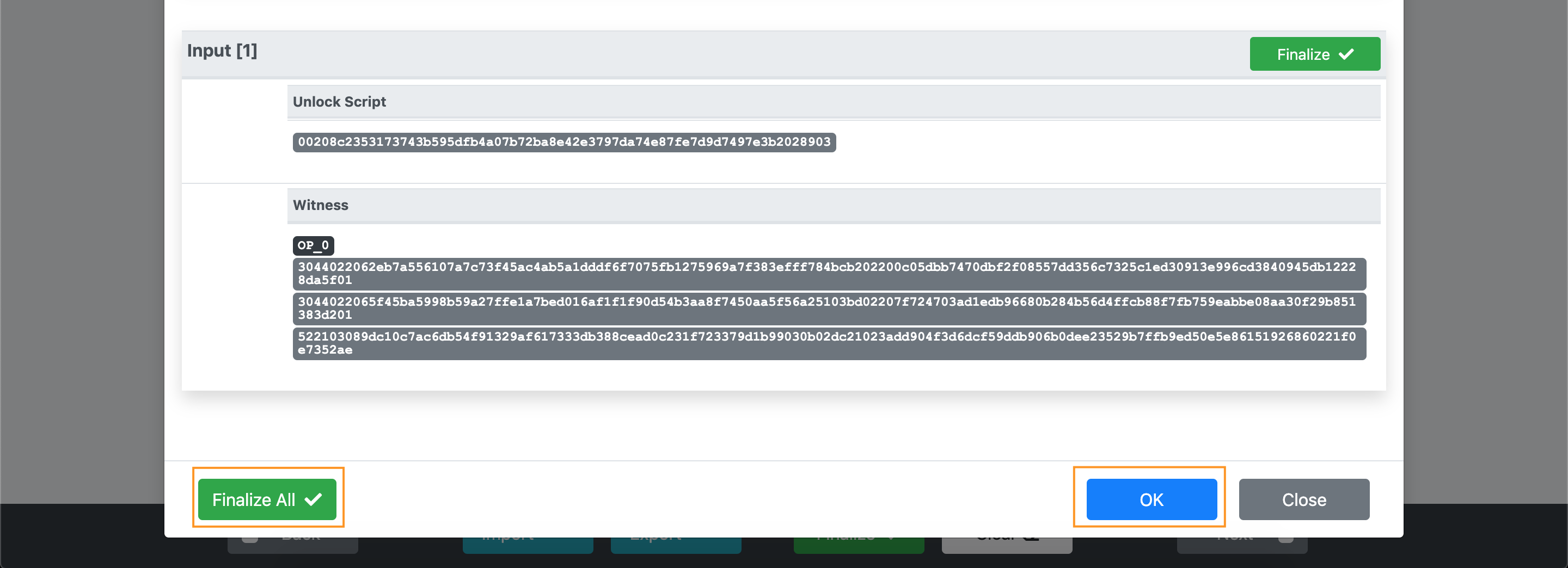

  • on the pop-up click the Finalize All button. It is also possible to only Finalize one of the Inputs
    • image
    • image
  • the finalized scripts should now be visible

Extract the Transaction

PSBT 174 Test Vector:

Given the above PSBT, a transaction extractor must create this Bitcoin transaction:

  • Bytes in Hex:
    0200000000010258e87a21b56daf0c23be8e7070456c336f7cbaa5c8757924f545887bb2abdd7500000000da00473044022074018ad4180097b873323c0015720b3684cc8123891048e7dbcd9b55ad679c99022073d369b740e3eb53dcefa33823c8070514ca55a7dd9544f157c167913261118c01483045022100f61038b308dc1da865a34852746f015772934208c6d24454393cd99bdf2217770220056e675a675a6d0a02b85b14e5e29074d8a25a9b5760bea2816f661910a006ea01475221029583bf39ae0a609747ad199addd634fa6108559d6c5cd39b4c2183f1ab96e07f2102dab61ff49a14db6a7d02b0cd1fbb78fc4b18312b5b4e54dae4dba2fbfef536d752aeffffffff838d0427d0ec650a68aa46bb0b098aea4422c071b2ca78352a077959d07cea1d01000000232200208c2353173743b595dfb4a07b72ba8e42e3797da74e87fe7d9d7497e3b2028903ffffffff0270aaf00800000000160014d85c2b71d0060b09c9886aeb815e50991dda124d00e1f5050000000016001400aea9a2e5f0f876a588df5546e8742d1d87008f000400473044022062eb7a556107a7c73f45ac4ab5a1dddf6f7075fb1275969a7f383efff784bcb202200c05dbb7470dbf2f08557dd356c7325c1ed30913e996cd3840945db12228da5f01473044022065f45ba5998b59a27ffe1a7bed016af1f1f90d54b3aa8f7450aa5f56a25103bd02207f724703ad1edb96680b284b56d4ffcb88f7fb759eabbe08aa30f29b851383d20147522103089dc10c7ac6db54f91329af617333db388cead0c231f723379d1b99030b02dc21023add904f3d6dcf59ddb906b0dee23529b7ffb9ed50e5e86151926860221f0e7352ae00000000

After the PSBT has been finalized, we can move to the Extract phase.

Steps:

  • click the Next button
    • image

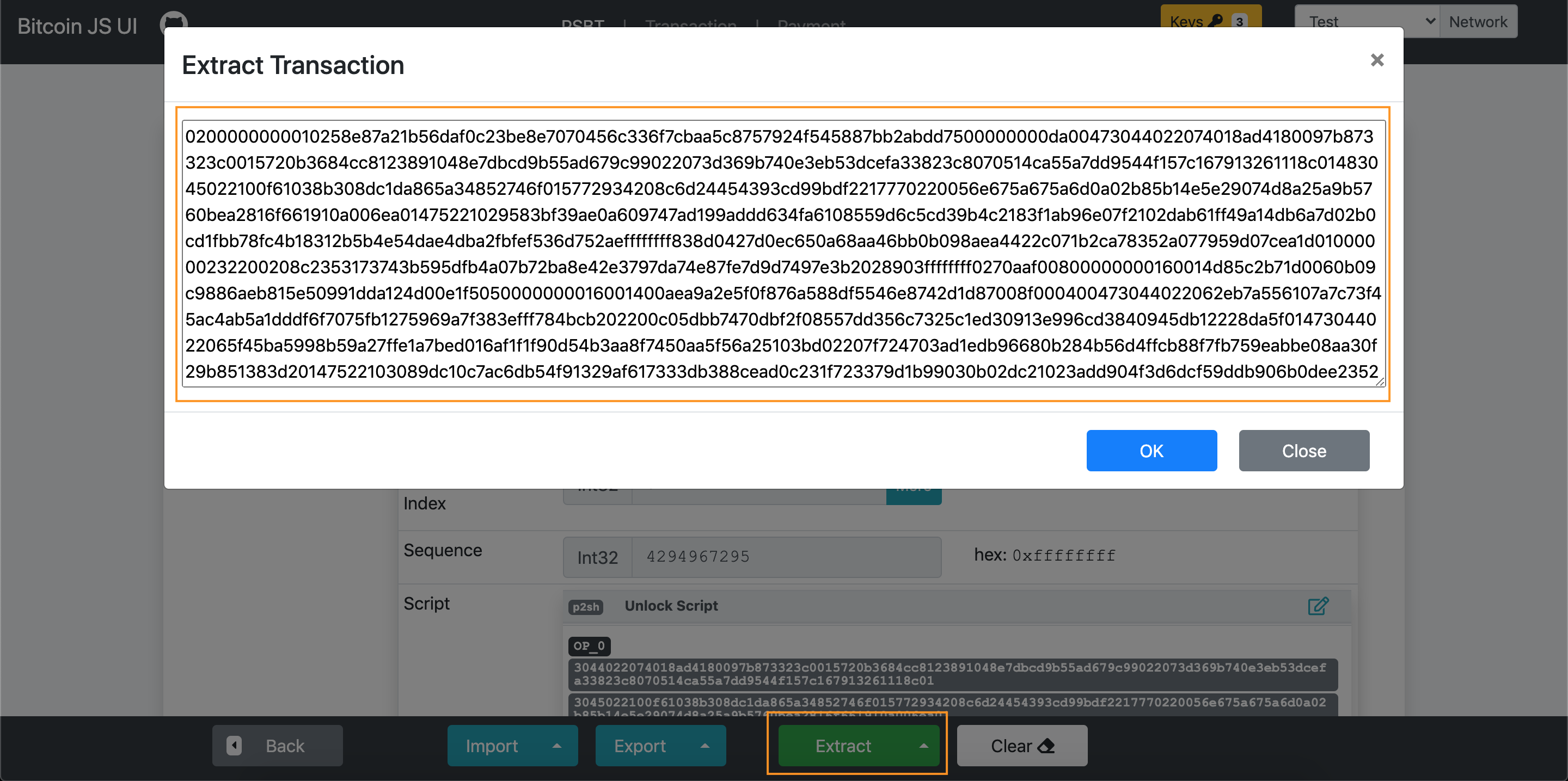

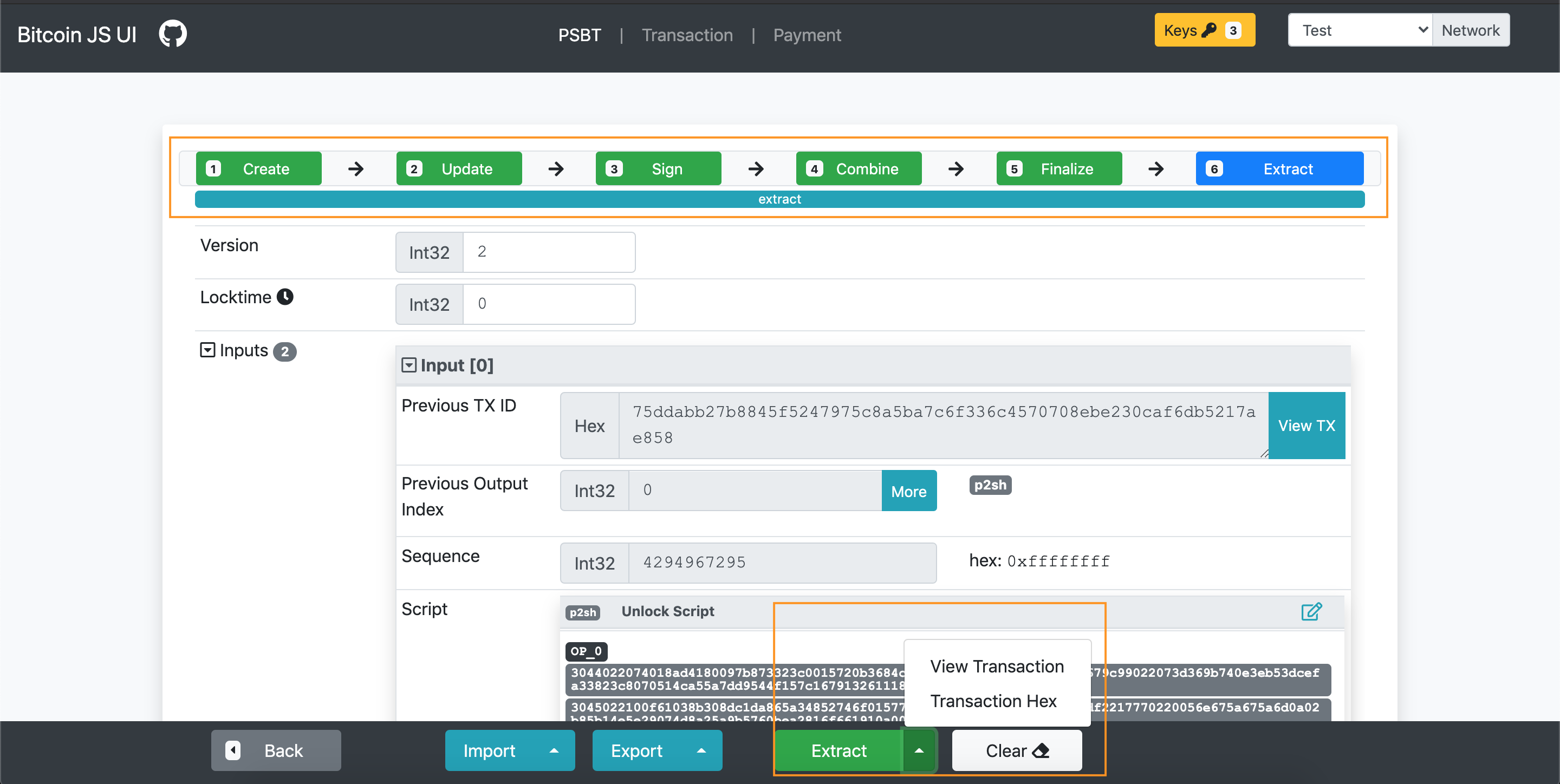

  • click the Extract button at the bottom of the page. It is also possible to View Transaction.
    • image
  • the Hex can be imported on the Transaction page (see top menu)
