Requirements:

• Docker
• Docker Compose

Docker compose:

• php:8.3-fpm-alpine with composer:latest
• nginx:alpine3.20-slim
• mariadb:11.5.2
• rabbitmq:4.0.2-management-alpine
• redis:7.4.1-alpine
• swaggerapi/swagger-ui:v5.17.14
• fluent/fluent-bit:3.1
• docker.elastic.co/elasticsearch/elasticsearch:8.15.2
• docker.elastic.co/kibana/kibana:8.15.2
• wurstmeister/kafka:2.13-2.8.1
• zookeeper:3.9.2
• provectuslabs/kafka-ui:v0.7.2

The Environment:

• API: http://localhost:8000
• API Documentation: http://localhost:8001
• ElasticSearch: http://localhost:9200
• Kibana: http://localhost:5601
• Kafka UI: http://localhost:8090
• RabbidMQ: http://localhost:15672 user: guest password: guest
• MariaDB: host: localhost port: 3306 user: root password: root
• Redis: host: localhost port: 6379
• Kafka host: localhost port: 9092

Workflow

Available make commands:

You can view this info by running make or make help

build                Build/Rebuild project
cc                   Clear the cache. Optional parameter "env", default "dev". Example: make cc env=prod
composer-install     Composer install
composer-update      Composer update
console              Symfony console, Optional parameter "command". Example: make console command=debug:autowiring
consume-events       Consume events from kafka
event-log            Tail event log. Optional parameter "env", default "dev". Example: make event-log env=prod
help                 Show help
phpcs                Run phpcs PSR12
phpstan              Run phpstan level 6
purge-queues         Purge rabbitmq queues
purge-test-topic     Delete messages test topic
purge-topic          Delete messages topic
rebuild-container    Rebuild containers
rebuild-db           Rebuild Mysql. Optional parameter "env", default "dev". Example: make rebuild-db env=test
rebuild-es           Rebuild ElasticSearch data. Optional parameter "env", default "dev". Example: make rebuild-db env=test
redis-flush          Flush redis
restart              Restart containers
shell                Interactive shell inside docker
status               Show containers status
stop                 Stop containers
test-acceptance      Run unit testing
test-unit            Run unit testing
up                   Start containers

Installation:

Clone this repository

$ git clone [email protected]:albertcolom/skeleton-symfony.git

Build the project

$ make build

Start environment

$ make up

Routes:

$ bin/console debug:router

 ---------------- -------- -------- ------ --------------------------
  Name             Method   Scheme   Host   Path
 ---------------- -------- -------- ------ --------------------------
  get_v1_foo       GET      ANY      ANY    /v1/foo/{fooId}
  get_v1_all_foo   GET      ANY      ANY    /v1/foo
  put_v1_foo       PUT      ANY      ANY    /v1/foo/{fooId}
  delete_v1_foo    DELETE   ANY      ANY    /v1/foo/{fooId}
  post_v1_foo      POST     ANY      ANY    /v1/foo
 ---------------- -------- -------- ------ --------------------------

Buses:

We have 4 different types of bus implemented with Symfony Messenger

• Synchronous
  • CommandBus: public function dispatch(Command $command): void
  • QueryBus: public function ask(Query $query): Response
  • CacheQueryBus: public function ask(Query $query, int $ttl = self::TTL_HOUR): Response
• Asynchronous
  • EventBus: public function publish(DomainEvent ...$domainEvents): void

Process async events:

Command to consume RabbidMQ messages from ampqp transport

$ make consume-events

We can find 3 listeners listening in charge of clearing the cache and updating the projection in the reading model:

• OnFooWasCreated
• OnFooWasUpdated
• OnFooWasRemoved

Domain event:

Example of a serialized domain event when a Foo was created

{
  "payload": {
    "foo_id": "7cc900eb-663a-4292-876d-5a77eeefade1",
    "name": "Some foo name",
    "created_at": "2022-03-06 17:03:25",
    "occurred_on": "2022-03-06 17:03:25"
  },
  "metadata": {
    "id": "53a4fabbb9ca462a872321814eee61ce",
    "name": "app.context.foo.domain.event.foo_was_created"
  }
}

Domain event logs

Monolog

We have a middleware to log domain events.
You can access the logs at the following path: /var/log/domain_event_{env}.log

$ make event-log

Logstash

We use the logstash to parse the logs and publish them to elasticsearch with the index domain-event-%{env}-%{+YYYY.MM.dd}
You can view the logs using kibana http://localhost:5601

Testing

Unit testing PHPUnit

$ make test-unit

Acceptance test Behat

$ make test-acceptance

Static Analysis Tool

PHPStan level 6

$ make phpstan

PHP Code Sniffer PSR 12

$ make phpcs

Screenshots

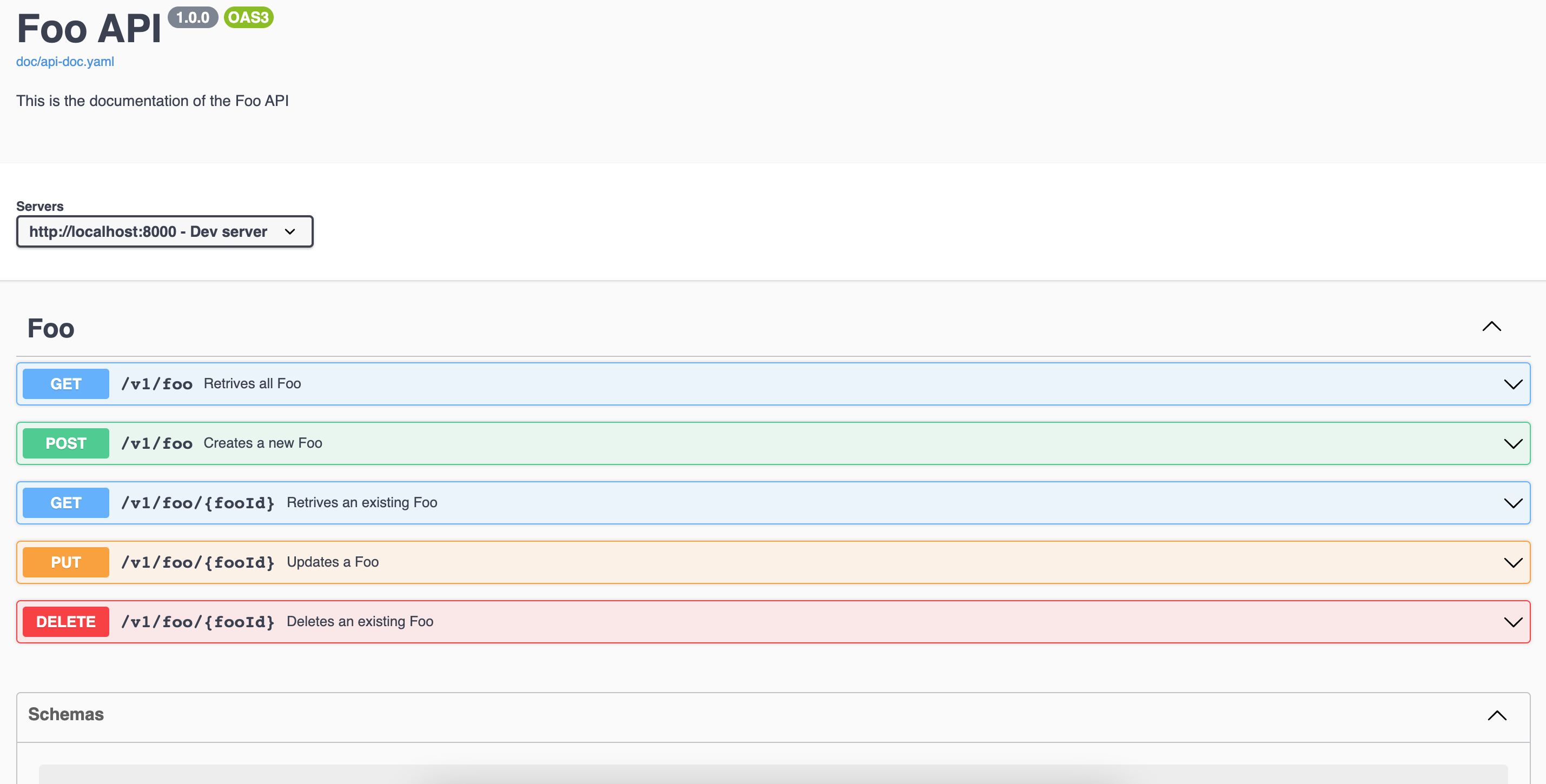

Api Documentation:

Domain events log

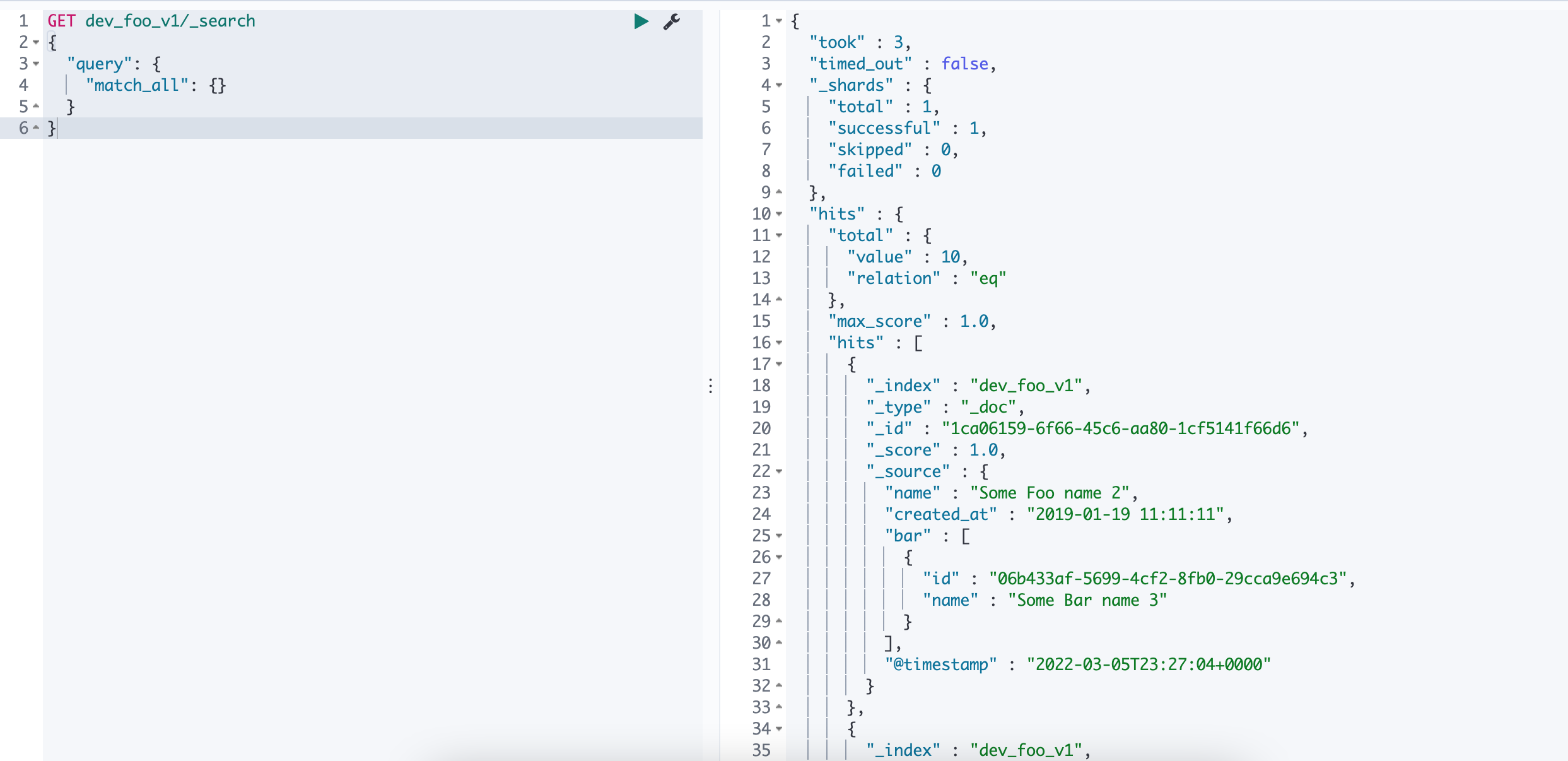

ElasticSearch

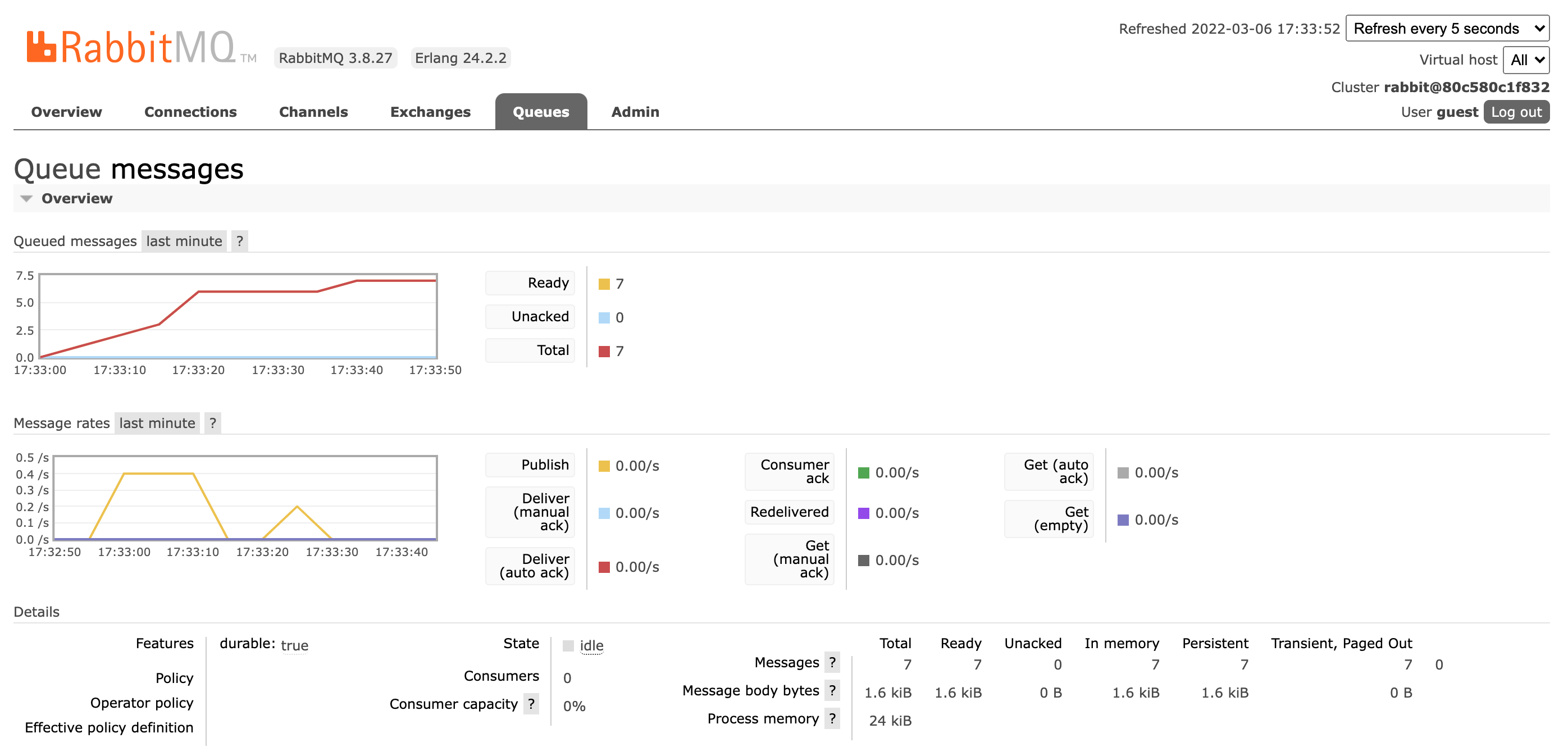

RabbitdMQ
