Structure Discovery through Image-to-Graph Machine Learning Model

Motivation

Atomic Force Microscopy (AFM) with a CO functionalized tip plays a crucial role in characterizing atomic-scale nanostructures. However, identifying structures from AFM images is a challenging task that relies heavily on human expertise. Simulations, particularly with Particle Probe AFM (PPAFM) [1], offer a cost-effective solution for generating large volumes of AFM images. By training state-of-the-art machine learning models with extensive PPAFM-generated datasets, the underlying molecular geometry can be predicted accurately.

In our previous works [2,3,4], we developed machine learning workflows based on a two-stage process. To enhance this workflow, we aim to use an end-to-end model, which simplifies the training process and improves overall efficiency. Such a model has great potential for application to experimental AFM images, enabling faster and more reliable structure discovery.

What we've done

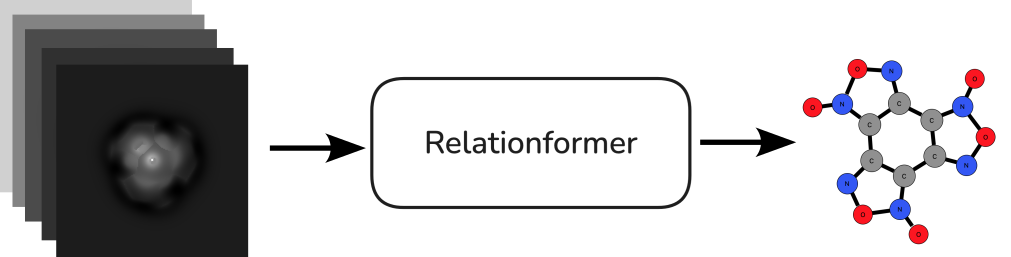

During the hackathon, we successfully started training an image-to-graph translation tool, Relationformer [5], with non-contact AFM (nc-AFM) images to predict sample structures. Specifically, we used a transformer-based model capable of simultaneously predicting objects (atoms) and their relationships (bonds), ensuring accurate geometric characterization. To train this model, we utilized a high-throughput nc-AFM simulator, PPAFM, which provides high-resolution AFM images alongside molecular graph labels.

Methods

• Simulation data: We have use PPM model to get the simulated images.
• Image-to-Graph model: We have use the Relationformer as our end-to-end model.

Expected results

• Accurate prediction of molecular graphs, including atom types and bond information, from AFM images.
• Enhanced workflow efficiency by transitioning to an end-to-end machine learning model.

References

1. N. Oinonen, A. V. Yakutovich, A. Gallardo, M. Ondracek, P. Hapala, O. Krejci, Advancing Scanning Probe Microscopy Simulations: A Decade of Development in Probe-Particle Models, Comput. Phys. Commun. 305, 109341 (2024).

2. F. Priante, N. Oinonen, Y. Tian, D. Guan, C. Xu, S. Cai, P. Liljeroth, Y. Jiang, A. S. Foster, ACS Nano 18(7), 5546-5555 (2024).

3. L. Kurki, N. Oinonen, A. S. Foster, ACS Nano 18(17), 11130-11138 (2024).

4. N. Oinonen, L. Kurki, A. Ilin et al., Molecule Graph Reconstruction from Atomic Force Microscope Images with Machine Learning, MRS Bull. 47, 895–905 (2022).

5. S. Shit, R. Koner, B. Wittmann et al., Relationformer: A Unified Framework for Image-to-Graph Generation, arXiv:2203.10202 (2022).

Aknowlegements

We thank the authors of the project of Relationformer.
