ArsTraverse

Visualizing Conceptual Relationships from Documents

ArsTraverse is a knowledge graph visualization tool designed for art and cultural researchers, curators, and scholars. It automatically extracts conceptual relationships from PDF documents and other text sources using Large Language Models (LLMs), then visualizes these connections as interactive knowledge graphs.

The platform enables users to discover hidden connections between artists, artworks, movements, concepts, and cultural phenomena, making complex contextual information accessible and editable for collaborative research and exhibition planning.

Vision and Purpose

The Problem

Art and cultural research involves navigating complex webs of relationships between artists, artworks, movements, and concepts. Traditional research methods require extensive manual effort to:

• Extract and organize relationships from vast literature
• Visualize complex contextual information effectively
• Collaborate on knowledge construction and archival work
• Structure and preserve cultural knowledge for future generations

Our Vision

ArsTraverse aims to create a "GitHub-like bidirectional archive" for art and culture. We envision a platform where:

• Cultural context is actively edited, shared, and preserved
• Researchers can collaboratively build and refine knowledge graphs
• Complex relationships are made accessible through intuitive visualization
• Knowledge construction becomes a community-driven process

The ultimate goal is to democratize cultural knowledge creation and make the rich contextual information that surrounds art and culture more accessible to researchers, curators, and the broader public.

Tech Stack

Core Framework

• Next.js 14 - React framework with App Router
• TypeScript - Type-safe development
• Tailwind CSS - Utility-first styling

Backend & Database

• PostgreSQL - Primary database
• Prisma - Type-safe ORM and database toolkit
• Supabase - Vector storage and embeddings (pgvector extension)

Authentication & API

• NextAuth.js - Authentication with Google OAuth provider
• tRPC - End-to-end type-safe APIs

AI & Knowledge Graph

• OpenAI GPT-4 - Large Language Model for text processing
• LangChain - LLM application framework
• D3.js - Interactive graph visualization

Additional Tools

• Tiptap - Rich text editor for annotations
• React Hook Form - Form handling
• TanStack Query - Data fetching and caching
• Zod - Schema validation

Architecture Overview

ArsTraverse follows a monolithic Next.js architecture with clear separation of concerns:

Frontend (React/Next.js)

• Pages & Components (/src/app) - User interface and routing
• Visualization Engine - D3.js-based graph rendering and interaction
• Rich Text Editor - Tiptap-powered annotation system

Backend (tRPC API)

• API Routers (/src/server/api) - Business logic and data processing
• LLM Integration - Document processing and knowledge graph extraction
• Authentication - NextAuth.js session management

Database Layer

• Prisma Schema - Type-safe database models
• Vector Storage - Supabase pgvector for embeddings
• Migration System - Version-controlled schema changes

Knowledge Graph Processing Flow

1. Document Upload - PDF/text processing and storage
2. LLM Extraction - Automated relationship extraction using GPT-4
3. Graph Construction - Node and edge creation with embeddings
4. Visualization - Interactive D3.js graph rendering
5. Collaboration - Annotation and editing capabilities

Setup Instructions

Prerequisites

• Node.js 18+
• Docker (for local database)
• PostgreSQL 15+ (if not using Docker)

Installation

1. Clone the repository

   git clone <repository-url>
   cd graph-viz-with-llm

2. Install dependencies

   npm install

3. Environment Variables Create a .env file with the following variables:

   # Database
   DATABASE_URL="postgresql://postgres:password@localhost:5432/arstraverse"
   DIRECT_URL="postgresql://postgres:password@localhost:5432/arstraverse"

   # OpenAI
   OPENAI_API_KEY="your-openai-api-key"

   # NextAuth
   NEXTAUTH_SECRET="your-nextauth-secret"
   NEXTAUTH_URL="http://localhost:3000"
   GOOGLE_CLIENT_ID="your-google-client-id"
   GOOGLE_CLIENT_SECRET="your-google-client-secret"

   # Supabase
   NEXT_PUBLIC_SUPABASE_URL="your-supabase-url"
   NEXT_PUBLIC_SUPABASE_ANON_KEY="your-supabase-anon-key"
   NEXT_PUBLIC_BASE_URL="http://localhost:3000"

   # File Storage
   TMP_DIRECTORY="./public/tmp"
   DELETE_KEY="your-delete-key"

4. Database Setup

   Using Supabase (Recommended)

   • Install Supabase CLI: npm install -g supabase
   • Start local Supabase: supabase start
   • Update environment variables with your local Supabase credentials:

     DATABASE_URL="postgresql://postgres:postgres@localhost:54322/postgres"
     DIRECT_URL="postgresql://postgres:postgres@localhost:54322/postgres"
     NEXT_PUBLIC_SUPABASE_URL="http://localhost:54321"
     NEXT_PUBLIC_SUPABASE_ANON_KEY="your-local-anon-key"

5. Run Database Migrations

   npm run db:generate

6. Start Development Server

   npm run dev

7. Access the Application Open http://localhost:3000 in your browser.

Project Structure

src/
├── app/                    # Next.js App Router
│   ├── _components/        # Reusable UI components
│   ├── _hooks/            # Custom React hooks
│   ├── _utils/            # Utility functions
│   ├── api/               # API routes
│   └── [pages]/           # Application pages
├── server/                # Backend logic
│   ├── api/               # tRPC routers
│   ├── lib/               # Server utilities
│   └── auth.ts            # Authentication configuration
├── trpc/                  # tRPC client setup
└── styles/                # Global styles

prisma/
├── schema.prisma          # Database schema
└── migrations/           # Database migrations

supabase/
├── functions/            # Edge functions for embeddings
└── config.toml          # Supabase configuration

Key Features

Document Processing

• PDF Upload - Automatic text extraction and processing
• Manual Input - Direct text input for knowledge graph creation
• Batch Processing - Multiple document handling

Knowledge Graph Generation

• LLM-Powered Extraction - Automated relationship detection using GPT-4
• Schema-Based Processing - Configurable node and relationship types
• Vector Embeddings - Semantic search and similarity matching

Interactive Visualization

• D3.js Graphs - Dynamic, interactive knowledge graph visualization

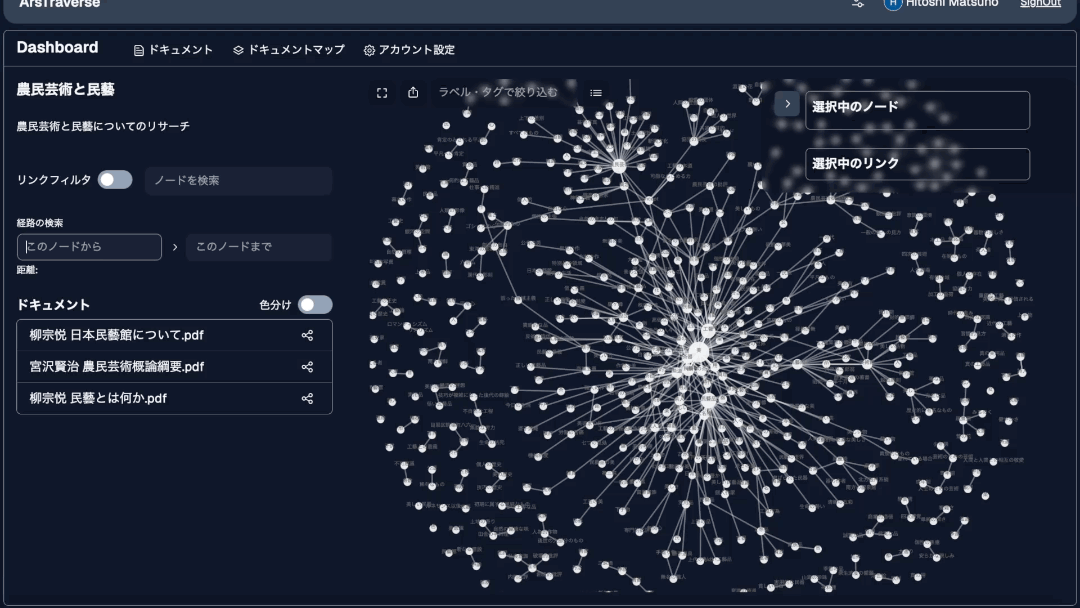

• Filtering & Search - Advanced filtering and semantic search
• Zoom & Pan - Intuitive navigation of large graphs

Collaboration Features

• Annotation System - Rich text annotations with history tracking
• Workspace Management - Collaborative writing and research spaces
• Edit Proposals - GitHub-like pull request system for graph changes
• Discussion Threads - Commenting and discussion on graph elements

Data Management

• Version Control - Complete history tracking for all changes
• Export/Import - Graph data export and sharing capabilities
• User Management - Role-based access control

Available Scripts

# Development
npm run dev              # Start development server
npm run build            # Build for production
npm run start            # Start production server
npm run lint             # Run ESLint

# Database
npm run db:generate      # Generate Prisma client and run migrations
npm run db:migrate       # Deploy migrations to production
npm run db:push          # Push schema changes to database
npm run db:studio        # Open Prisma Studio

# Utilities
npm run mcp:i           # Model Context Protocol inspector

Contributing

We welcome contributions to ArsTraverse! Please feel free to:

• Report bugs and suggest features
• Submit pull requests for improvements
• Contribute to documentation
• Share use cases and feedback

License

This project is licensed under the MIT License - see the LICENSE file for details.

---

ArsTraverse - Navigating the universe of relationships through visualization and collaborative knowledge construction.
