Performance Testing for Topcoder Connect App

Description

Topcoder Connect is a web application that makes it easy to tap into the power of crowdsourcing to get more work done faster. Connect is ideal for projects that include application design and/or development work. You can crowdsource the entire application development lifecycle or just the specific stages where you need help. Common deliverables include application wireframes, UI/UX designs, prototypes, MVPs, and production-ready apps for any kind of device—mobile, wearables, or the web.

Dependencies

  • Jmeter maven plugin 2.9.0
  • Maven 3.5.2
  • JDK between 8 and 11

Prerequisite

  • We have already included the workflow into the circleci conf file with the usual dev builds.

Directory Structure

  • .circleci (Circleci configuration file)
  • \src\test\jmeter - Includes the JMX file(s) and CSV data files
  • pom file

Setup and Runtime

Add the plugin to your project: Add the plugin to the build section of your pom's project

<plugin>
    <groupId>com.lazerycode.jmeter</groupId>
    <artifactId>jmeter-maven-plugin</artifactId>
    <version>3.2.0</version>
    <executions>
        <!-- Generate JMeter configuration -->
        <execution>
            <id>configuration</id>
            <goals>
                <goal>configure</goal>
            </goals>
        </execution>
        <!-- Run JMeter tests -->
        <execution>
            <id>jmeter-tests</id>
            <goals>
                <goal>jmeter</goal>
            </goals>
        </execution>
        <!-- Fail build on errors in test -->
        <execution>
            <id>jmeter-check-results</id>
            <goals>
                <goal>results</goal>
            </goals>
        </execution>
    </executions>
</plugin>

This simple load test is already integrated with the current build process

workflows:
  version: 2
  Connect Project Services:
    jobs:
      - build:
          context : org-global
      - deployDev:
          context : org-global
          requires:
            - build
          filters:
            branches:
              only: ['develop']
      - deployProd:
          context : org-global
          requires:
            - build
          filters:
            branches:
              only: ['master']
      - Hold [Performance-Testing]:
          type: approval
          requires:
            - build
            - deployDev
            - deployProd
      - Connect-Performance-Testing:
          requires:
            - Hold [Performance-Testing]
  • Hold [Performance-Testing] - This is the approval job we needs manual interaction.
  • It requires build, deployDev and deployProd jobs to run first.
  • Actual performance testing job is Connect-Performance-Testing and it requires Hold [Performance-Testing] job to finish.

Configuration

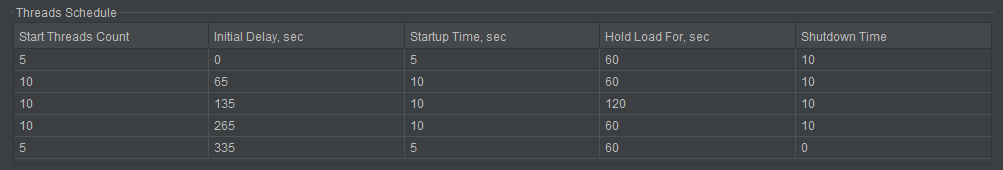

This performance test is for 15 virtual users. The parameters for this test plan is as below;

  • Start Thread Count
  • Initial Deplay, sec (Startup Time + Hold Load For)
  • Startup Time, sec (Start Thread Count = Startup Time)
  • Hold Load For, sec
  • Shutdown Time (Next row Initial Deplay)

Formulas:

Initial time of a record = initialtime + start up time/ramp-up time + holdtime of the previous record

start up time/ramp-up time = Shutdown time/ramp-down time of the previous record

This setup is configured to run 6min with 15 UVs.

Token Details

  • audience - https://m2m.topcoder-dev.com/
  • grant_type - client_credentials
  • content-type - application/json
  • client_id - jGIf2pd3f44B1jqvOai30BIKTZanYBfU
  • client_secret - ldzqVaVEbqhwjM5KtZ79sG8djZpAVK8Z7qieVcC3vRjI4NirgcinKSBpPwk6mYYP

To extract the token we are using the variable access_token

TO pass the access_token varaible globally we are using the beanshell Assertion

${__setProperty(access_token, ${access_token})};

Random Controller

We are using Random Controller to randomize the requests sent to the server to simulate the different request.

Think Time

We are using this parameter to implement a random wait time in betweent the request to simulate the real user experience.

HTTP Requets

  • Access Tabs - Simulate user accessing different tabs
  • Access Projects - Simulate user accessing different projetcs
  • Assets Library (Link Insert) - Add Links to the projects

Check the reports and data

After running the job using the circleci user can view the report by clicking on the Job: Connect-Performance-Testing > Artifacts > target/jmeter/reports/15UV Ultimate Thread-Group/index.html

eg: https://2728-60865675-gh.circle-artifacts.com/0/target/jmeter/reports/15UV%20Ultimate%20Thread-Group/index.html
