fix(desktop): prevent Agent Graph Selected results label from shrinking to min-content

[me2seeks]

What happened

The Selected results / 已选择结果 row at the bottom of the Desktop Agent Graph panel wraps instead of staying on one line.

• At the panel's full measure min(680px, calc(100% - 32px)) with no narrowing at all, Selected results already wraps to two lines when the code sibling holds two graph_record_* ids. The span label has no flex-shrink: 0 / white-space: nowrap, so it shrinks to min-content as soon as the code is long enough. zh is the louder symptom（one character per line）, en wraps to two lines — same shrink, not a separate zh-only case. Captured at both 430px and 980px in fix(desktop): keep Agent Graph results label from shrinking #3970.

Root cause in apps/desktop/src/renderer/agent-graph-panel.tsx:484:

<div className="maka-agent-graph-results">
  <span>{copy.selectedResults}</span>
  <code>{snapshot.finish.resultIds.join(', ')}</code>
</div>

paired with apps/desktop/src/renderer/styles/agent-graph.css:40:

.maka-agent-graph-heading,
.maka-agent-graph-heading > div,
.maka-agent-graph-results { display:flex; align-items:center; gap:var(--space-2); }
.maka-agent-graph-results code { min-width:0; white-space:nowrap; overflow:hidden; text-overflow:ellipsis; }

code is a single-line graph_record_xxx, graph_record_yyy with white-space: nowrap. The span defaults to min-width: auto; flex: 0 1 auto without white-space: nowrap. Under flex shrink the label collapses to min-content (one character for scripts without break opportunities), producing the vertical layout.

This affects all locales. The current shipped locales in packages/core/src/ui-locale.ts are ['zh', 'en'] (UI_LOCALES), and the panel only branches on locale === 'zh'. The mechanism holds for any script without break opportunities, but the observed cases are zh and en only.

How to reproduce

1. Start Desktop and trigger a task that produces an Agent Graph finish (--graph or TUI /graph <task>) so snapshot.finish.resultIds contains two or more long graph_record_* ids.
2. Open the session and look at the Selected results row at the bottom of the panel.
3. At the default width min(680px, calc(100% - 32px)) with no resize, the label already wraps. Narrowing is not required for en; two ids are sufficient at 680px. zh shows the vertical per-character wrapping, en shows a two-line wrap.

Stable reproduction, no specific model required. Reproducible at both 430px and 980px (see #3970).

Environment

• Maka version or commit: c66846ddb (fix/shell-run-legacy-visibility-tolerance branch, 2026-08-27)
• OS and version: Linux
• Surface: Desktop
• Node.js version: >=22.19.0 (when running from source)

Logs, screenshots, or additional context

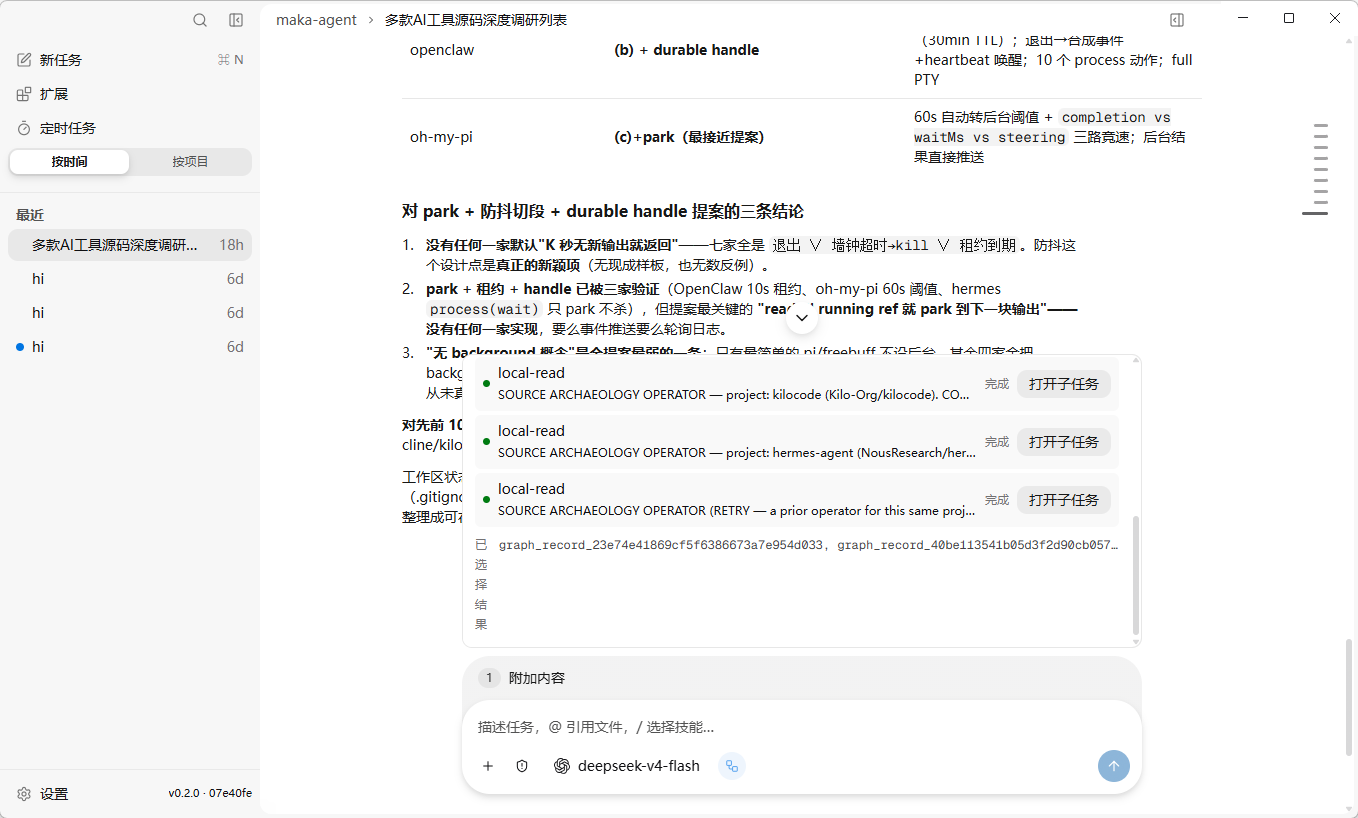

• Screenshot:

• Expected: span stays on one line, code takes the remaining space with ellipsis. Suggested fix:

.maka-agent-graph-results > span { flex: 0 0 auto; white-space: nowrap; }
.maka-agent-graph-results code { flex: 1 1 0; min-width: 0; }

• Related files: apps/desktop/src/renderer/agent-graph-panel.tsx:94,484, apps/desktop/src/renderer/styles/agent-graph.css:40,174
• Label suggestion: bug

[heeoneie]

I'd like to take this one.

Reproduced the shrink behaviour in isolation from the rules at agent-graph.css 40 and 174-186. One thing worth adding to the report: this is not zh-only. The label <span> has neither flex-shrink: 0 nor white-space: nowrap, so it shrinks to min-content in every locale — CJK just has no break opportunities, which is why it degrades to one character per line:

zh   已选 / 择结 / 果        one char per line, as reported
ko   선택된 / 결과            same cause, same shape
en   Selected / results     two lines - milder, still wrong

So the fix reads better as "the label never shrinks" than as "add nowrap for Chinese".

Planning exactly what you proposed:

.maka-agent-graph-results > span { flex: 0 0 auto; white-space: nowrap; }
.maka-agent-graph-results code   { flex: 1 1 0; min-width: 0; }

Will attach before/after covering zh, en and ko.

[me2seeks]

@heeoneie Thx for grabbing this! Since you're testing multiple languages, any chance you'd be interested in helping with our i18n? AI translations can be a bit weird sometimes, so a native speaker's touch would be amazing.

[heeoneie]

One more thing from building the fix, since it widens what this issue reports: en breaks without any narrowing.

At the panel's full measure — min(680px, 100% - 32px), no resize at all — Selected results already wraps to two lines. The label has no flex-shrink: 0, so it shrinks to min-content as soon as the code sibling is long enough, and two graph_record_* ids already are at 680px.

So this reproduce step:

当面板宽度为 min(var(--maka-chat-measure), calc(100% - var(--space-8))) 且 code 内容超过剩余宽度时

is not a narrowing precondition for en — it is already true at the default width. zh is the louder symptom (one character per line), but it is the same shrink, not a separate zh-only case.

Captured at both 430px and 980px in #3970.

[heeoneie]

Correction to my first comment: I listed a ko row as if Korean were a shipped locale. It isn't — UI_LOCALES in packages/core/src/ui-locale.ts is ['zh', 'en'], and this panel only branches on locale === 'zh'. The mechanism holds for any script without break opportunities, but I shouldn't have presented ko as an observed case. #3970 covers zh and en only.

@me2seeks On i18n — yes, I'd be glad to help. Korean is my native language, so if ko is something the project wants to add I can carry the copy. For the existing zh/en surfaces I can review wording rather than translate.

Where would you like me to start — is there an issue tracking the locale catalogs, or should I open one? I noticed #3962 is already working the presentation boundary for built-in tool names, so I'd want to avoid cutting across that.

And thanks for the screenshot on a fork branch — that made the zh case reproducible without your local file.

[me2seeks]

Hi @heeoneie — thanks so much for picking up #3966, and for the really thorough digging you did!

Really appreciate how you caught the en case at full width and how you corrected the ko note — that kind of care with UI_LOCALES being ['zh','en'] is exactly the standard we try to keep here. Your proposed fix

.maka-agent-graph-results > span { flex: 0 0 auto; white-space: nowrap; }
.maka-agent-graph-results code   { flex: 1 1 0; min-width: 0; }

looks spot-on, and the before/after you put in #3970 (430 + 980 × zh/en) makes it super easy to review.

You kindly asked about i18n — yes, we'd love your help! Korean is a native perspective we don't have on the team, and even a wording review for the existing zh/en surfaces would be wonderful.

To make it easy to get started without bumping into other work, I've opened a tracking issue for the new locale:

#3974 feat(i18n): add Korean (ko) locale — it reuses the typed UiCatalog<T> contract from #2672 and the zh-TW pattern from #3853, so no new framework or global file.

It's split into six small slices so you can claim just one at a time:

• feat(i18n-ko): core — add ko to UiLocale model #3975 — core model (UiLocale)
• feat(i18n-ko): desktop slice 1 — settings-preferences/onboarding/shell/permissions #3977 — desktop slice 1 (settings-preferences / onboarding / shell / permissions) — probably the friendliest first slice
• feat(i18n-ko): desktop slice 2 — remaining settings/conversation/artifact/browser/mcp/plan-mode #3976 — desktop slice 2 (remaining settings / conversation / artifact / browser / mcp / plan-mode)
• feat(i18n-ko): shared UI — packages/ui and core error copy #3978 — shared UI + core error copy
• feat(i18n-ko): CLI — human help and TUI chrome #3979 — CLI human help / TUI chrome
• feat(i18n-ko): native surfaces and E2E fixtures #3980 — native surfaces + E2E fixtures

Totally up to you where you'd like to begin — even starting with a review on slice 1 would be a huge help, and you can just comment I'd like to take #3975 (or whichever slice you prefer) on the relevant issue and I'll assign it right away. No rush at all.

Thanks again for the great work on #3966 and for offering to help with Korean — it really means a lot to the project!
