Application Caching

Application Caching Presentation Using Markdown

<style scoped>a { color: #eee; }</style>

---

Agenda

• Introduction
• Summary - The What
• Features - What All
• The How
• The Why -> Pros and Cons
• The When and where
• Another How (to Get Started)
• References (From Where)

---

Intro

• Enable app layer in memory caching which can be used by any API / frameworks to cache data, and improve latency and load on DB

• Integrate distributed embedded caching with our existing application with simple annotation in our spring applications

---

Features:

• Easily integrate with JPA/Hibernate
• Support for Relational DB / Joins
• Support for TTL
• Support for Cache - Aside strategy
• Light weight and fits into small - pods
• Minimal setup needed / Easy to use - learn
• Distributed Caching - ideal case without a dedicated server

---

Application Caching:

There are two patterns of caching the data in application caching.

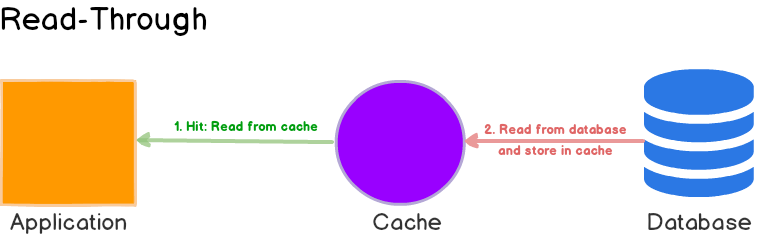

1. Caching Database Queries:

• This is the most commonly used caching pattern. Whenever you query your database, your store the result dataset in the cache. Each result dataset will have a hashed version of the query as the cache key.
• Every time you run the query, you first check if cache-key is already in the cache.
• If it’s in the cache return it from there otherwise fetch the result from the database and store the result dataset in the cache for future queries.
• The main issue with this pattern is the cache invalidation. It is hard to invalidate the cached result when you cache a complex query result. When one piece of data changes (for example, a table row) we need to invalidate all cached queries which include that row.

<style scoped> { font-size:24px;}</style>

---

2. Caching Objects:

• In objects caching pattern, you store the data as an object as you do in your application code (classes, instances, etc.).
• Your class can assemble a dataset from your database and then you can store the instance of the class or the assembled dataset in the cache.
• Some examples of objects that can be cached are User Sessions, Fully Rendered Web pages, Activity Streams, User Graph Data.

---

Caching Update Strategy:

1. Read-Through

• In cache-aside, the application is responsible for fetching data from the data store and populating the cache. In read-through, this logic is usually supported by the library or stand-alone cache provider.
• Unlike cache-aside, the data model in the read-through cache cannot be different than that of the database.
• Read-through cache also works best for read-heavy workloads.
• Read-through cache strategy is quite similar to cache-aside accept instead of managing both data store and the cache, delegates data store synchronization to the cache provider
• Both cache-aside and read-through loads data lazily on the first read.

<style scoped> { font-size:28px;}</style>

---

---

• What do you guys think 👌😊

• Discussion ✋🔓

• Questions ❓💡

---

Created by Dean Jain (@dean.jain)

Powered by PaaC (Presentation as a Code) ❤️💜💚💙
