diff --git a/answers.md b/answers.md index 092b6d280..415751018 100644 --- a/answers.md +++ b/answers.md @@ -1 +1,373 @@ -Your answers to the questions go here. +# Solutions-Engineer exercise - Nahuel Porzio + +0. [Setting up environments](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#0-setting-up-environments) +1. [Adding host tags](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#1-adding-host-tags) +2. [Installing database](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#2-installing-database) +3. [Custom agent check](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#3-custom-agent-check) +4. [Creating Timeboard via API](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#4-creating-timeboard-via-api) +5. [Sharing a graph](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#5-sharing-snapshot) +6. [Creating a monitor](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#6-creating-alert-monitor) +7. [Collecting APM data](https://github.com/nporzio/hiring-engineers/blob/master/answers.md#7-collecting-apm-data) + +

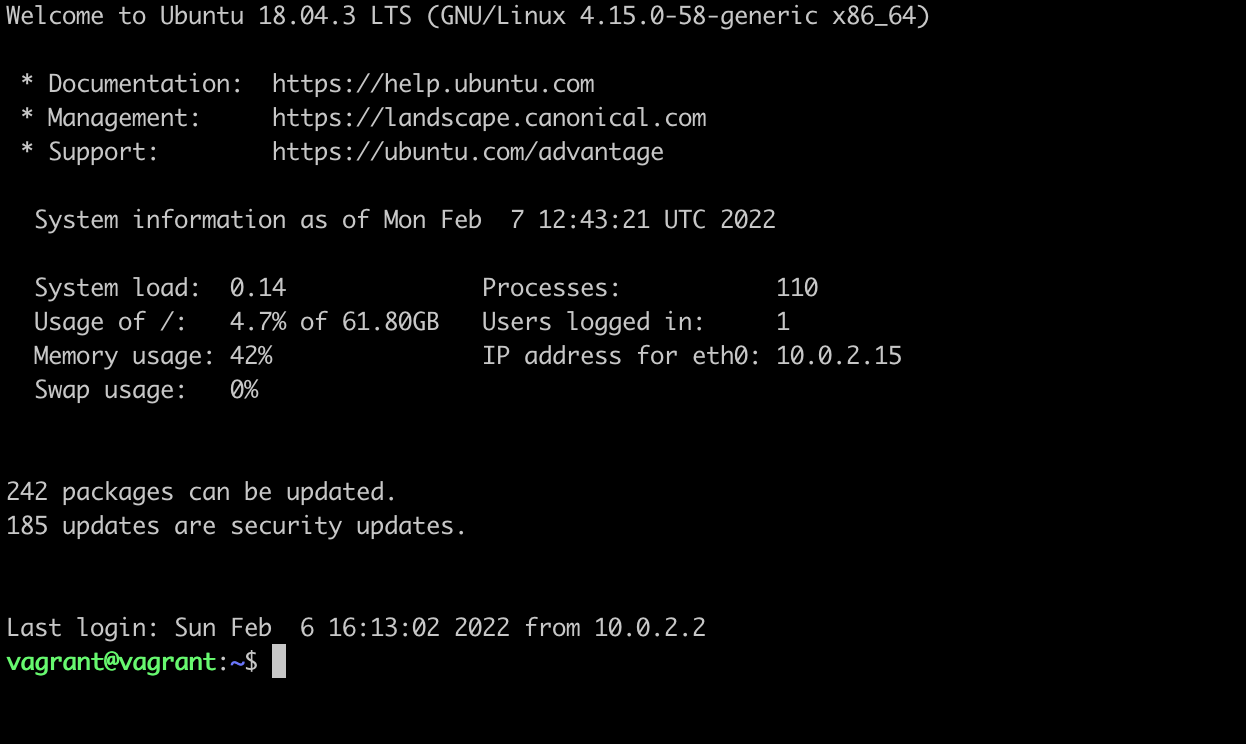

+ +## 0) Setting up environments + + +I've opted for the vagrant-option and initiated a standard Ubuntu 18.04 distribution. In my case I'm using a MacBook Pro, which is easily deployed via Brew: + + +``` +# Install +brew install vagrant + +# Create directory +mkdir ~/vagrant +cd ~/vagrant + +# Build image +vagrant init hashicorp/bionic64 + +# Add project-conf to ~/vagrant/VagrantFile + +Vagrant.configure("2") do |config| + config.vm.box = "hashicorp/bionic64" +end + +# Start vm +vagrant up + +# Connect to box +vagrant ssh +``` + + +Screenshot 2022-02-07 at 13 46 51 + +_____ +

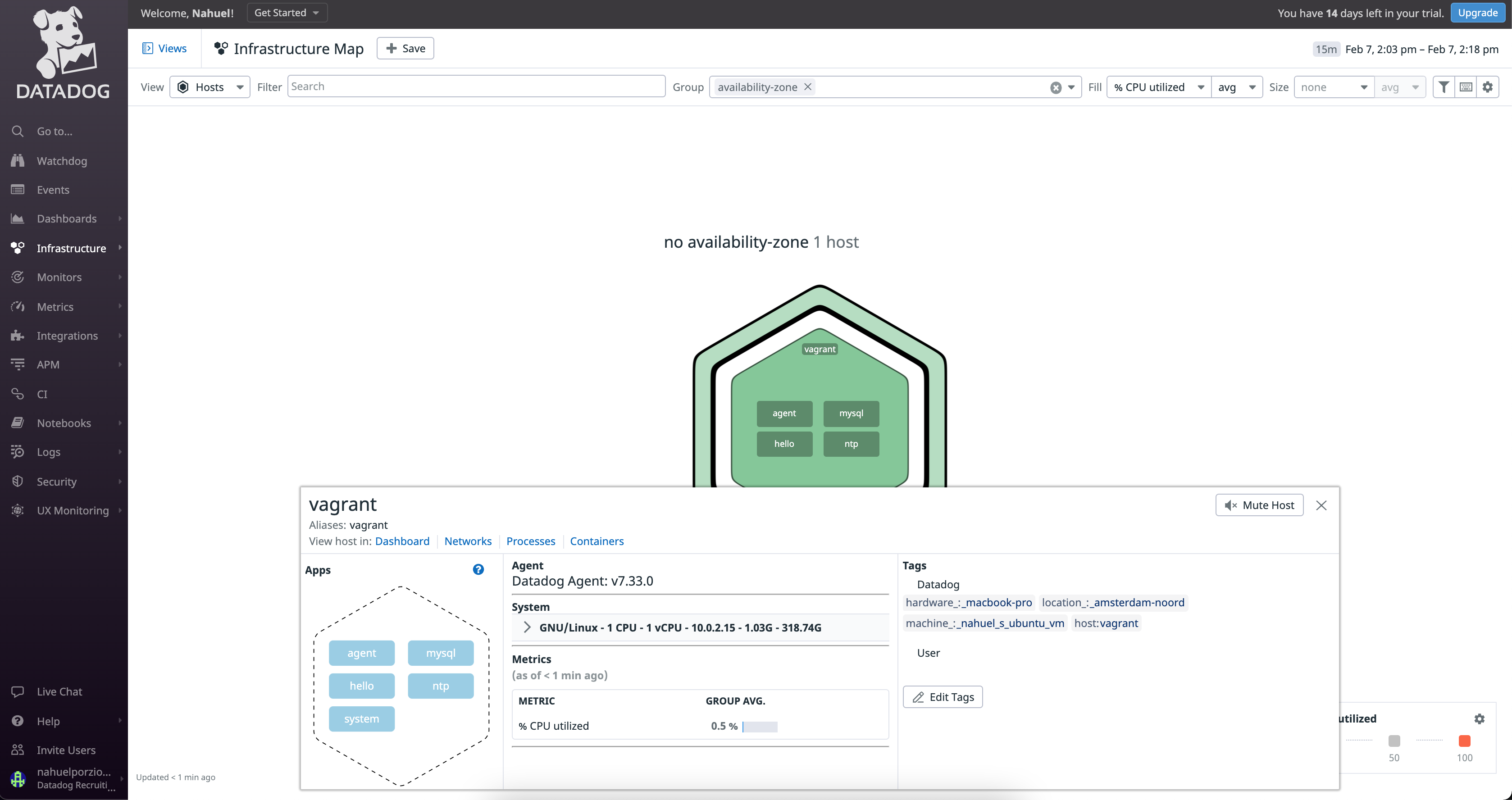

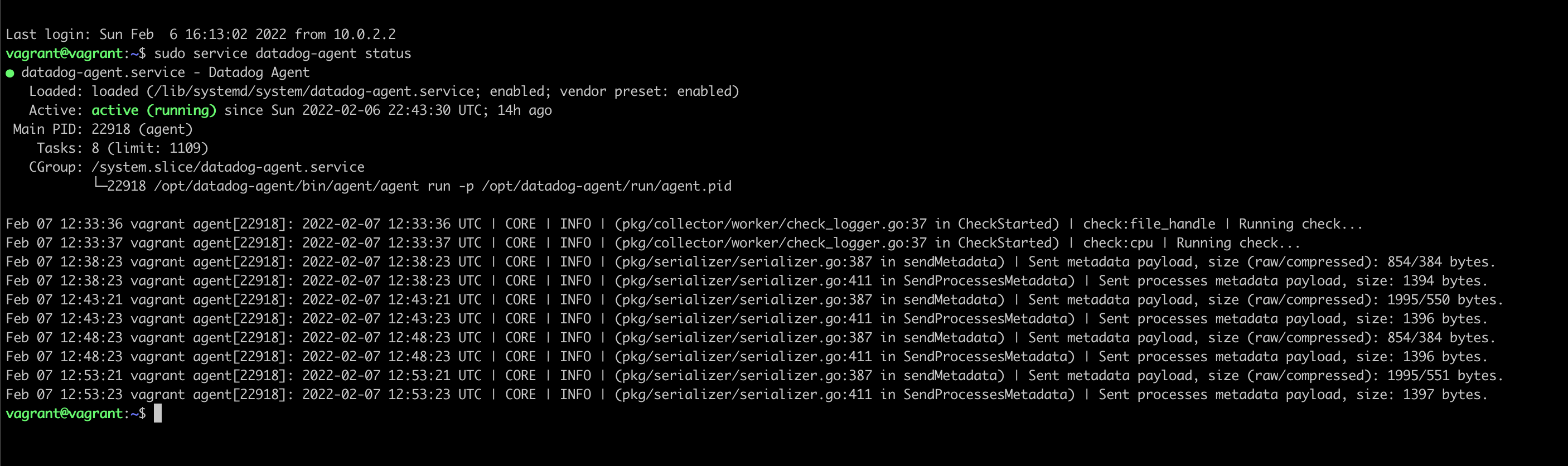

+ + +## 1) Adding host tags + + +After successfully installing and running the datadog-agent as per https://app.datadoghq.eu/account/settings#agent/ubuntu + +![image](https://user-images.githubusercontent.com/30311249/152792775-093a849b-e436-4c23-a873-579805b2fa60.png) + +and making sure that there's activity in the web-dashboard, I proceeded to configure some tags as per https://docs.datadoghq.com/getting_started/tagging. + +``` +# Add tags +sudo nano /etc/datadog-agent/datadog.yaml + +# Content added + +tags: + - ":" + - ":" + - ":" +``` + +which after some propagation-time they showed in the Host Map section for my account: + +![image](https://user-images.githubusercontent.com/30311249/152795464-183223b5-e47f-4b35-9390-cc434f313cff.png) + +____ +

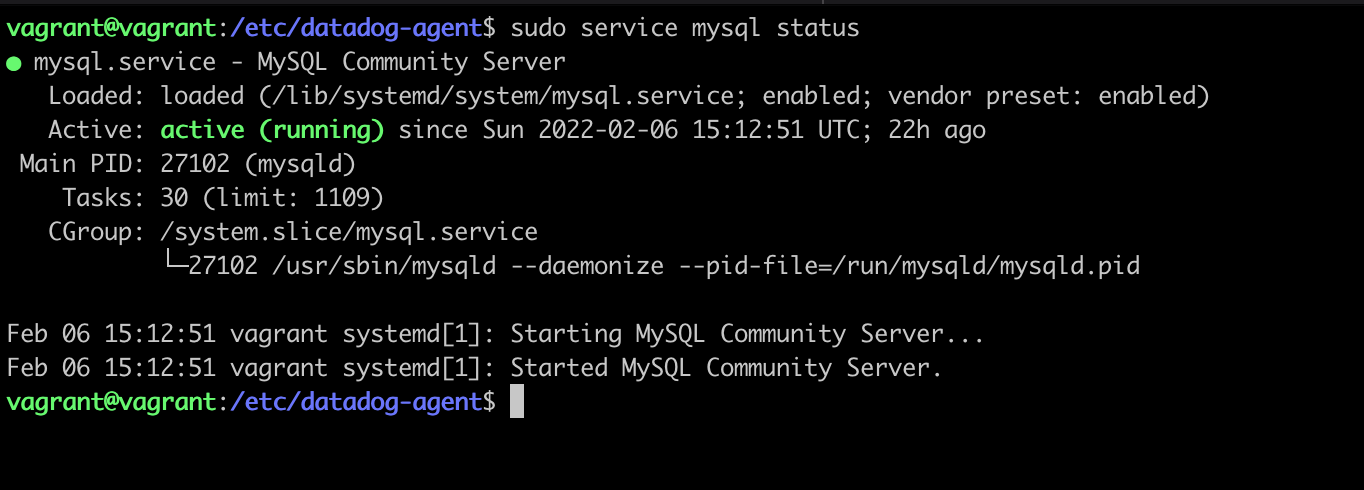

+ +## 2) Installing database + +Here I've installed a standard mysql-service and created a test-database to make sure it works (steps followed very similar to the ones described in this external article https://www.digitalocean.com/community/tutorials/how-to-install-mysql-on-ubuntu-20-04). + +![image](https://user-images.githubusercontent.com/30311249/152797386-c5a177e4-d173-4e89-868d-028bb837041d.png) +

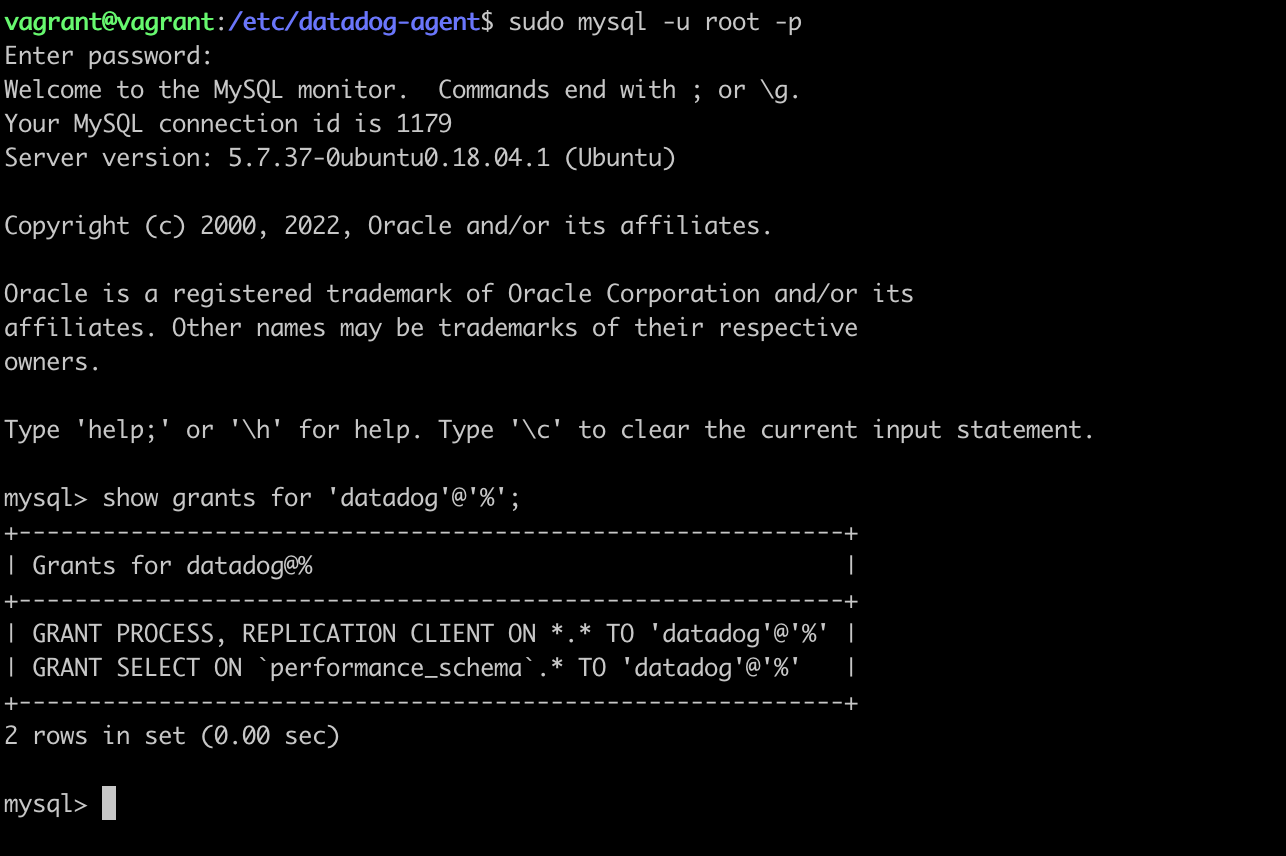

+ +Then I've configured the integration and deployed the datadog mysql-user along its pertinent permissions as per https://docs.datadoghq.com/integrations/mysql. + +![image](https://user-images.githubusercontent.com/30311249/152799363-97ef7092-6399-4196-9e94-02177eb7f33b.png) +

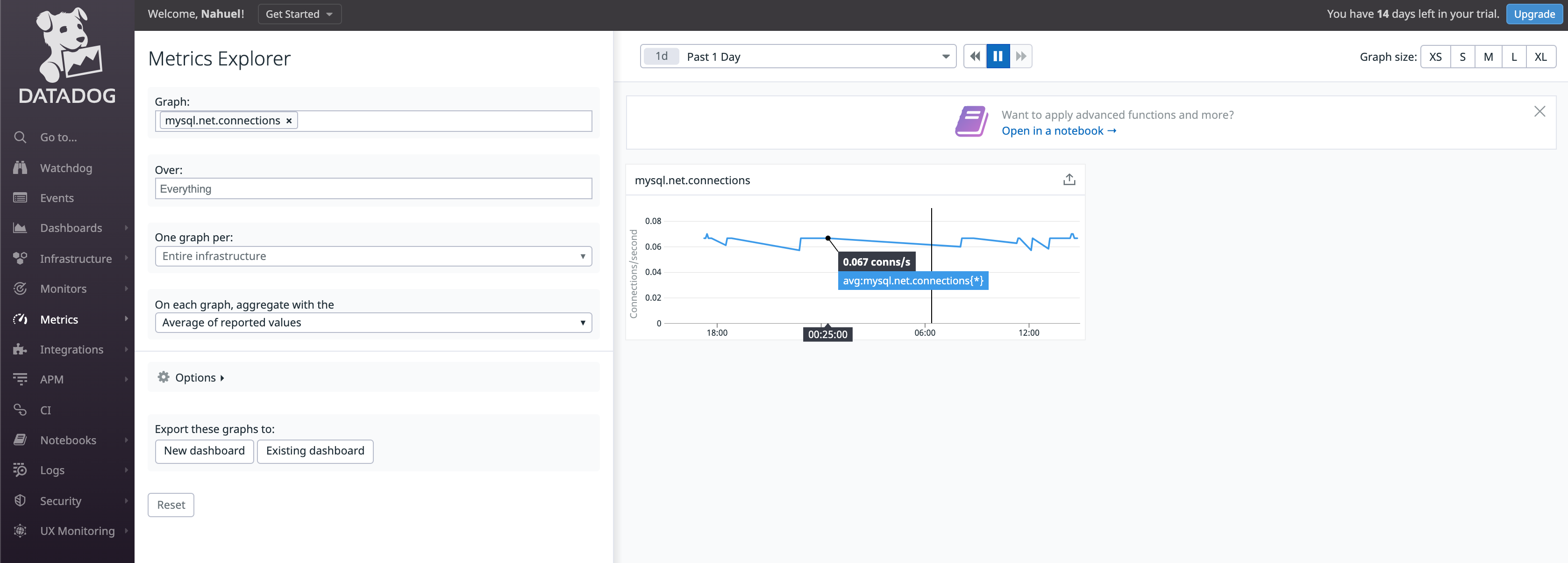

+ +Which enabled the agent to report some metrics visible in the dashboard almost immediately + +![image](https://user-images.githubusercontent.com/30311249/152801703-7d0c2b9a-0482-470a-9d3a-107a0e0ca20c.png) + +____ +

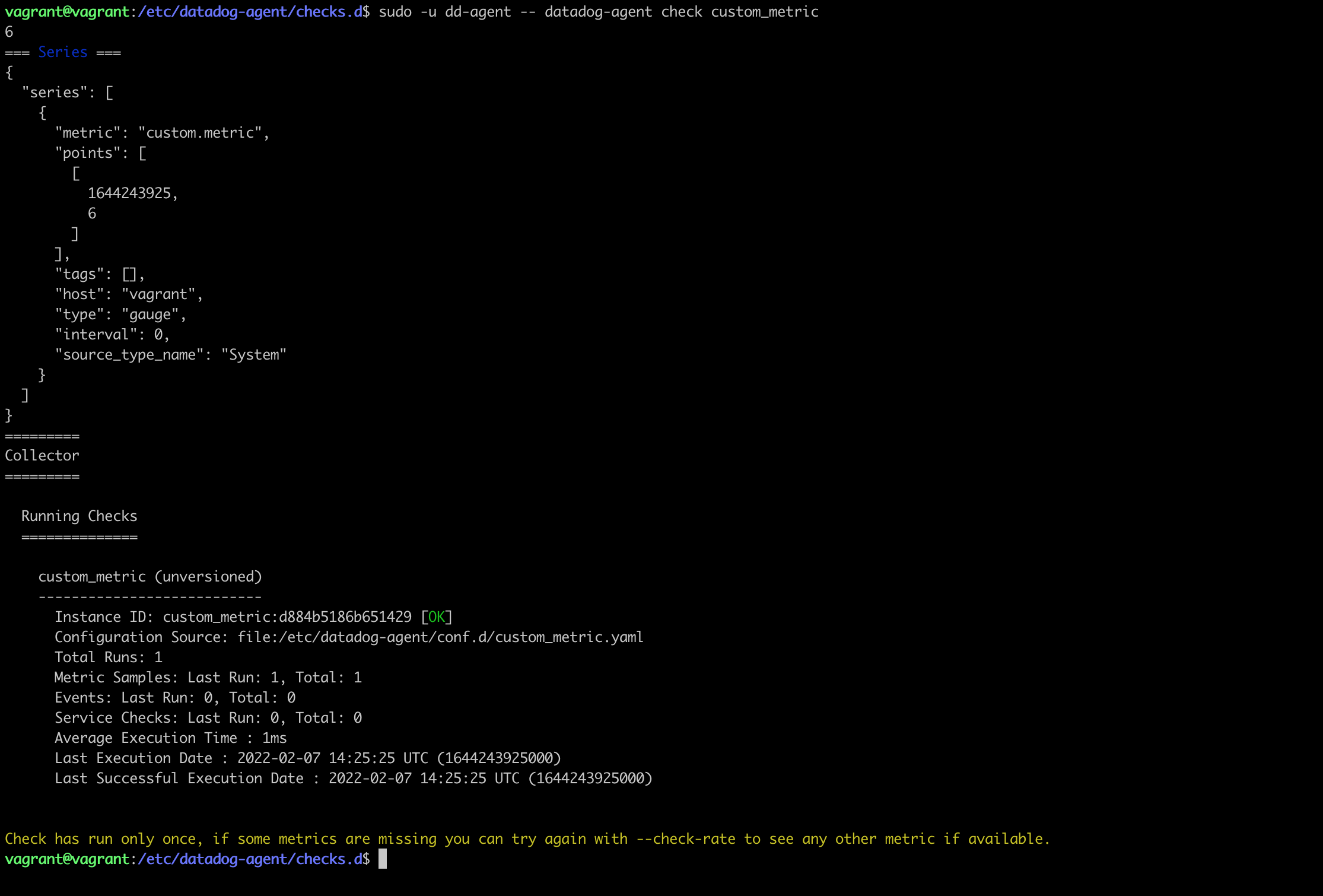

+ +## 3) Custom agent check + +I referred to https://docs.datadoghq.com/developers/custom_checks/write_agent_check/ and configured a custom-check: + +```` +# Add file for the check +sudo nano /etc/datadog-agent/conf.d/custom_metric.yaml + +# Add correspondent script +sudo nano /etc/datadog-agent/checks.d/custom_metric.py + +# Verify that the check works +sudo -u dd-agent -- datadog-agent check custom_metric + +# Restart service +sudo service datadog-agent restart +```` + +![image](https://user-images.githubusercontent.com/30311249/152807152-ce7a4d1d-3fc3-4bad-bf92-dbef12b8cbf9.png) + + +**custom_metric.yaml** +``` +init_config: + +instances: + [{}] + ```` +**custom_metric.py** +```` +from checks import AgentCheck +import random + +class custom_metric(AgentCheck): + + def check(self, instance): + self.gauge('custom.metric', self.generate_random_number()) + + def generate_random_number(self): + random_int = random.randint(1,1000) + return random_int +```` +
+ +**Changing interval for the check** --the answer to the bonus question is yes, (as per https://docs.datadoghq.com/developers/custom_checks/write_agent_check/#updating-the-collection-interval) although it may be possible, there's no need to do do this via the python-script itself, since it can admittedly be modified directly on the .yaml. + +``` +# Update interval +sudo nano /etc/datadog-agent/conf.d/custom_metric.yaml +```` + +**new custom_metric.yaml** +```` +init_config: + +instances: + - min_collection_interval: 45 +```` +

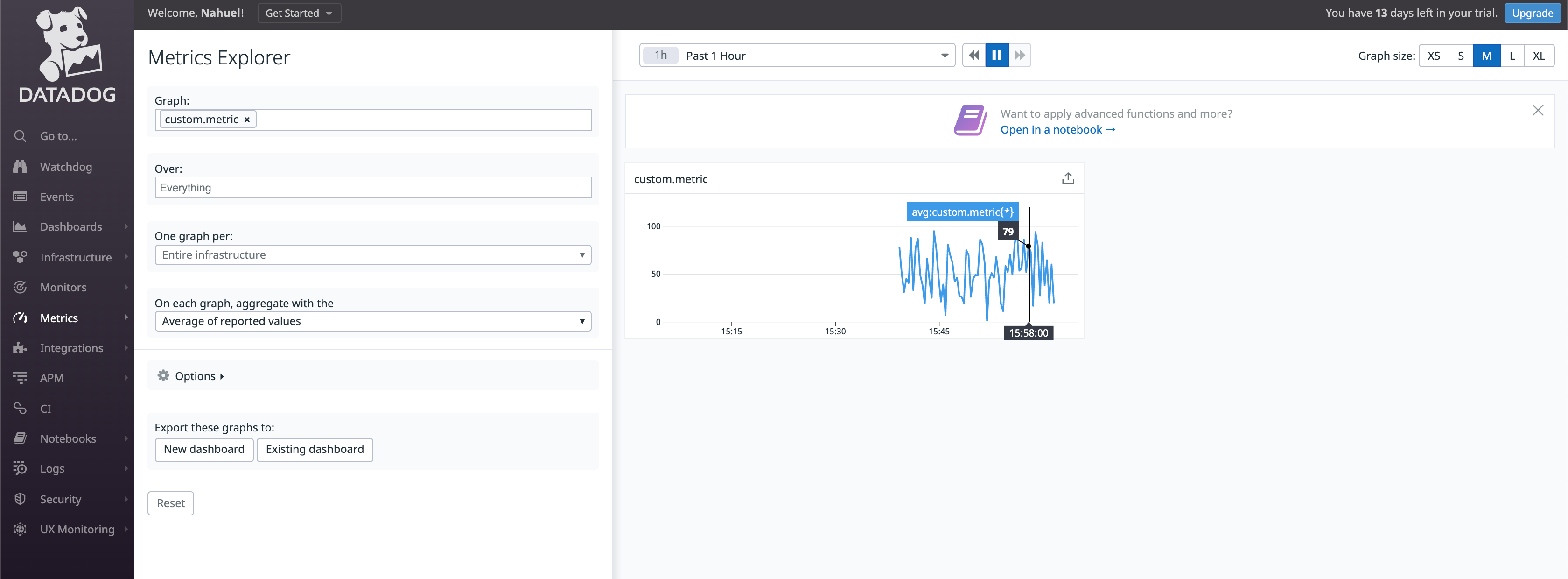

+ +snapshot of the metric itself on the dashboard +![image](https://user-images.githubusercontent.com/30311249/152814061-c83cf508-21cc-4276-a8b5-3808922e4b9b.png) + +___ +
+ +## 4) Creating Timeboard via API + +After reading the pertinent articles
+ https://docs.datadoghq.com/api/latest
+ https://docs.datadoghq.com/api/latest/authentication/
+ https://docs.datadoghq.com/api/latest/dashboards/
+ https://docs.datadoghq.com/dashboards/querying/

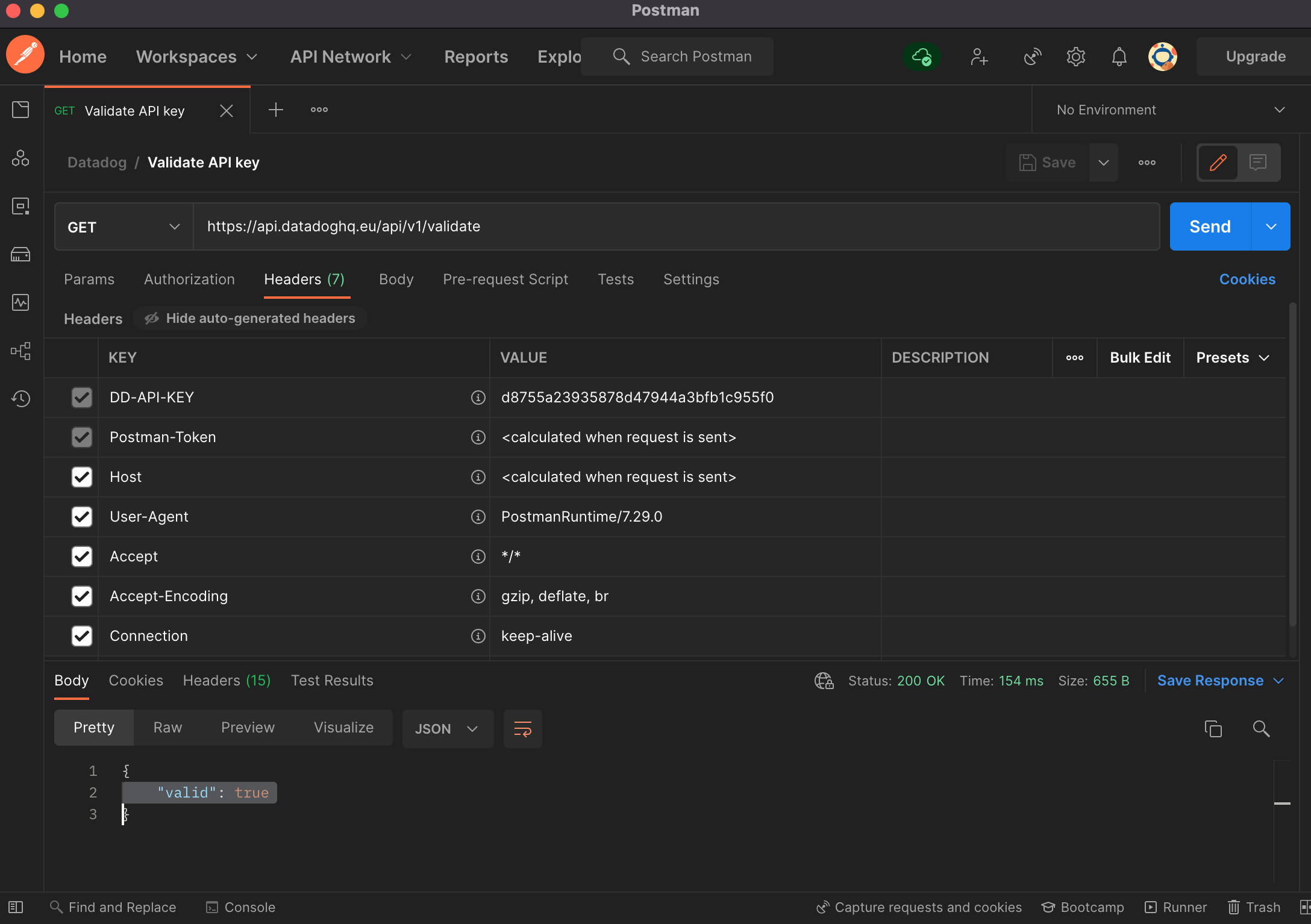

+ +--I've made sure that I'm able to connect to the system by querying ```https://api.datadoghq.eu/api/v1/validate``` (200) via Postman. + +![image](https://user-images.githubusercontent.com/30311249/153011521-4d714489-0465-4b6e-aedf-8b3dbd9d8542.png) + +____ + +
+Then I started testing and interacting with the /dashboards API to get a sense of the mechanics --I must say that since there's many depth levels of information and stated ways of creating dashboards/widgets, I was a little confused over which json-structure is the simplest and ideal model to be used for this instance. For which I went through some trial-and-error cycles with cURL and Postman until figuring out what works for this assignment. +
+
+ +Ultimately what helped me defining the right format for the requests was combining the DD Postman Collection available in the docs (https://docs.datadoghq.com/getting_started/api/#import-the-datadog-collection-into-postman) together with the JSON-definition available in the UX for the widgets that I created manually, and some basic grasp of functions (https://docs.datadoghq.com/dashboards/functions). + +
Once these elements were as clear as possible, I proceeded to write a simple python-script which creates the desired timeboard with the pertinent widgets: + +``` +import os +import json +import requests + +# Auth keys (stored in local variables) +api_key = os.environ['API_KEY'] +app_key = os.environ['APP_KEY'] + +# URL +url = 'https://api.datadoghq.eu/api/v1/dashboard' + +# Headers +headers = { + 'DD-API-KEY': api_key, + 'DD-APPLICATION-KEY': app_key + } + +# JSON body +data = { + "layout_type": "ordered", + "title": "Timeboard created via API", + "widgets": [{ + "definition": { + "type": "timeseries", + "title": "custom_metric_api", + "requests": [{ + "q": "custom.metric{host:vagrant}" + }] + } + }, { + "definition": { + "type": "timeseries", + "title": "mysql_cpu_api", + "requests": [{ + "q": "anomalies(mysql.performance.cpu_time{host:vagrant}, 'basic', 3)" + }] + } + }, + { + "definition": { + "type": "timeseries", + "title": "mysql_cpu_last_hour", + "requests": [{ + "q": "custom.metric{host:vagrant}.rollup(sum,3600)" + }] + } + } + ] +} + +# Execute call +response = requests.post(url, headers=headers, data=json.dumps(data)) + +# Print result +print(response.json()) +``` + +

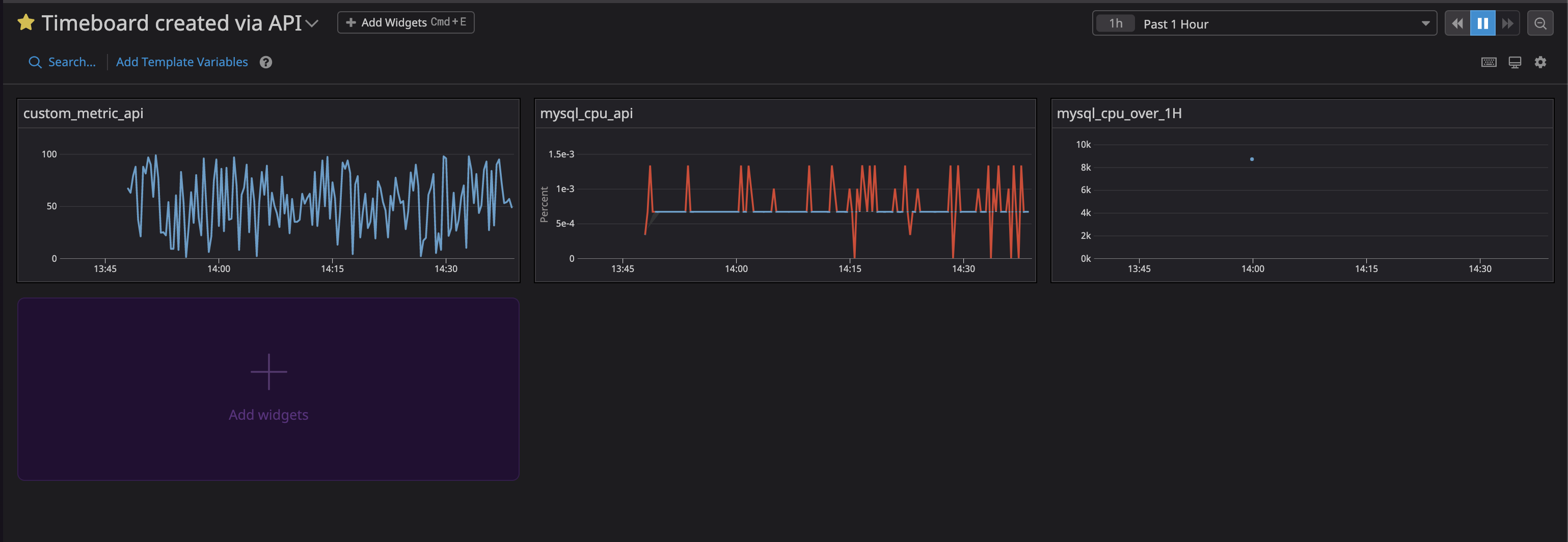

+ +URL to the dashboard - https://app.datadoghq.eu/dashboard/qgd-6r3-seb/timeboard-created-via-api?from_ts=1644583120454&to_ts=1644586720454&live=true + +![image](https://user-images.githubusercontent.com/30311249/153601459-e28658de-0b6e-4eda-9902-f0f14989c791.png) + +

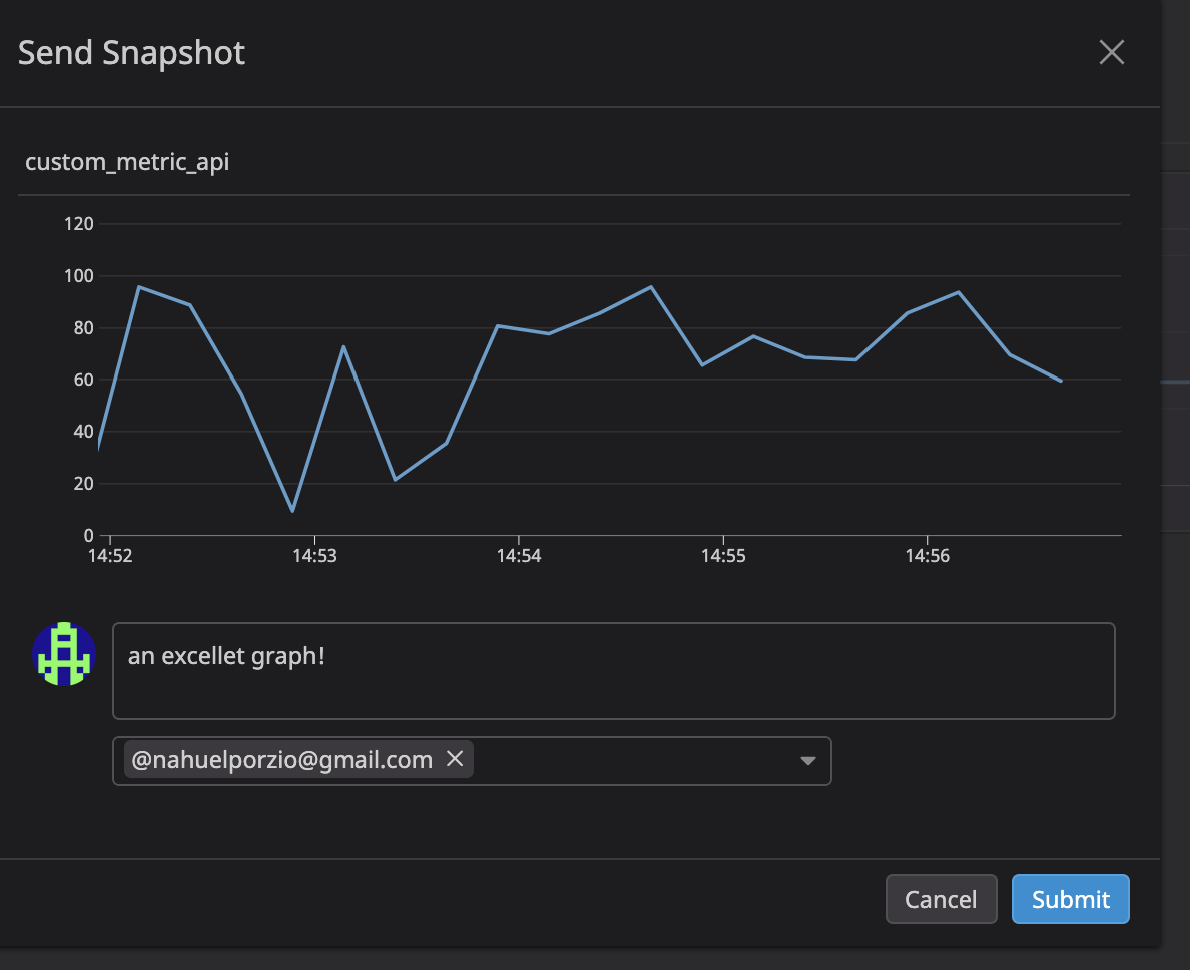

+ +## 5) Sharing snapshot + +Here based on the wording of the exercise I wasn't sure that it was possible to share a snapshot of the whole timeboard, or only a specific graph. + +After reading trough https://docs.datadoghq.com/metrics/explorer/#snapshot I deduced that it needs to be a graph, and shared it with myself:
+ +![image](https://user-images.githubusercontent.com/30311249/153604306-fc39666f-dc6d-49ec-8fc1-955cc46acc52.png) + +* NOTE - @ notation didn't work here for me, could it be that some setting is off? or perhaps it just doesn't work like that any longer? + +
+ +* > Bonus Question: What is the Anomaly graph displaying?
+* Bonus Answer: It overlaps the metric with the expected trayectory (I assume based on previous behaviour) in gray, together with the unexpected spikes in red (as in, anything deviating off the gray normal-behaviour reference). + +

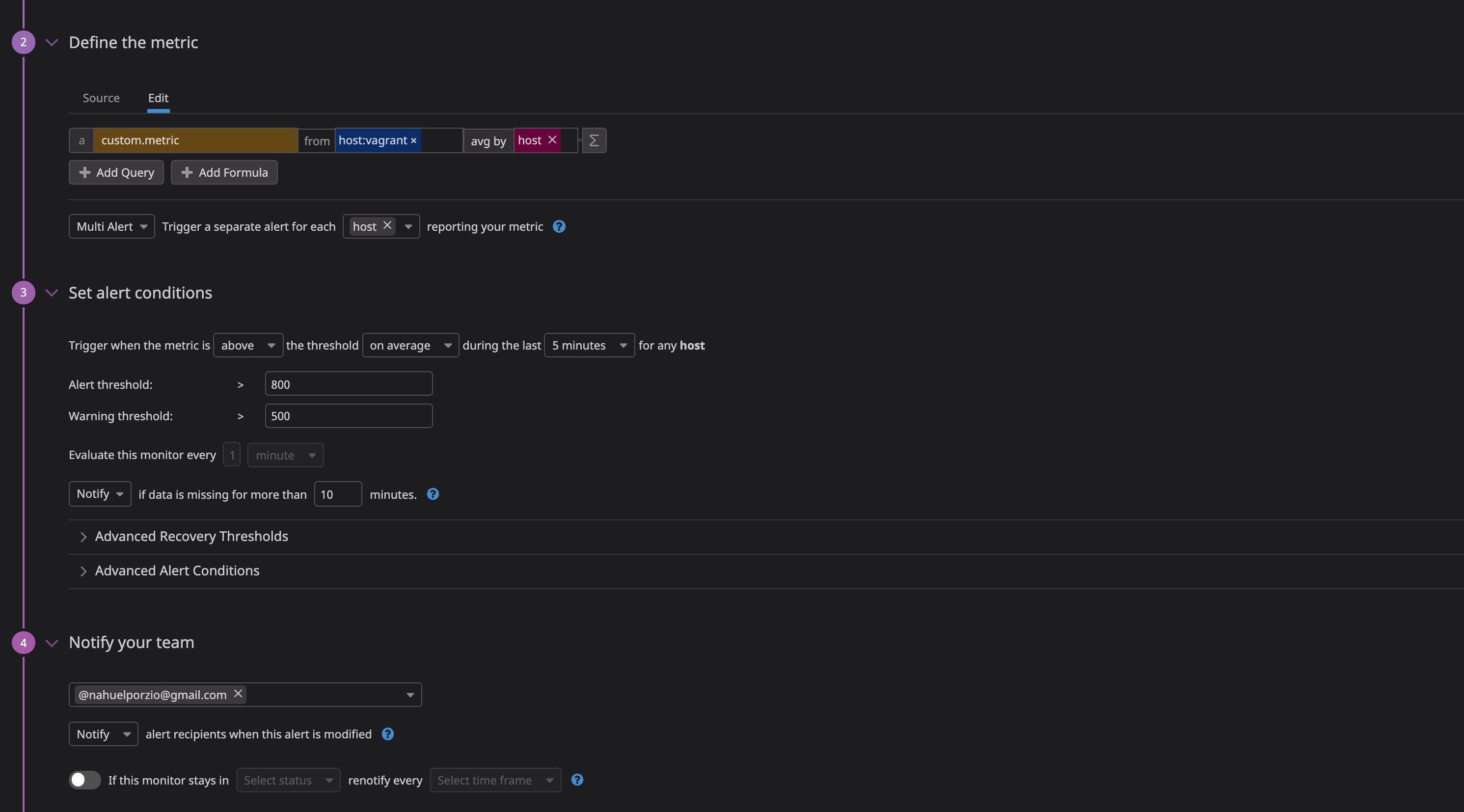

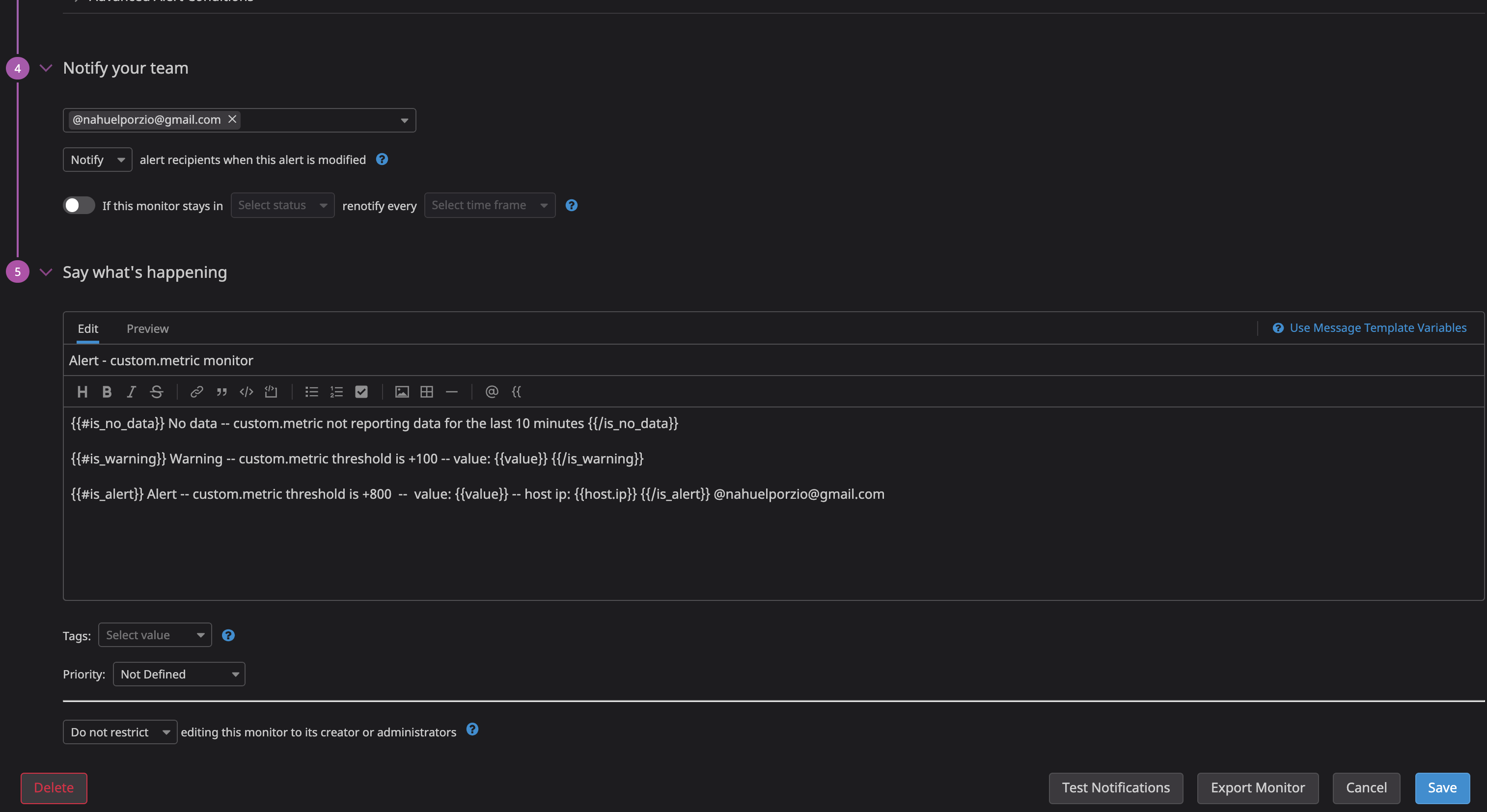

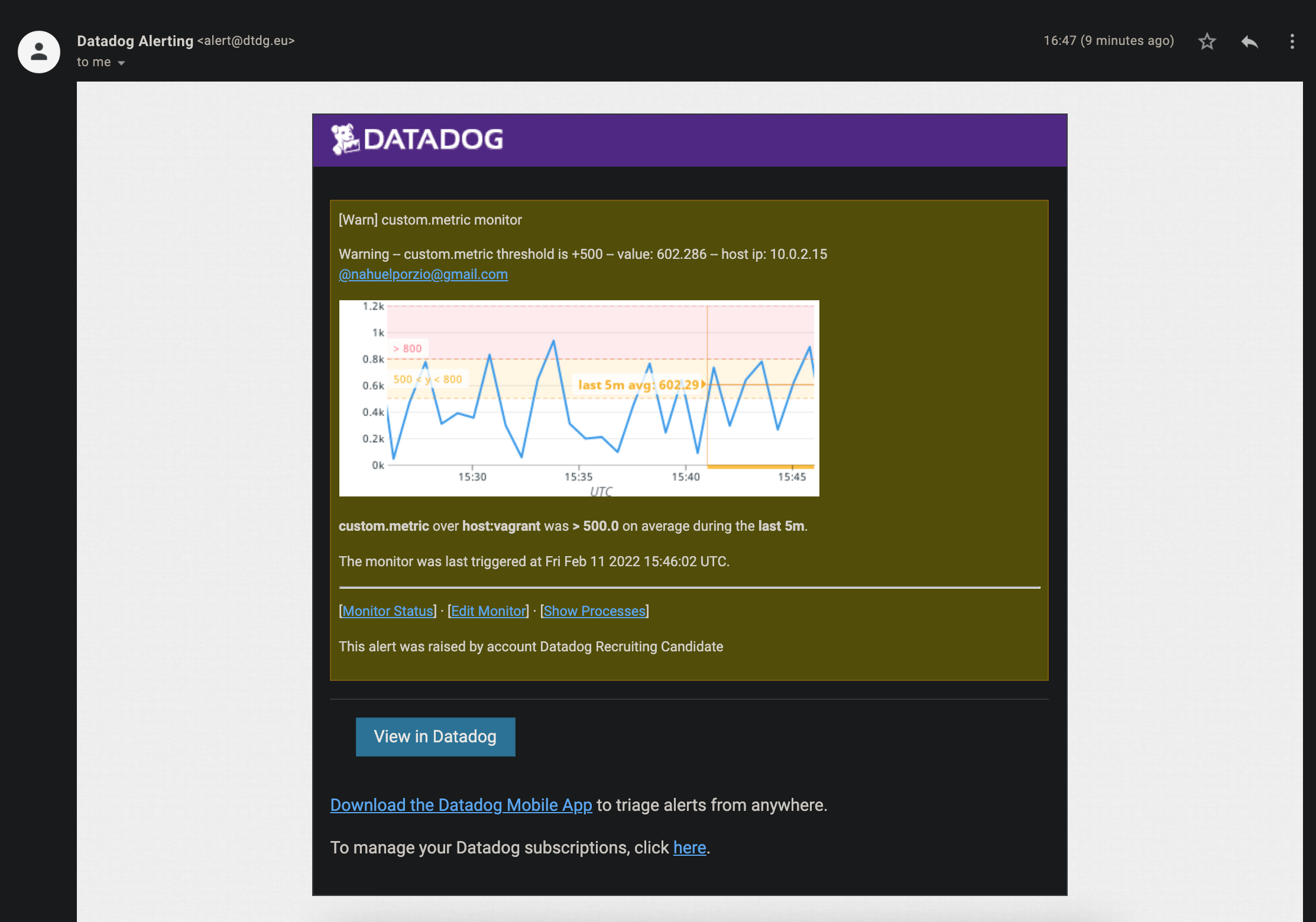

+ +## 6) Creating alert-monitor + +Based on the given specs, I created the following monitor https://app.datadoghq.eu/monitors/4399442 with the configuration shown below. + +![image](https://user-images.githubusercontent.com/30311249/153611080-e04a66c4-fcc8-4a66-926a-e73054adf306.png) + +![image](https://user-images.githubusercontent.com/30311249/153615213-c6eb5ba8-ac9c-4d41-82af-d323cbd2ff35.png) + +-Email screenshot +![image](https://user-images.githubusercontent.com/30311249/153624763-5f22d8d5-8924-4c73-8085-c515ee99b91d.png) + +

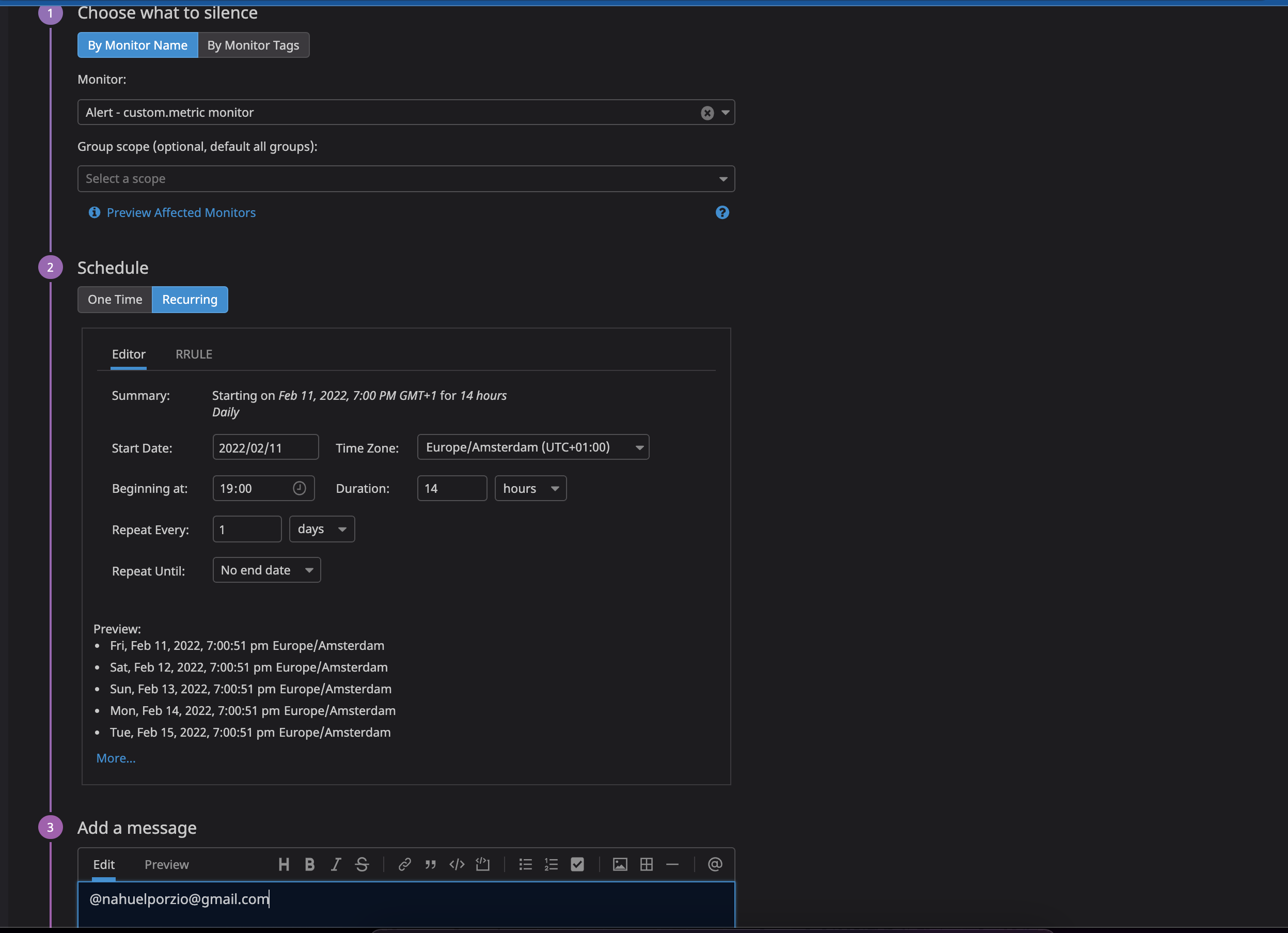

+ + +* Scheduling downtime + +I added the following downtime items: +
+ +-https://app.datadoghq.eu/monitors/downtimes?id=94331716 +![image](https://user-images.githubusercontent.com/30311249/153618084-09daa217-5a34-4dad-ae6a-61c1884e59f9.png)

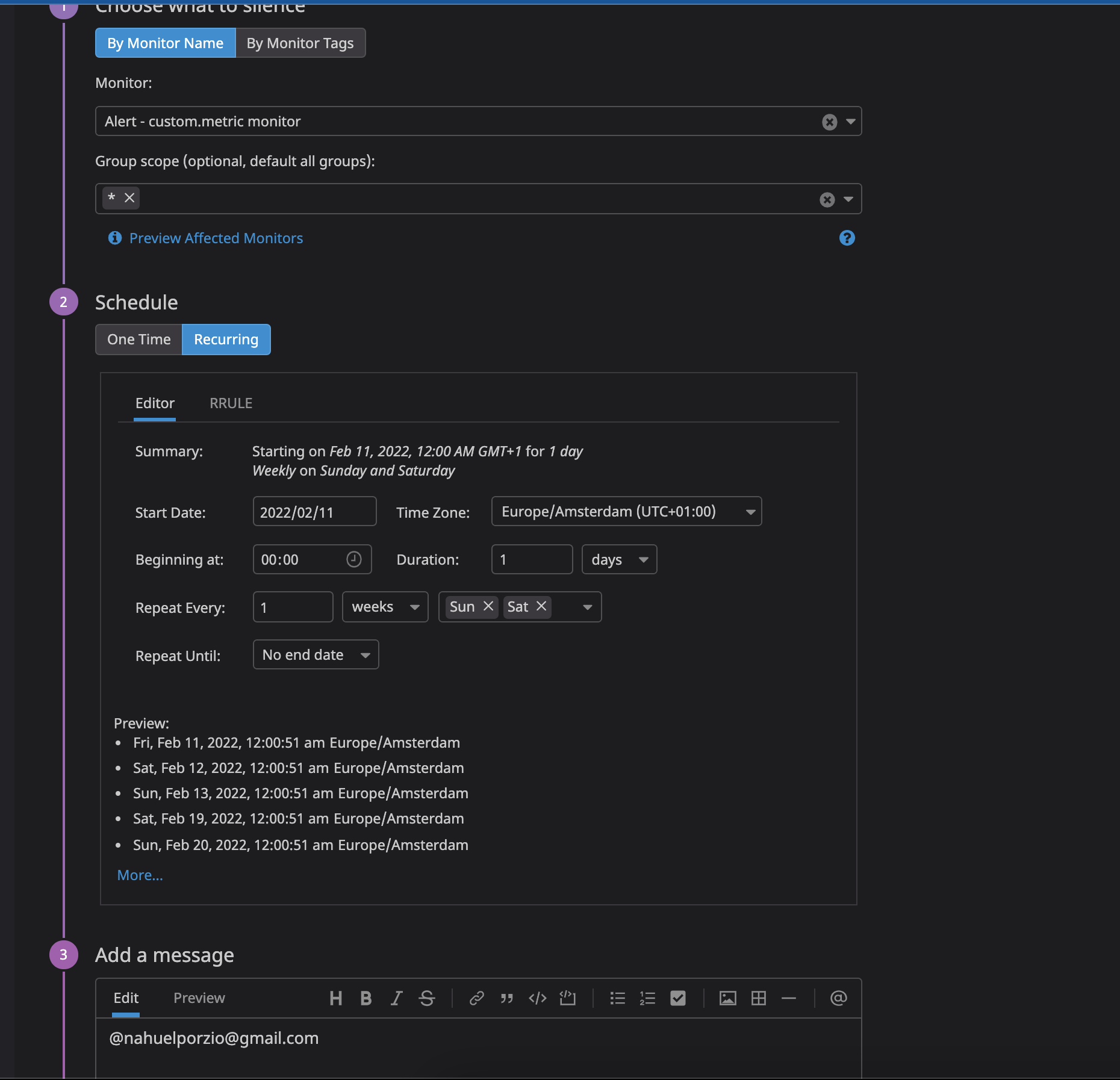

+ +-https://app.datadoghq.eu/monitors/downtimes?id=94333243 +![image](https://user-images.githubusercontent.com/30311249/153618916-29538669-ccad-4322-968a-36cd80338995.png)

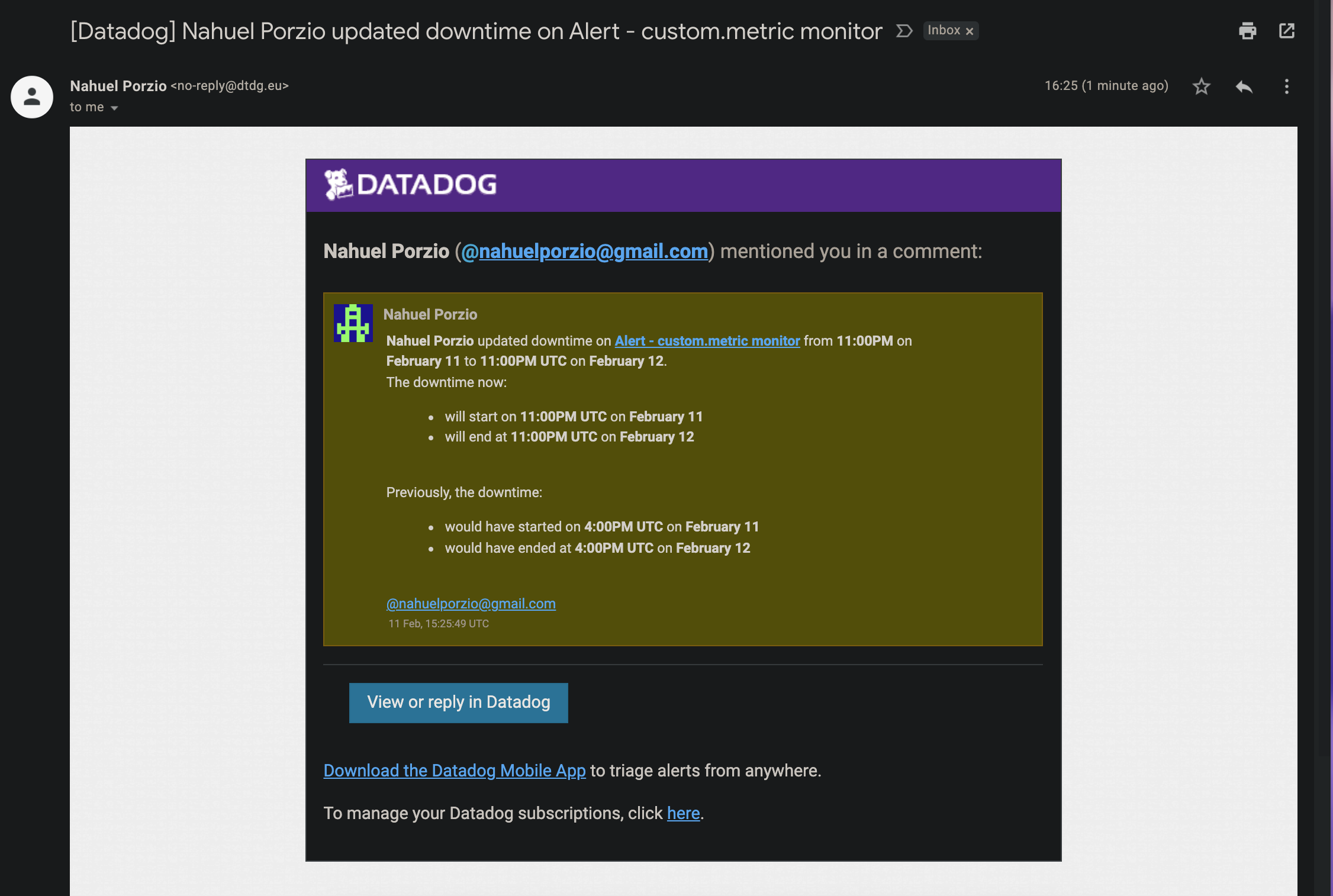

+ +-Email screenshot +![image](https://user-images.githubusercontent.com/30311249/153619673-0ca9ffbf-50a6-4232-aa27-61520003253f.png)
+ + +_____ +
+ + +## 7) Collecting APM data + +
+ +As per https://docs.datadoghq.com/tracing/setup_overview/setup/python I enabled APM-tracing in the vagrant vm +``` +# Edit config +sudo nano /etc/datadog-agent/datadog.yaml + +# Content +set apm_config: true + +# Restart service +sudo service datadog-agent restart +``` + +
+ +After resolving some dependencies with python/pip I was able to install ddtrace. +

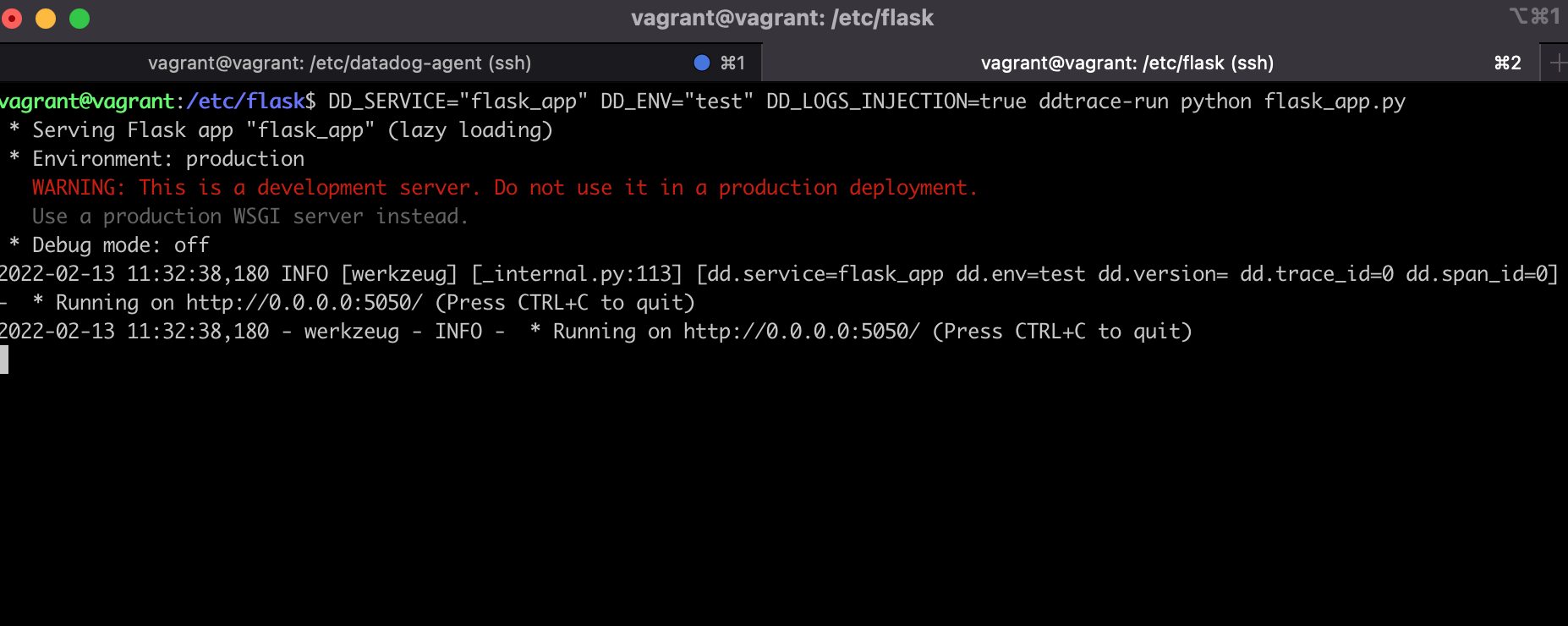

+Then I stored the flask-app under ```/etc/flask/flask_app.py``` and ran it as advised in the docs.
+ +```DD_SERVICE="flask_app" DD_ENV="test" DD_LOGS_INJECTION=true ddtrace-run python flask_app.py``` +
+![image](https://user-images.githubusercontent.com/30311249/153751051-dd70e415-f787-4c0e-b781-4751a0c86523.png) +
+In order to create some visible activity in the service I executed this simple unix-script a couple of times to generate some _visits_: +``` +#!/bin/bash + +for i in {1..500} +do + curl -X get http://0.0.0.0:5050/ +done +``` +

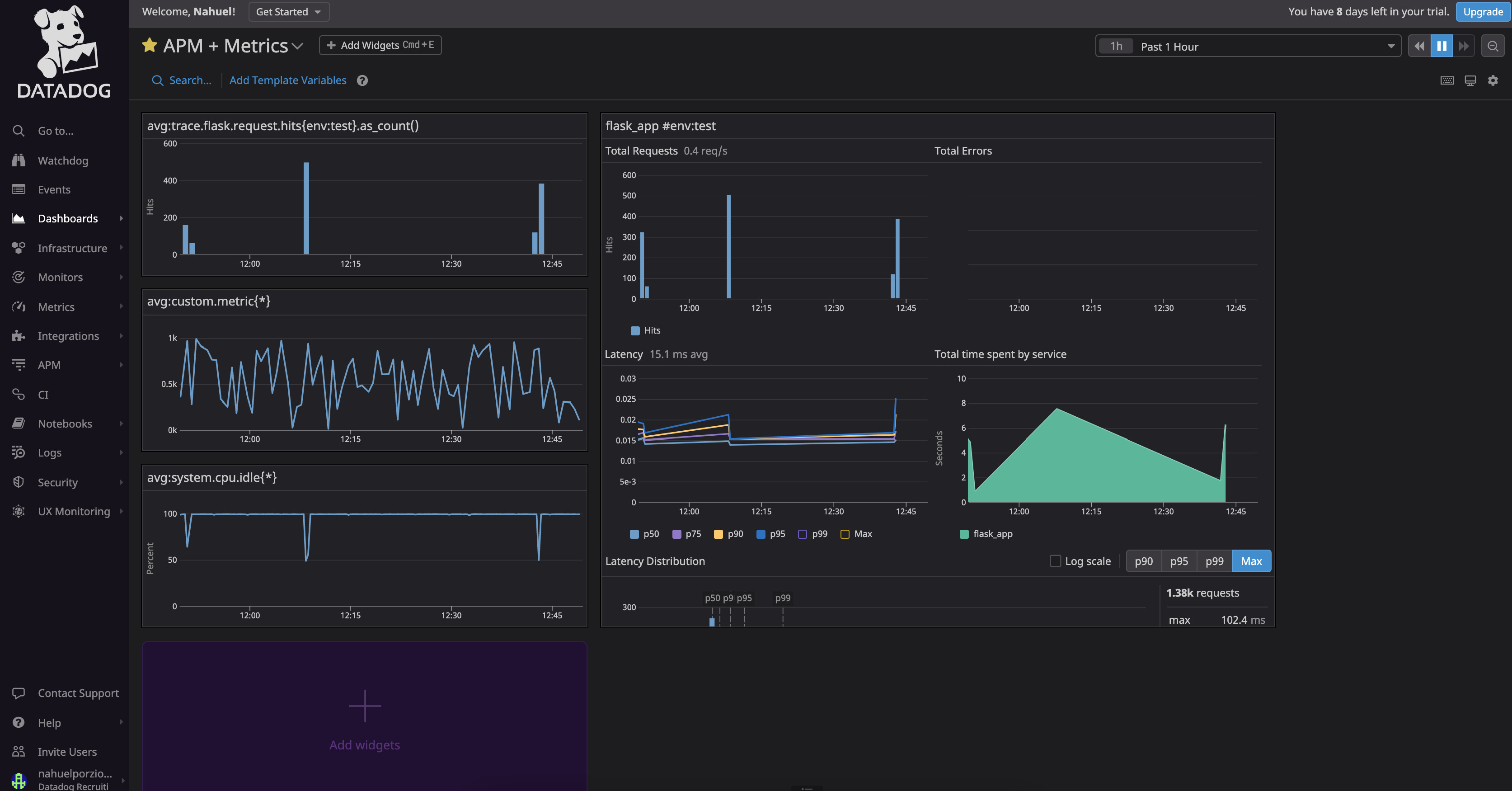

+and proceeded as requested to create the following dashboard with some specific APM stats and standard cpu-metrics https://app.datadoghq.eu/dashboard/gx9-nzj-3zr/apm-metrics
+ +![image](https://user-images.githubusercontent.com/30311249/153751697-cb52d404-c111-4dfa-9327-7c6068ae87dc.png) + +

+ +* > Bonus Question: What is the difference between a Service and Resource?
+* Bonus Answer: Based on my reading through the documentation, in my own words, a service is a process, or a bundle of processes with a specific function in your architecture --while resources are normally the different domains which can be consumed and monitored within or in relation to the service itself. + +
+ + ________ + + ## What's something creative I would do with Datadog? + +Given my environmentalist nature, provided the resources I would use it to trace and map the actual fuel consumption-metrics from every vehicle in a country (or any larger scale for that matter) running on petrol in order to have tangible data to later properly argument regulations and measures accordingly. + +
+ +The idea's premise is that we currently don't have an accurate way of knowing exactly how much a car actually pollutes in a live nor accumulative fashion except for what car-producers claim or governments sample-test. +
+Having _true_ metrics on this would in my view help in realising footprint and take another step forward towards a more sustainable system. +

+_______ +
+ +End + +
+Thanks for taking your time to read my assignment! + +
+ +Nahuel Porzio +
